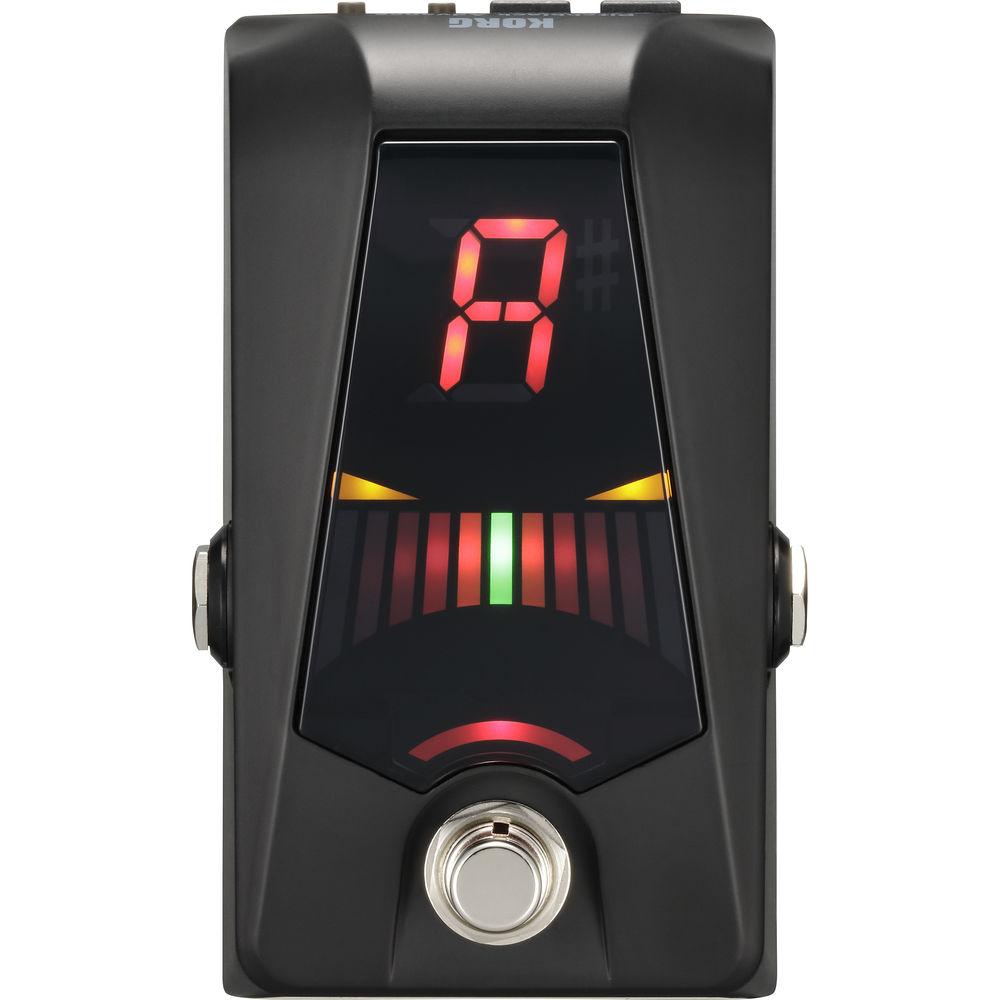

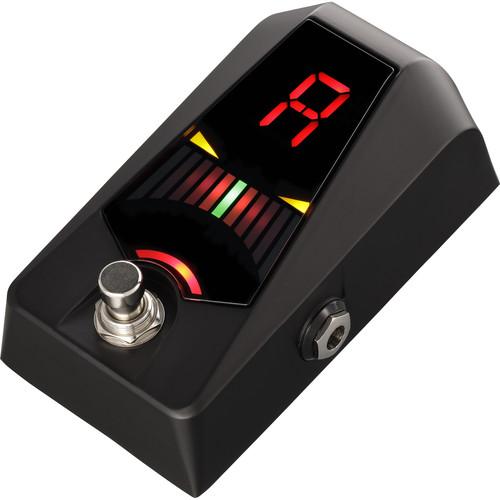

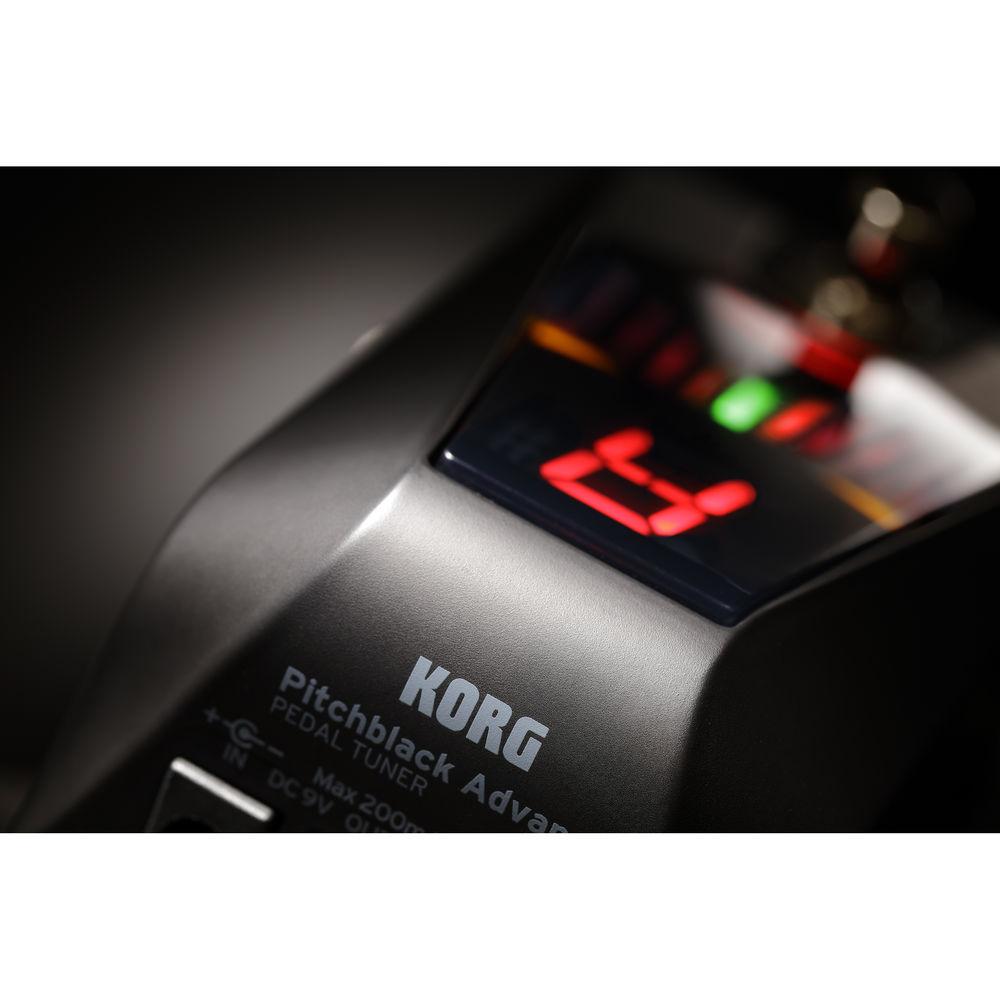

Product description The Pitchblack Advance from Korg builds upon the success of the Pitchblack Mini and is the professional pedal tuner for the gigging musician. The display features high-brightness color LEDs, nearly doubling the size of the note name display and providing amazing visibility. Whether you're on a dimly lit stage or outdoors in bright sunlight, this display will always be easy to read. The pedal offers ultra-high tuning accuracy of +/- 0.1 cents, while the meter display offers four modes to suit your playing style including regular, strobe, half-strobe, and mirror.

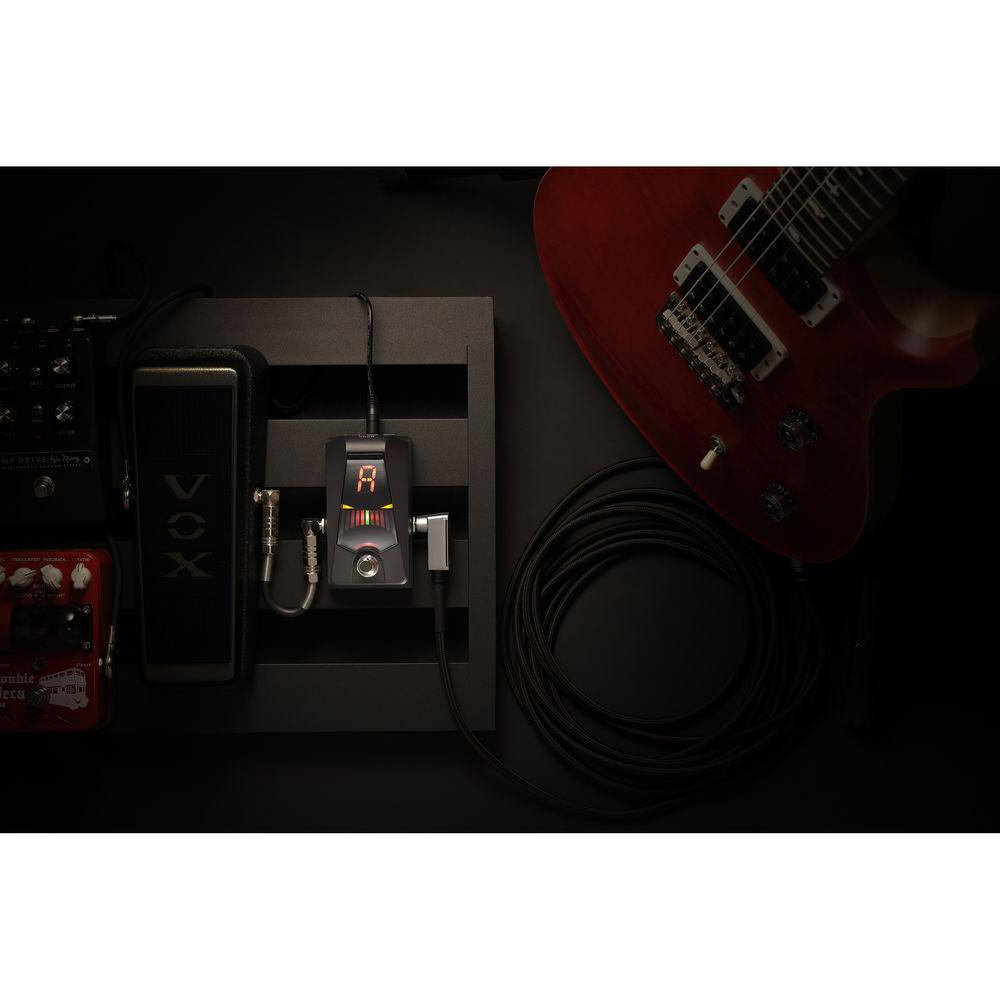

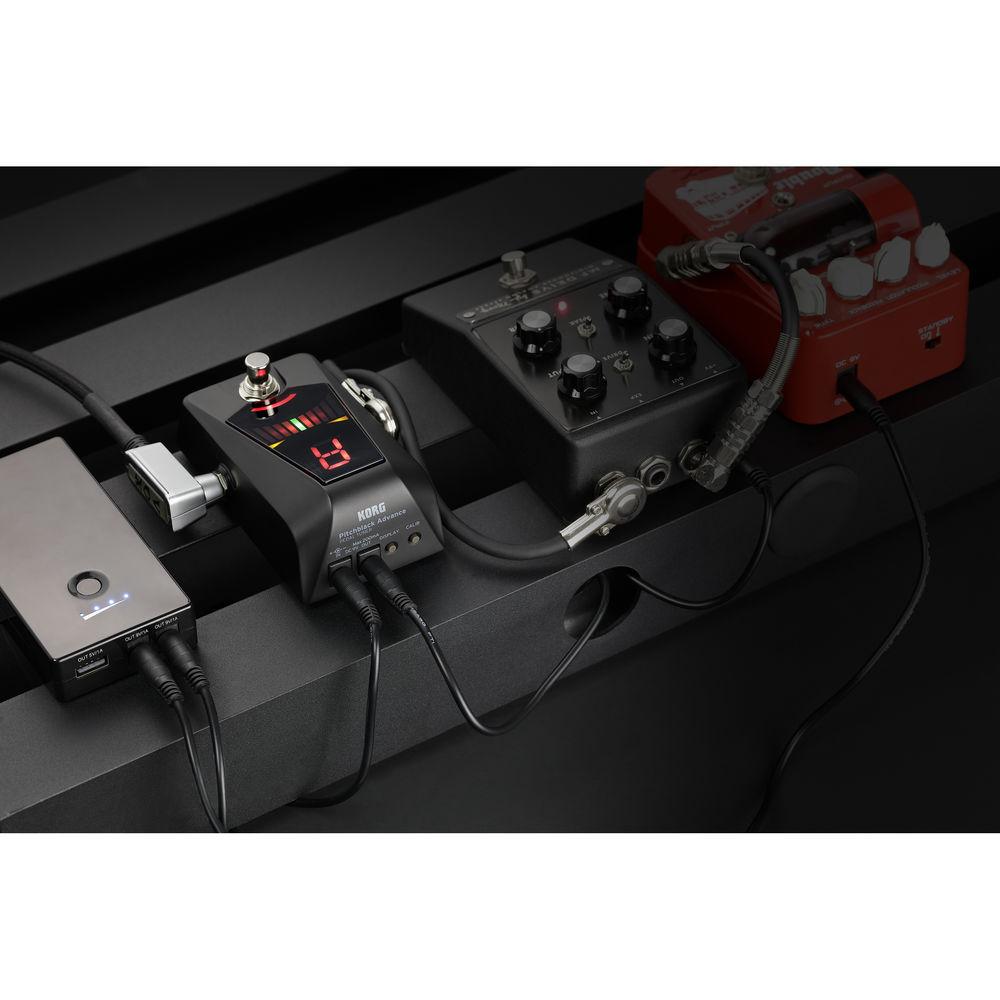

The pedal can be powered via 9V battery, which offers up to a whopping 60 hours of battery life. It can also be integrated into a pedalboard with an optional 9 VDC power supply designed for effect units. Additionally, the unit offers a 9 VDC power pass-thru that can power an additional pedal. The true bypass allows the signal of your instrument to pass through without affecting the sound. The Pitchblack Advance ships with one 9V battery. -
- Advanced design with a highly visible display
- Ultra-high tuning accuracy of +/- 0.1 cents
- Four meter display modes
- Regular: An LED on the right will light up if the pitch is high, and an LED on the left will light up if the pitch is low
- Strobe: The LEDs light up, running from left to right if the pitch is high and from right to left if the pitch is low
- Half-Strobe: The LEDs on the right will strobe if the pitch is high, and the LEDs on the left will strobe if the pitch is low. When the pitch is in tune, only the center LED is lit
- Mirror: Tune your instrument so that the two illuminated LEDs in the left and right side of
the LED meter coincide in the center. The farther your instrument is from the correct pitch, the farther apart the illuminated LEDs will be
- True bypass has no effect on the sound
- DC out allows parallel connection for powering other pedals
- Eliminates noise caused by using a power supply
- Achieves up to 60 hours of battery life
In the Box Korg Pitchblack Advance Pedal Tuner 9V Battery Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Pitchblack Advance Pedal Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg PBAD Specs | Scale | 12-note equal temperament | | Detection Range | E0 (20.60 Hz) - C8 (4186 Hz) | | Calibration Range | A4 = 436 - 445 Hz (1 Hz steps) | | Detection Accuracy | +/- 0.1 cent | | Input Impedance | 1 MOhm (tuner on) | | Display Modes | Regular, strobe, half-strobe, mirror | | Connectors | Input: Mono 1/4" / 6.35 mm jack
Bypass: Mono 1/4" / 6.35 mm jack

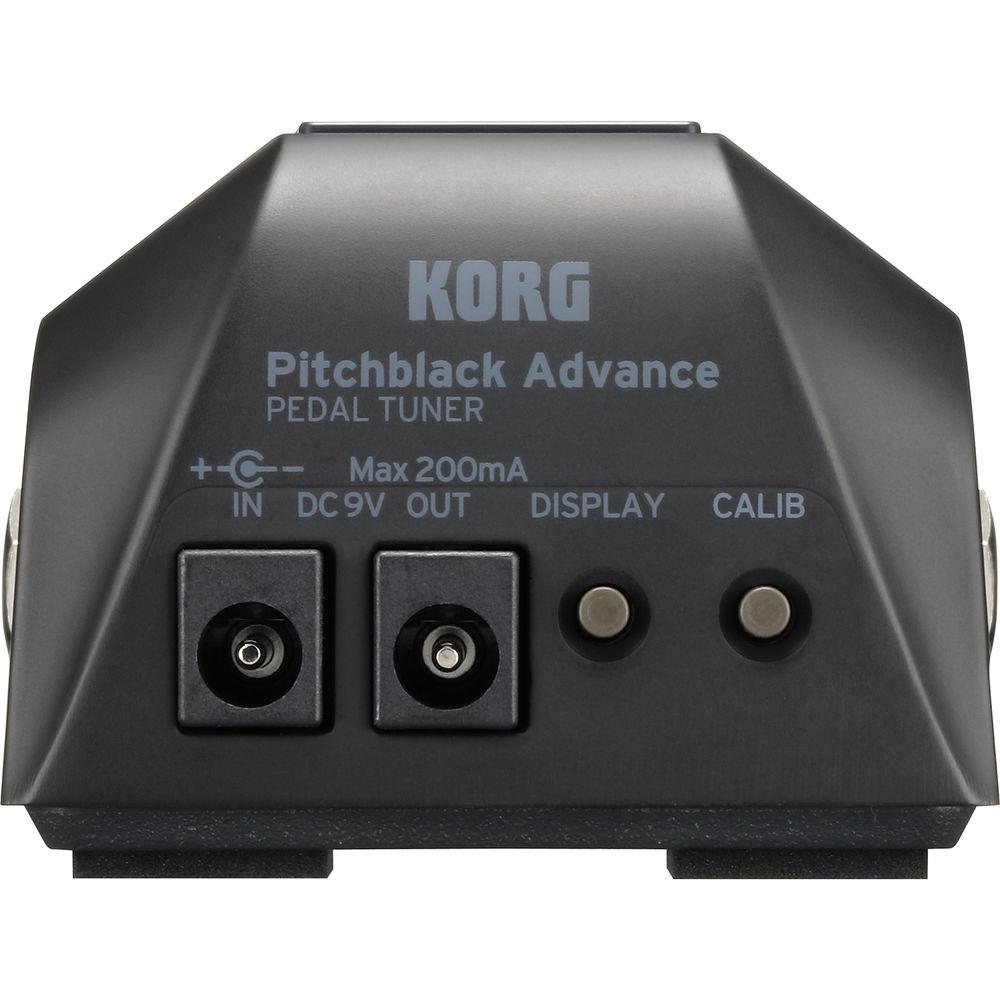

Power: 9 VDC In, 9 VDC Out | | Power Supply | 1 x 9 V type battery (6F22/6LR61)
AC Adapter: 9 VDC, 600 mA, pin-negative (sold separately) | | Battery Life | Approximately 60 hours (6LR61, A4 continuous input, tuner on, display mode: Regular mode)
Approximately 30 hours (6F22, A4 continuous input, tuner on, display mode: Regular mode) | | Current Consumption | Maximum 20 mA | | Dimensions (W x D x H) | 2.7 x 4.4 x 1.9" / 68.0 x 111.0 x 47.0 mm (including rubber feet) | | Weight | 9.1 oz / 257.0 g (including battery) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 7.4 x 3.5 x 2.5" |
