User Manual for Korg Pitchblack Custom Pedal Tuner Click to enlarge the picture
Contents of the user manual for the Korg Pitchblack Custom Pedal Tuner
- Product category: Tuners Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Tuners
 |
User manual for the Korg Pitchblack Custom Pedal Tuner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

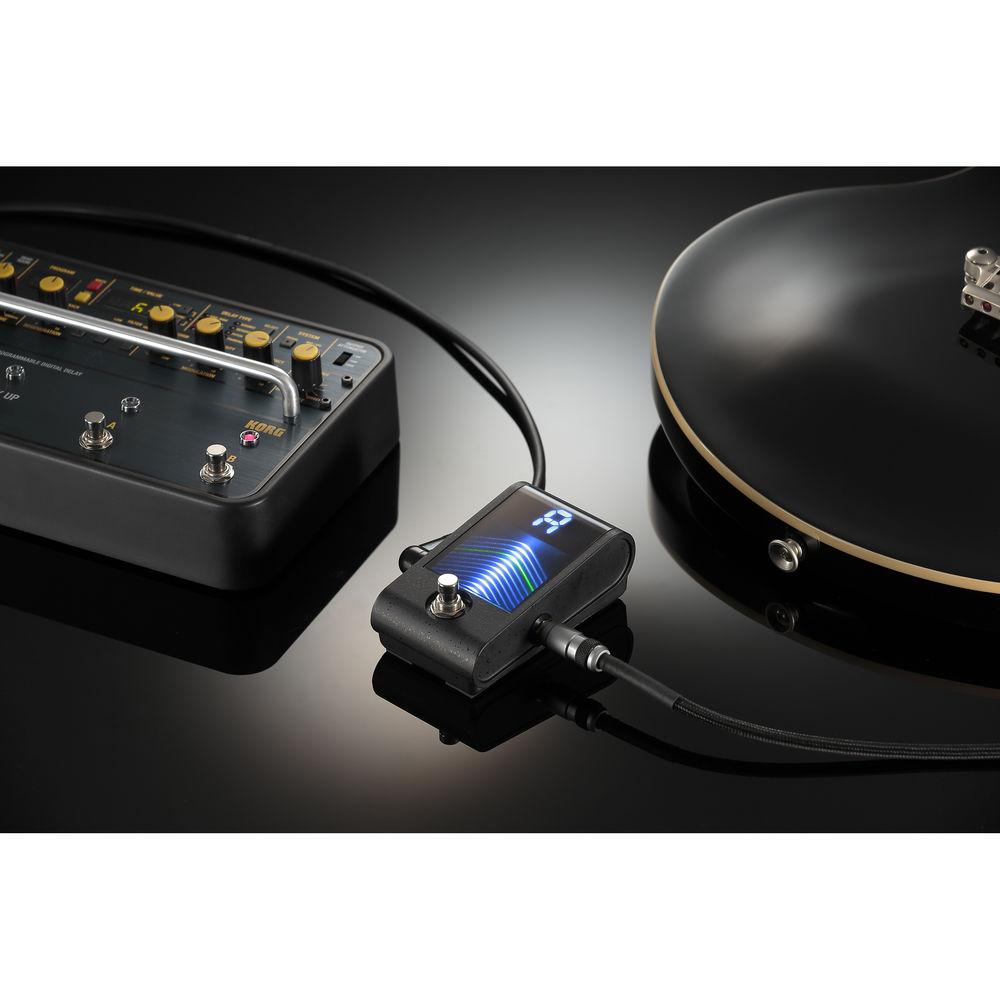

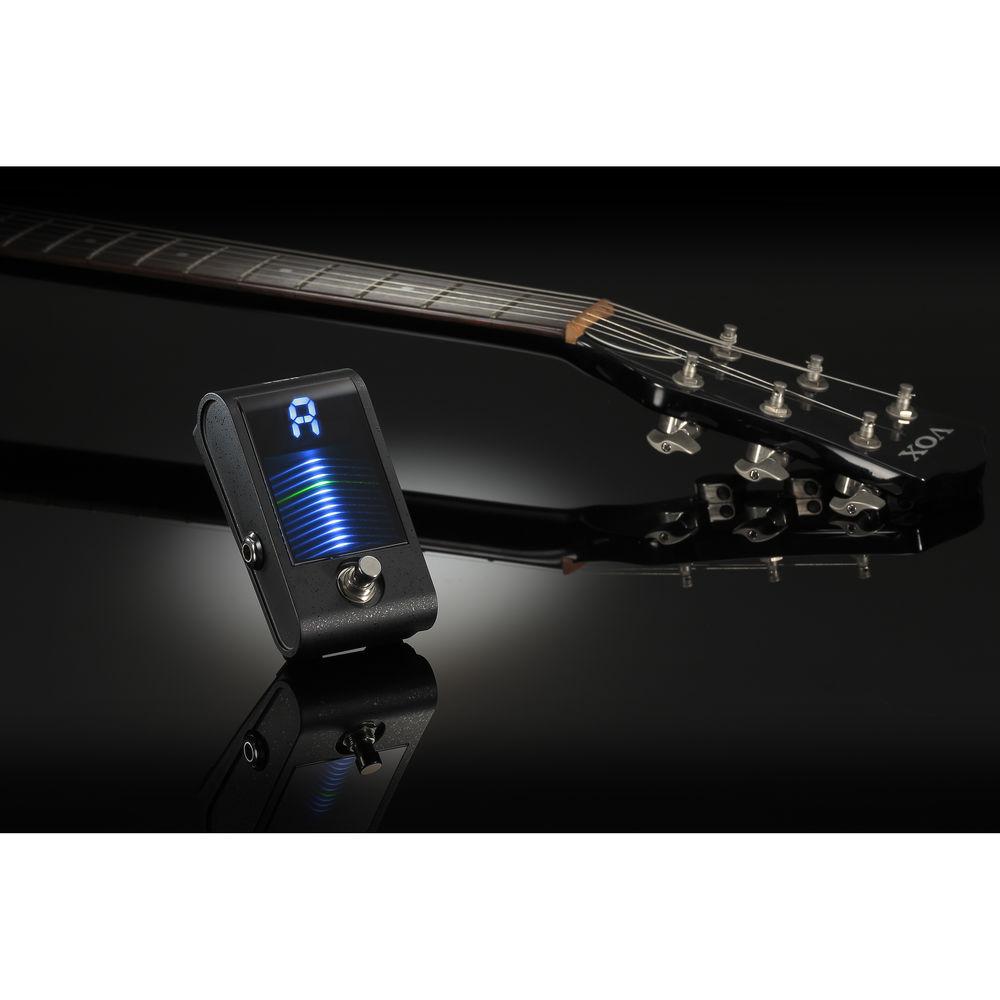

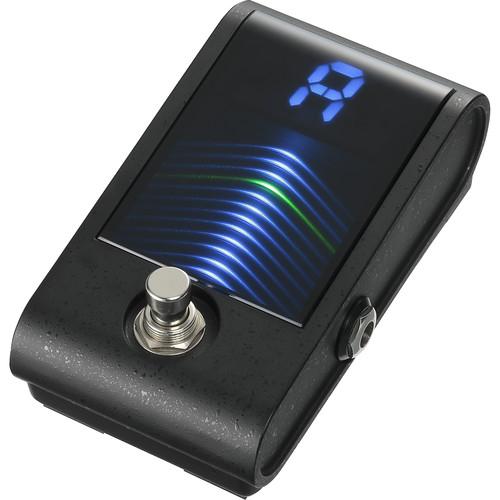

Product description Giving you the ability to customize your tuning with its four meter display modes, the black Pitchblack Custom Pedal Tuner from Korg offers a +/-0.1 cent detection range for accurate tuning, for both electric guitars and basses. Thanks to its high-visibility screen, and durable aluminum die-cast construction, Korg's tuner is a valuable addition to your pedalboard.

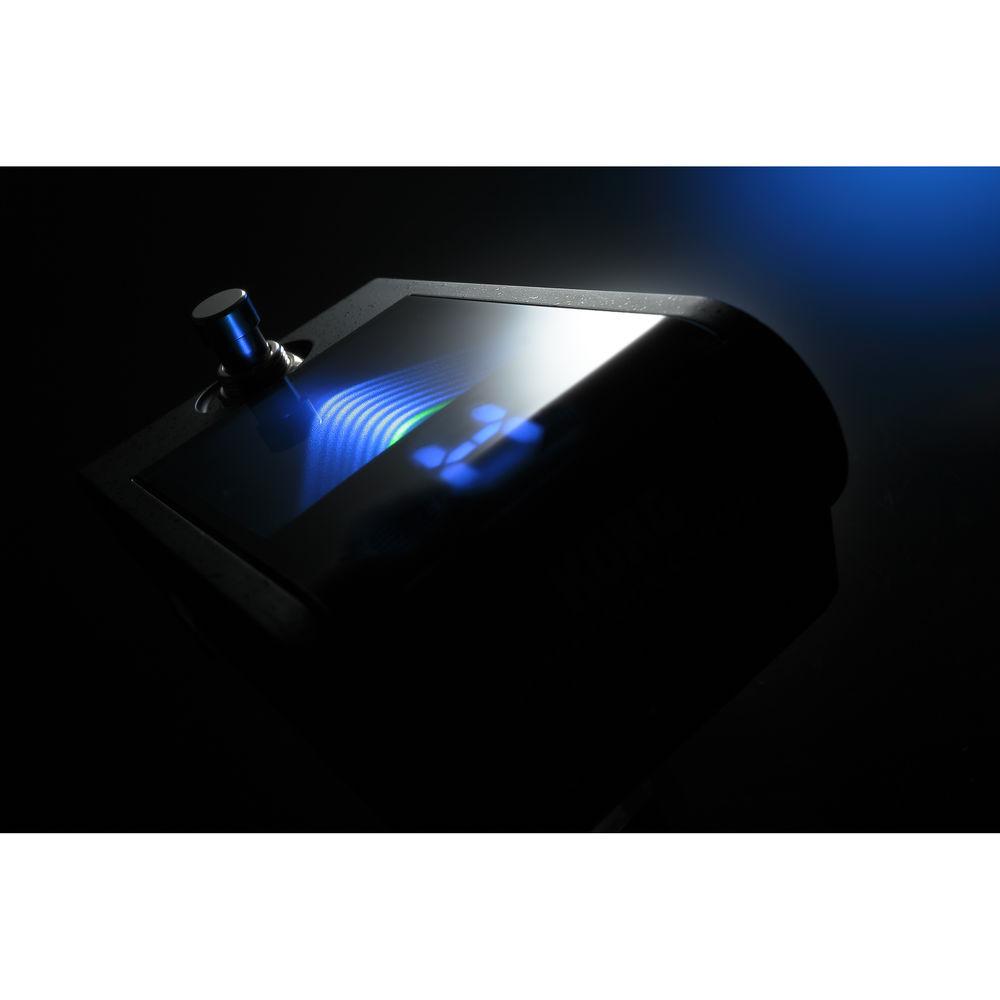

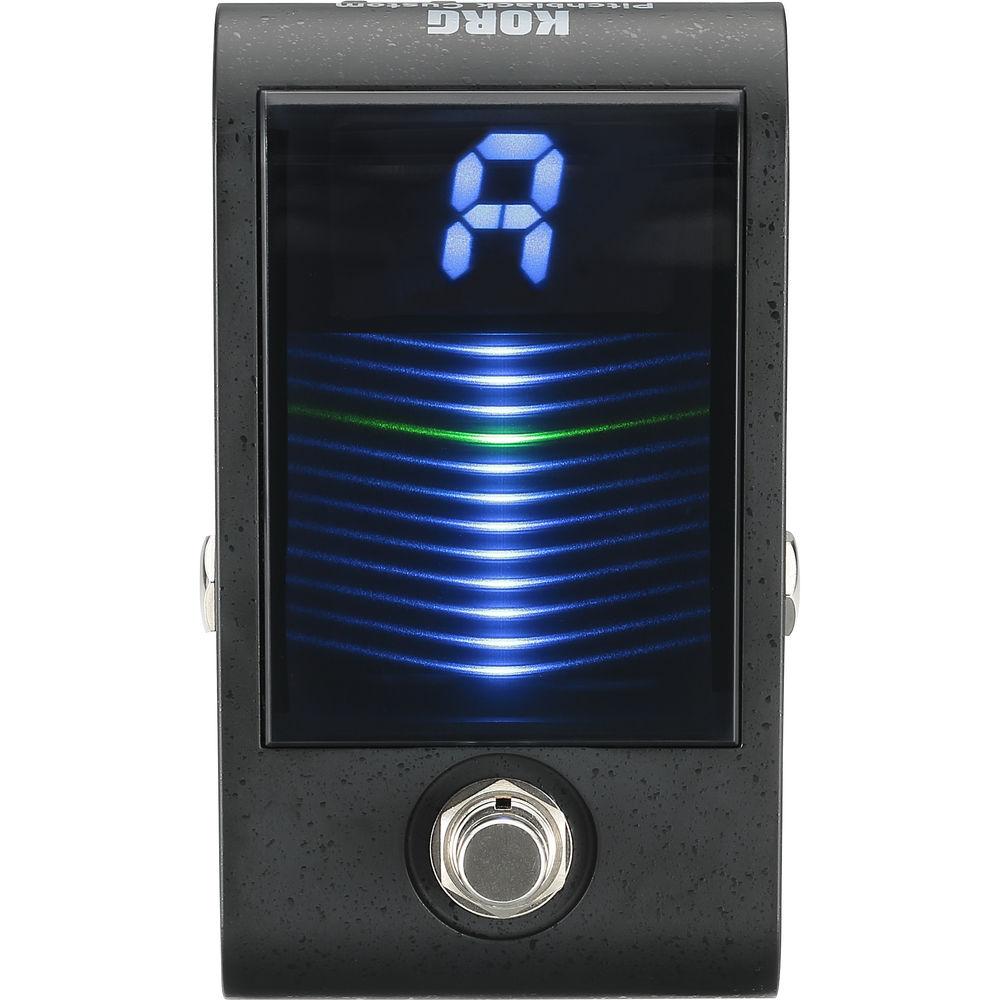

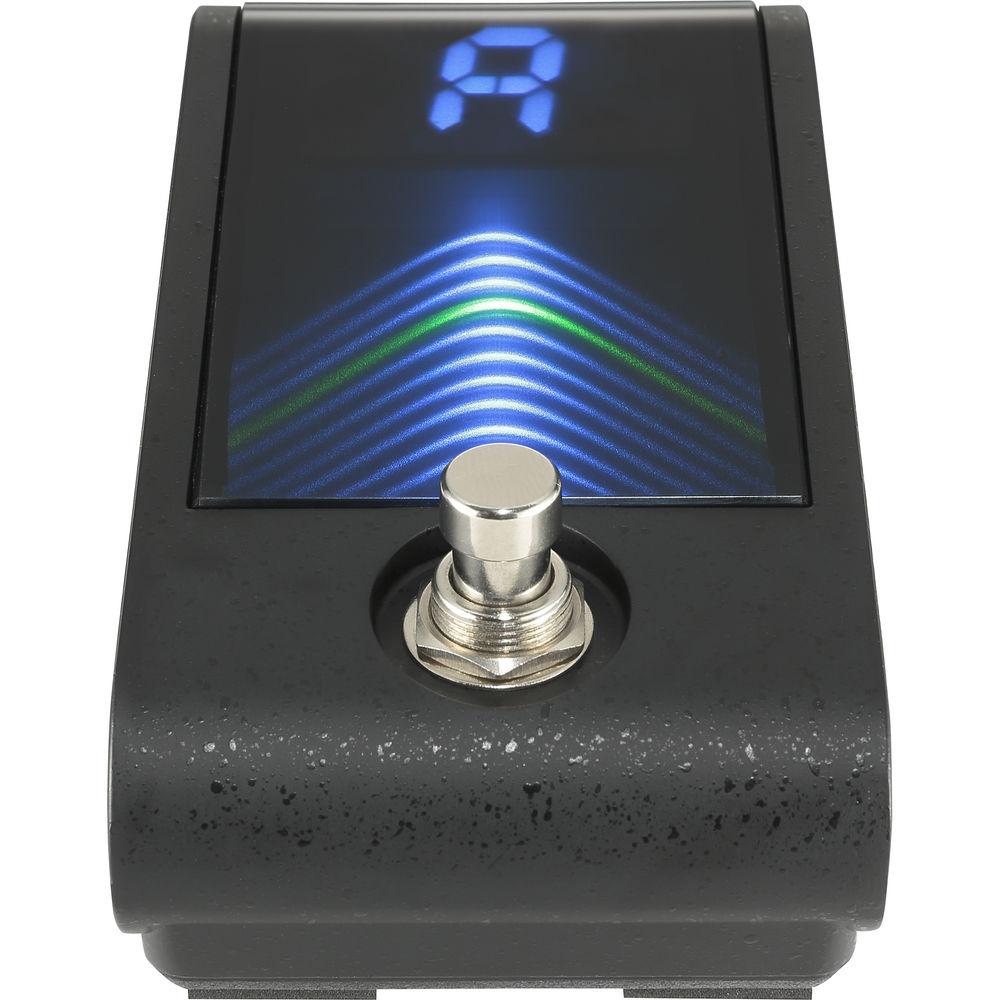

The tuner indicates note name and tuning change with bright LED movement displayed on a vertical 3D visual meter, making pitch name and difference easily identifiable. With a choice of four display modes, Regular A, Strobe, Half Strobe, and Regular B (in which the meter rises by being stacked from bottom to top toward a reference line), you can customize your tuning process. Also, a broader pitch range is provided for the lower end, which can often be difficult to tune on standard tuners.
The Pitchblack's true bypass circuitry leaves the input signal unchanged when the tuner is off, delivering a transparent sound; and, since the input sound is muted when the tuner is on, it is useful in live performance situations. Also, its parallel DC output can deliver clean power to other effects pedals when using an additional power adapter (available separately).
Battery life is approximately 15 hours when using zinc-carbon batteries, and approximately 30 hours when using alkaline batteries. In the Box Korg Pitchblack Custom Pedal Tuner (Black) 9V Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Pitchblack Custom Pedal Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg PBCS Specs | Scale | 12-note equal temperament | | Range | Detection: E0 (20.60 Hz) to C8 (4.186 kHz)

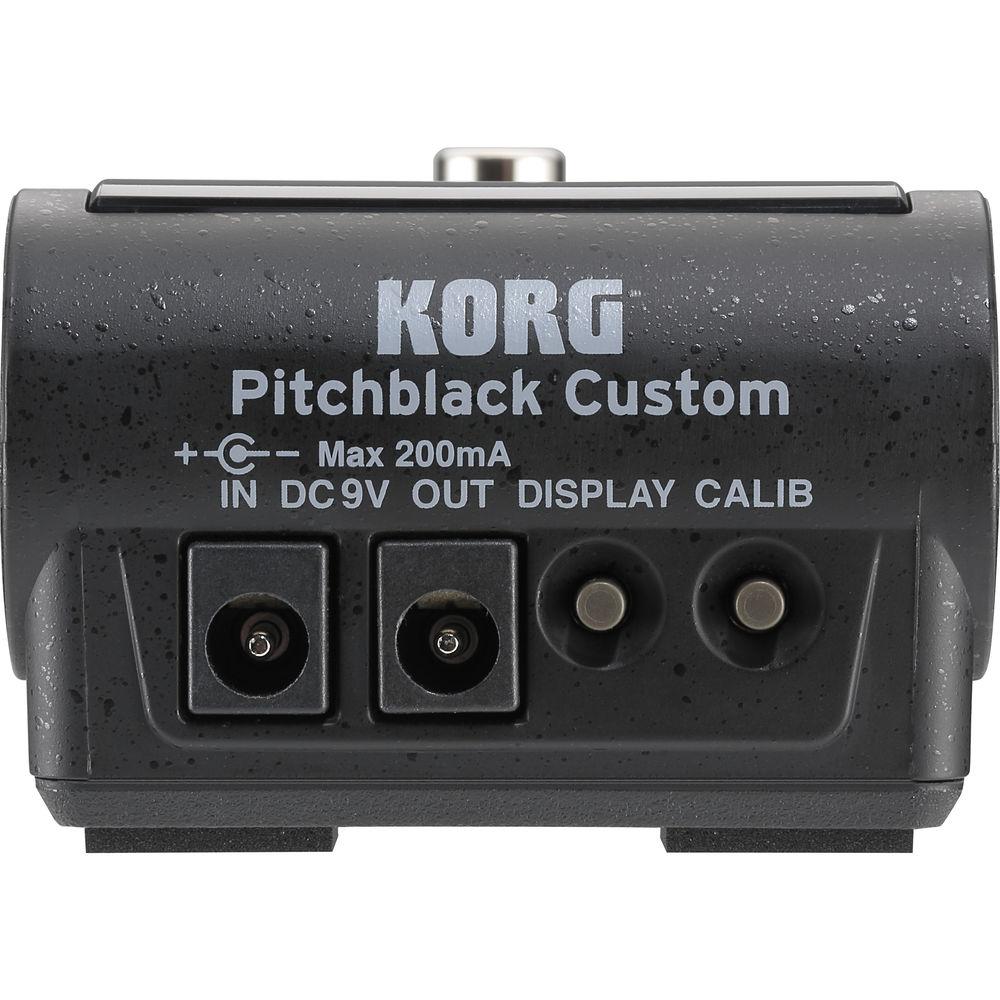

Calibration: 436-445 Hz (1 Hz steps) | | Detection Accuracy | +/-0.1 cent | | Input Impedance | 1 MOhms (when tuner is on) | | Connectors | Input: 1 x mono 1/4" jack
Bypass: 1 x mono 1/4" jack 1 x 9V output jack (optional use for powering external pedals) | | Power Supply | 1 x 9V battery
1 x 9V AC adapter (at least 600 mA) | | Battery Life | Approximately 15 hours (A4 continuous input, tuner on, display mode Regular A, using a 9V zinc-carbon battery) | | Consumption Current | Maximum 40 mA | | Chassis | Aluminum die-cast | | Dimensions (W x D x H) | 2.7 x 4.5 x 1.8" / 6.8 x 11.3 x 4.5 cm | | Weight | Including battery: 0.6 lb / 0.3 kg | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 7.3 x 3.3 x 2.4" |
