User Manual for Korg Pitchblack Mini Pedal Tuner Click to enlarge the picture
Contents of the user manual for the Korg Pitchblack Mini Pedal Tuner
- Product category: Tuners Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Tuners
 |
User manual for the Korg Pitchblack Mini Pedal Tuner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

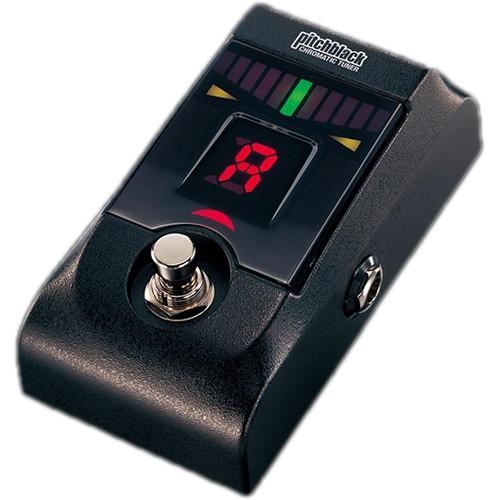

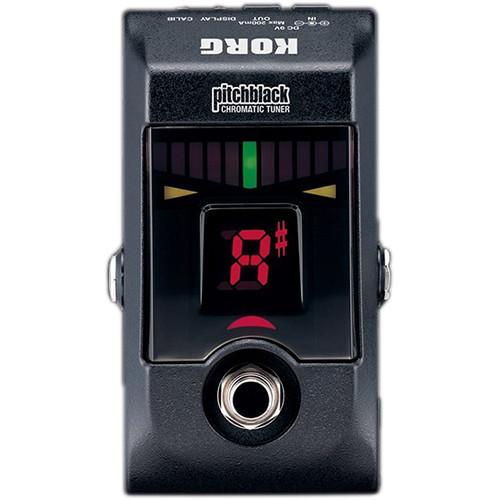

Product description The Pitchblack Mini from Korg is a professional pedal tuner for the gigging musician. Despite the pedal's "micro" size, the display features a large 7-segment color LED, a large note indicator, and a smooth moving-meter indicator to provide excellent visibility on the darkest stages. Additionally, the Pitchblack Mini includes stabilizers to prevent the pedal from overturning.
The pedal supports battery operation, which further expands its mobile application and flexibility. It can also be integrated into a pedalboard with 9 VDC power supplies designed for effect units. The true bypass allows the signal of your instrument to pass through without affecting the sound. The Pitchblack Mini ships with two CR2032 Lithium batteries. -

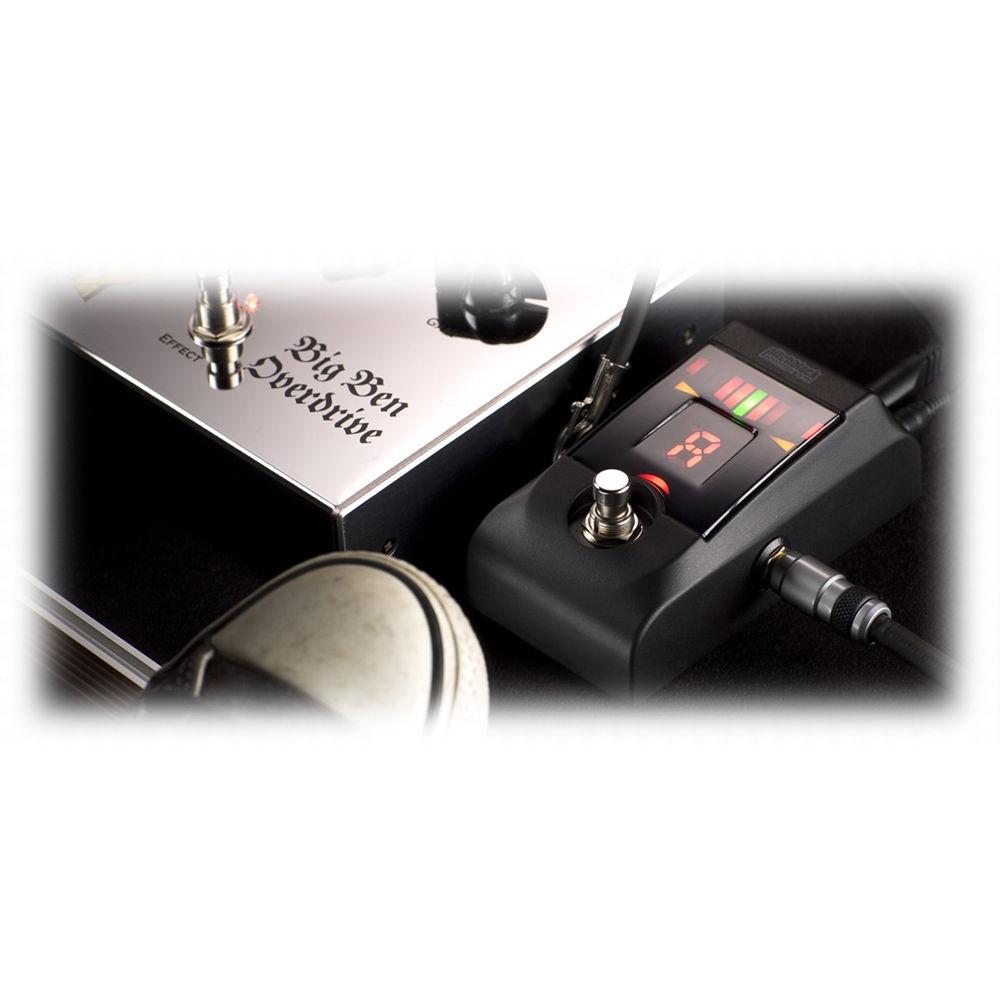

- Mini size for easy installation in your effect board
- Large high-visibility display with easily readable note-name indication
- Battery operation is supported
- Stabilizers prevent overturning
- Three meter-display modes including Regular, Strobe, and Half-Strobe
- Ultra-high tuning accuracy of +/- 0.1 cents
- Adjustable calibration
- True bypass has absolutely no effect on the sound
In the Box Korg Pitchblack Mini Pedal Tuner 2 x CR2032 Lithium Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Pitchblack Mini Pedal Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

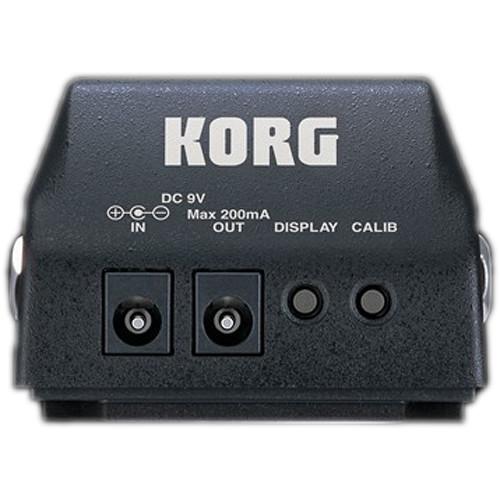

Technical parametersKorg PB01MINI Specs | Scale | 12-note equal temperament | | Detection Range | E0 (20.60 Hz) - C8 (4186 Hz) | | Calibration Range | A4 = 436 - 445 Hz (1 Hz steps) | | Detection Accuracy | +/- 0.1 cent | | Input Impedance | 1 MOhm (tuner on) | | Display Modes | Regular, strobe, half-strobe | | Connectors | Input: Mono 1/4" / 6.35 mm jack
Bypass: Mono 1/4" / 6.35 mm jack
Power: 9 VDC IN | | Power Supply | 2x CR2032 Lithium battery (3 V)
AC Adapter: 9 VDC pin-negative (KA-181 sold separately) | | Battery Life | Approximately 3 hours (A4 continuous input, tuner on, display mode: Regular mode) | | Current Consumption | Maximum 40 mA | | Dimensions (W x D x H) | 1.8 x 3.7 x 1.7" / 45.0 x 93.0 x 43.9 mm (including rubber feet) | | Weight | 4.6 oz / 129.0 g (including battery) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 5.3 x 3.4 x 2.4" |
