User Manual for Korg Pitchblack Pro Rackmount Tuner Click to enlarge the picture
Contents of the user manual for the Korg Pitchblack Pro Rackmount Tuner
- Product category: Tuners Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Tuners
 |
User manual for the Korg Pitchblack Pro Rackmount Tuner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

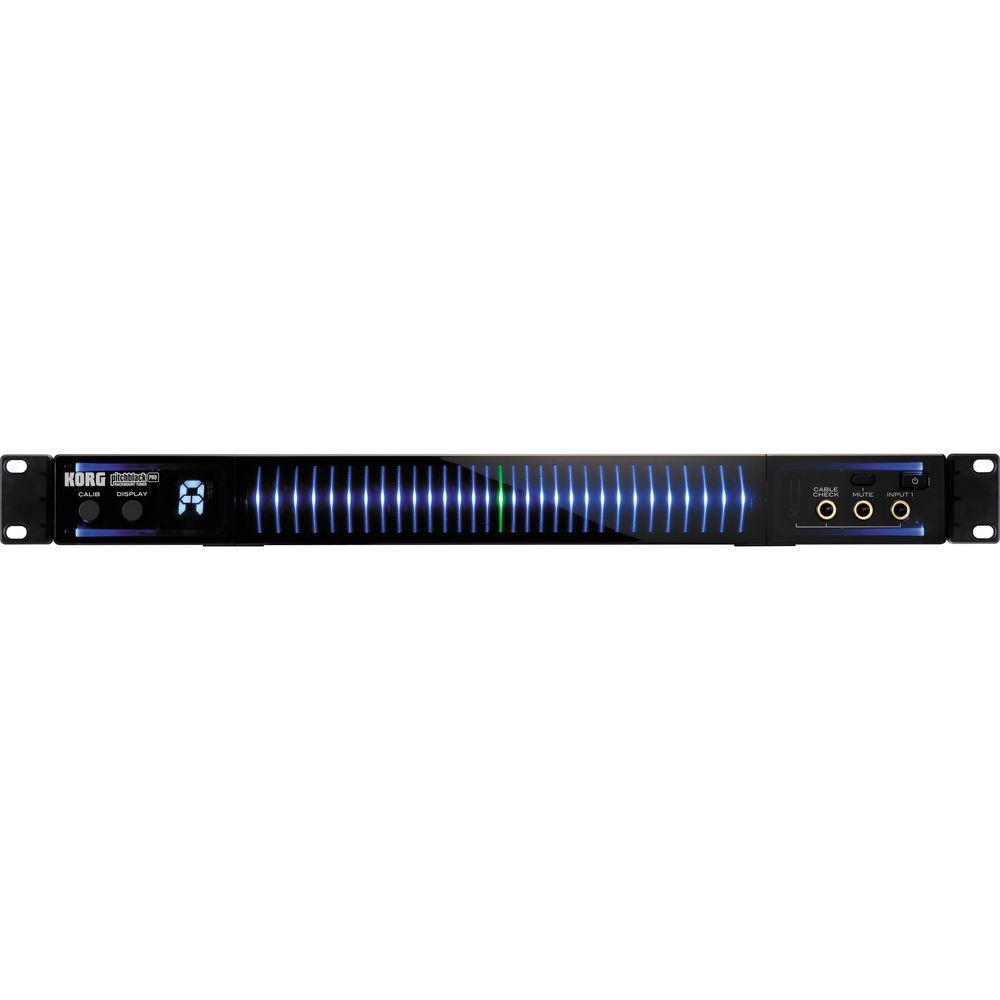

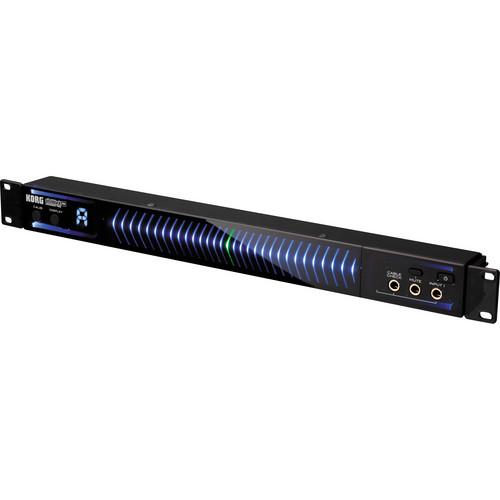

Product description The Pitchblack Pro Rackmount Tuner from Korg is a 1-unit rackmountable tuner with a 3D-style meter and three selectable display modes. While it is designed for rackmount use, its 49mm depth allows it to be used on pedalboards as well. It has both front- and rear-panel 1/4" inputs, a mute function for silent tuning, and a built-in cable tester to help you identify broken cables. The tuner's output is buffered, allowing you to keep the tuner in your signal chain without it altering your tone or changing the quality of your audio. The necessary hardware to rackmount the Pitchblack Pro is included. - Three Meter Display Modes
-
- Regular: As when using a needle-type meter tuner, tune the string so that the LED in the center of the meter is lit up. The illuminated LED will move to the right if the string is sharp, or toward the left if the string is flat
- Strobe: Tune the string so that the LED meter illumination stops flowing. The meter illumination will flow from left to right if the string is sharp or from right to left if the string is flat
- Half-Strobe: Tune the string so that the LED meter illumination stops flowing and only the center LED is lit up. The right side of the LED meter strobes if the string is sharp; the left side strobes if the string is flat. When the pitch is correct, only the center LED will be lit up
In the Box Korg Pitchblack Pro Rackmount Tuner AC Adapter 4 x Rack Screws 4 x Washers 2 x Rackmounting Adapters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Pitchblack Pro Rackmount Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg PB05 Specs | Tuning | 12-note equal temperament | | Detection Range | E0 (20.60 Hz) to C8 (4,186 Hz) sine wave | | Calibration Range | A4 = 436 to 445 Hz (1 Hz steps) | | Detection Accuracy | +/- 1 cent | | Display Mode | Regular / Strobe / Half Strobe | | Input Impedance | 1 MΩ (when tuner is on) | | Connectors | Front-Panel:
1x 1/4" (6.3 mm) mono input 1 jack for guitar/bass
1x 1/4" (6.3 mm) mono mute jack
1x 1/4" (6.3 mm) mono cable check

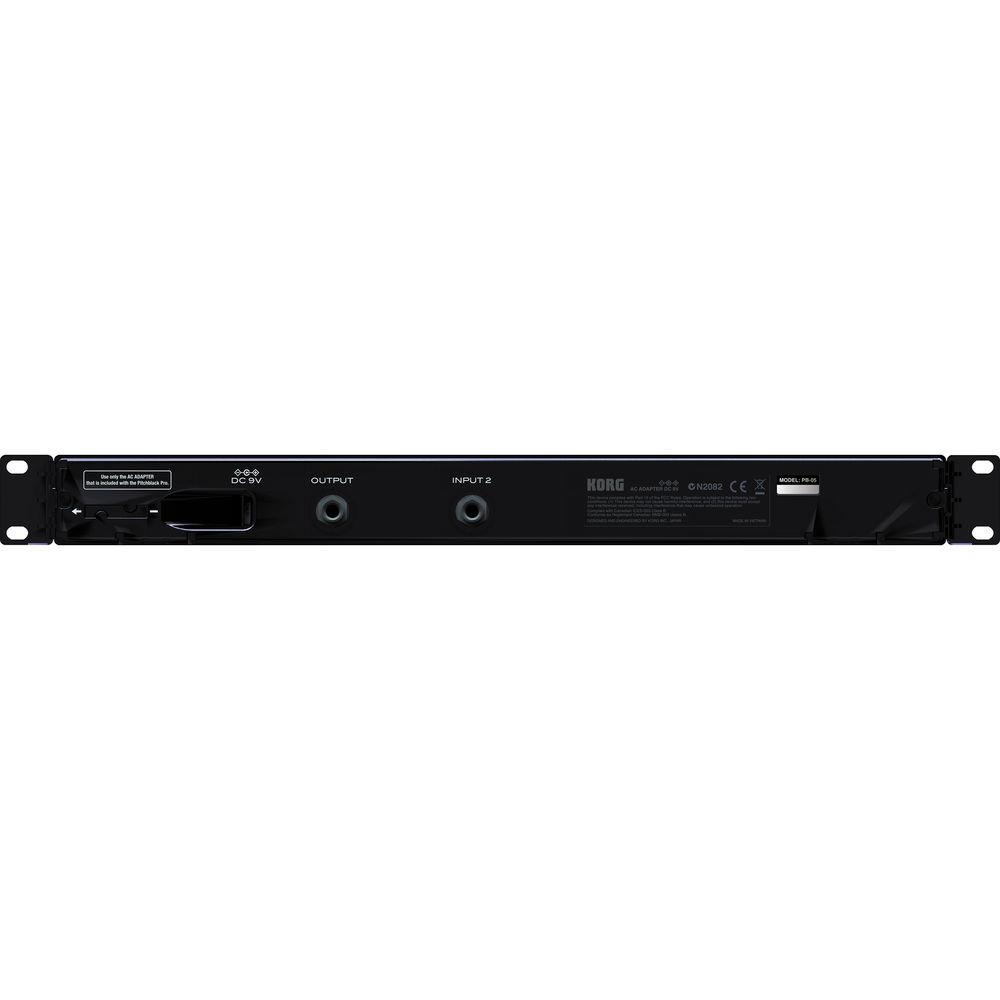

Rear Side:
1x 1/4" (6.3 mm) mono input 2 jack for line out from a keyboard or effect unit (cannot be used simultaneously with front-panel input 1)
1x 1/4" (6.3 mm) mono output jack
1x 9 V DV input | | Power Supply | DC 9 V, AC adapter | | Dimensions (LxWxD) | Tuner Only: 16.93 x 1.73 x 1.93" (430 x 44 x 49 mm), including protrusions
With Rackmount Adapters: 18.98 x 1.73 x 1.93" (482 x 44 x 49 mm) | | Weight | 12.8 oz (363 oz), tuner only | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 20.2 x 5.1 x 3.5" |
