User Manual for Korg plugKEY Mobile MIDI Audio Interface for iOS Lightning Devices Click to enlarge the picture
Contents of the user manual for the Korg plugKEY Mobile MIDI Audio Interface
- Product category: Audio Interfaces & Systems Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Audio Interfaces & Systems
 |
User manual for the Korg plugKEY Mobile MIDI Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

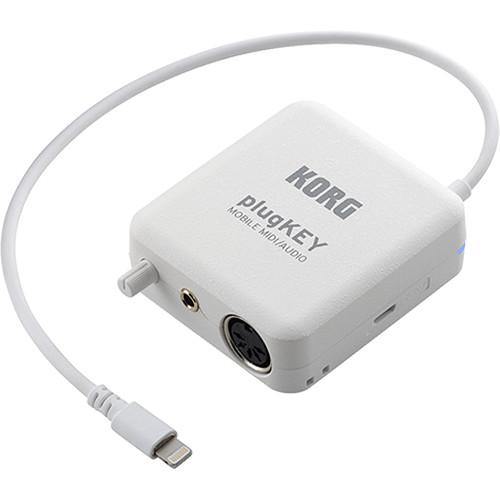

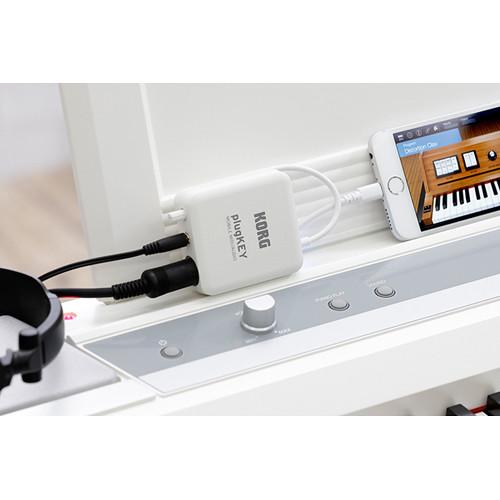

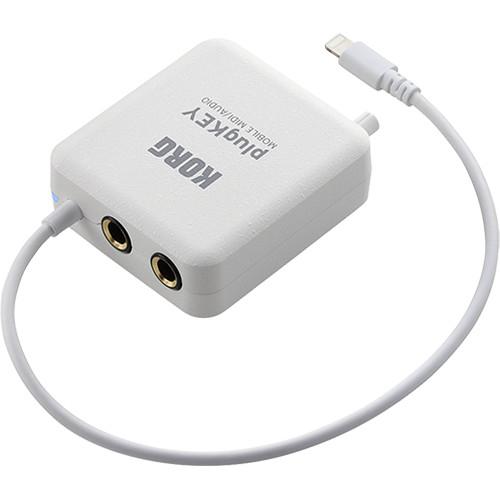

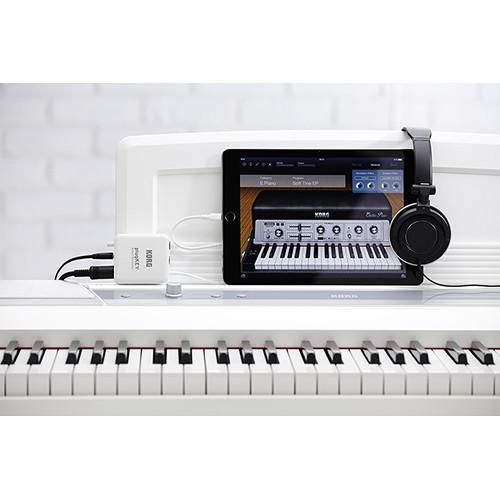

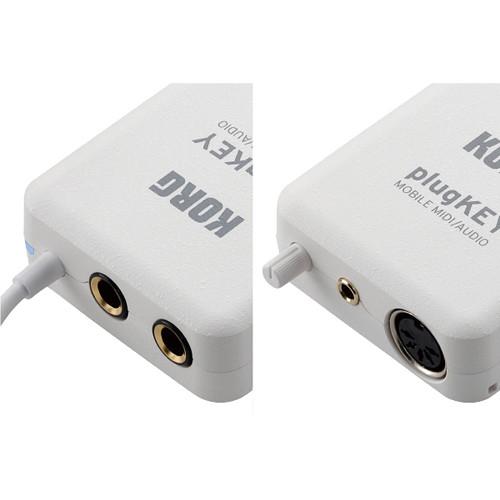

Product description The white plugKEY from Korg is an audio and MIDI interface designed for use with iOS Lightning devices and any MIDI controller with a 5-pin DIN connector. The portable interface has a built-in Lightning cable to connect to your device, while the micro-USB charging port keeps your device charged while in use. Additionally, the plugKEY offers a stereo 1/8" headphone output with a dedicated volume knob that controls both the headphone and the two high quality 1/4" stereo outputs. The 5-pin DIN MIDI connector mitigates any issues with latency and offers excellent performance when using iOS apps. Korg has made available two free apps, Gadget Le and Module Le, to get you started. Note: Note! plugKEY does not include a micro-USB cable for charging or a MIDI cable for connecting to a MIDI device -
- Connect plugKEY to your iOS device and a 5-pin DIN MIDI controller
- "Made for iPod/iPhone/iPad" certification obtained from Apple
- Two studio-quality 1/4" jack audio outputs
- 1/8" stereo headphone output
- Volume control
- Use while charging your iOS device
- Compact design can be taken anywhere
- Free apps that let you start immediately playing and producing music
In the Box Korg plugKEY Mobile MIDI/Audio Interface for iOS Lightning Devices (White) Limited 1-Year Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg plugKEY Mobile MIDI Audio Interface for iOS Lightning Devices in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg PLUGKEYWH Specs | | | Host Connection | Lightning | | Analog I/O | 2 x 1/4" (6.3 mm) Output
1 x 1/8" (3.5 mm) TRS Headphone Output | | Digital I/O | None | | MIDI I/O | 1 x 5-Pin MIDI In | | | | OS Compatibility | iOS 8 or Later | | Mobile Device Compatibility | iPhone 5, 5c, 5s, 6, 6 Plus, 6s, 6s Plus
iPad Air 2
iPad Air
iPad Mini 2, 3, 4
iPad Mini
iPad 4th Gen.
iPod Touch 5th Gen., 6th Gen. | | | | Dimensions | 2.4 x 2.9 x 0.9" / 60 x 74 x 23 mm | | Weight | 2.4 oz / 69.0 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.2 x 3.0 x 1.5" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
