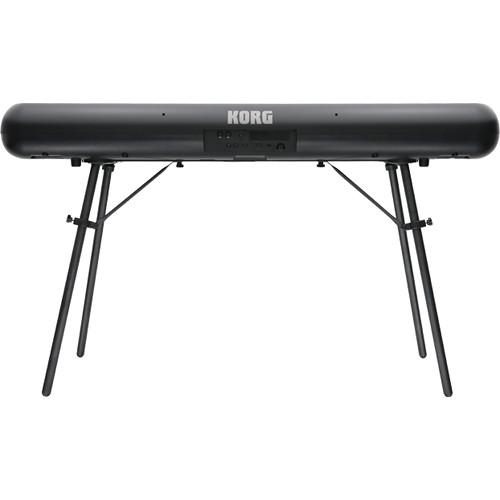

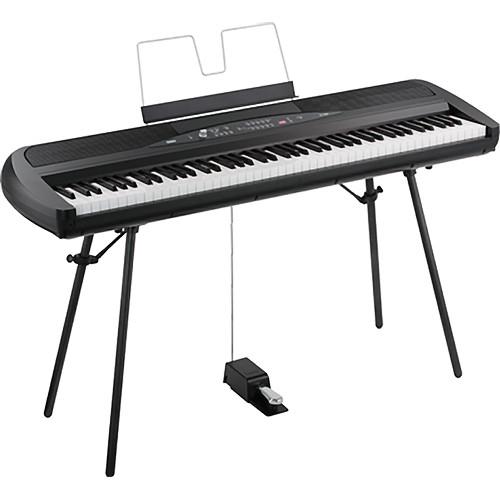

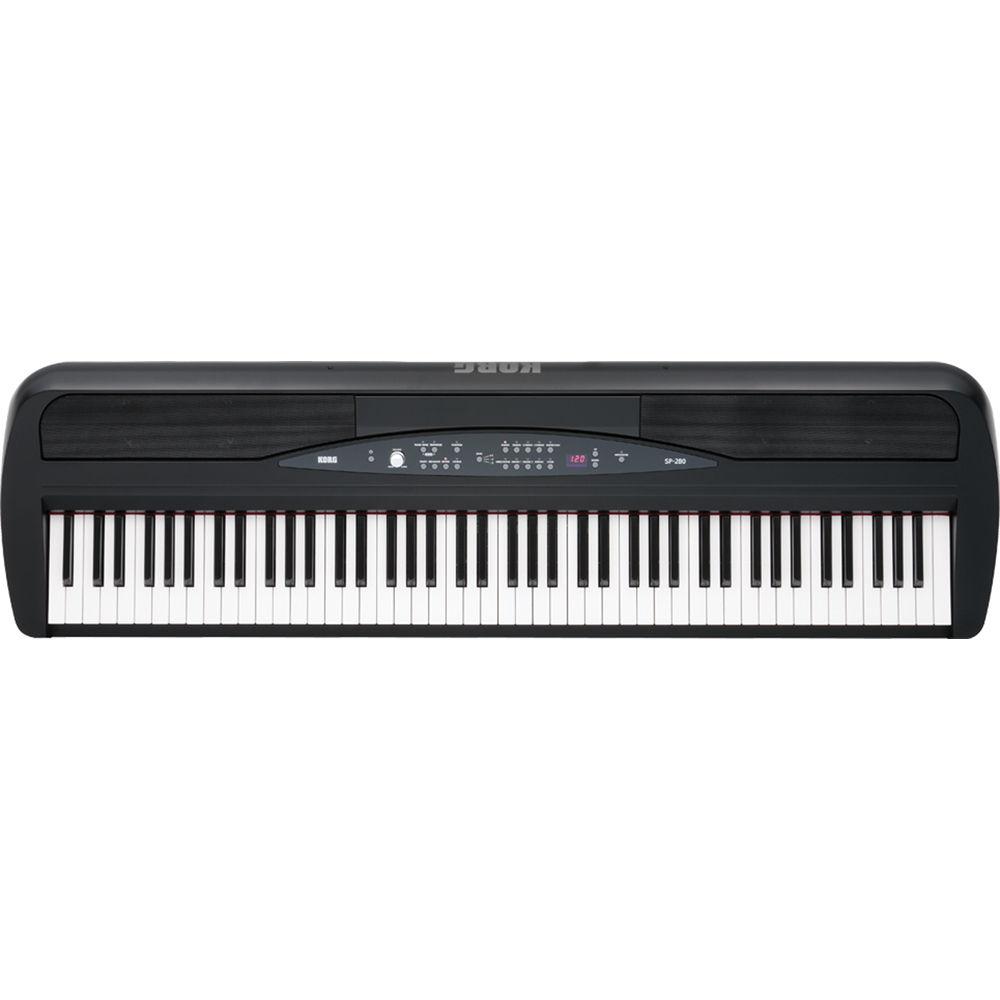

User Manual for Korg SP-280 Portable Digital Piano Click to enlarge the picture
Contents of the user manual for the Korg SP-280 Portable Digital Piano
- Product category: Digital Pianos Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Digital Pianos
 |
User manual for the Korg SP-280 Portable Digital Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|
Product description The black SP-280 from Korg is a digital piano that faithfully reproduces the sound and feel of a concert grand piano, while featuring a stylish design. Ideal for home or stage use, the 88-key Natural Weighted Hammer Action (NH) keyboard provides the same playing feel as that of an acoustic piano, with heavier action in the lower register, and a lighter response in the higher register. A Key Touch Control function provides three levels of adjustment to specify how playing dynamics will affect the output. Thirty sounds are included.
The SP-280 provides a playing feel close to that of an acoustic piano by switching between four piano samples according to the dynamics of the performance. From delicate pianissimo to dynamic fortissimo, the sound responds realistically and the "Grand Piano" sound reproduces the damper resonance that is heard when pressing the damper pedal of an acoustic piano. Authentic vintage electric piano sounds are period-accurate and reproduce not only the way in which the tone responds to touch, but also the subtle noises that occur when a key is released. Six varieties of electric pianos are provided.
A Layer Mode allows for playing two sounds together, while a Partner Mode divides the keyboard into left and right regions so that two people can play the same range of pitches. Two headphone jacks make it convenient for two people to play together. Three effects are available - brilliance adjusts the brightness of the tone, reverb simulates the natural ambience (reverberation) of a concert hall, and chorus adds spaciousness. And two onboard amplifiers each deliver 22 Watts of power with the built-in speakers capable of producing plenty of volume for a small live event without requiring a PA system.
The lightweight design makes transportation easy and the sturdy metal stand is light and easy to attach. A built-in metronome has adjustable time signature, tempo, and volume. Using the stereo line in jack allows various audio devices to be played through the speakers, for practice or rehearsal. MIDI input and output is implemented for either controlling external sound modules, or for using the piano as a 16-part multi timbral sound module. The included damper pedal will function as a half-damper pedal, allowing for varying the damper effect by how far the pedal is depressed. -
- 88-key Natural Weighted Hammer Action (NH) keyboard faithfully reproduces the touch of an acoustic piano
- Three keyboard settings for varying playing dynamics
- Thirty sounds, including organs, clavs, harpsichord, strings, and more
- Acoustic piano sounds include a concert grand
- Authentic vintage electric piano sounds, perfect for live performance
- In the "Grand Piano" sound the damper pedal functions as a half-damper pedal and the damper effect can be varied by how far the pedal is pressed
- Layer Mode allows for playing two sounds together
- Partner Mode divides the keyboard into left and right regions so that two people can play the same range of pitches
- Two headphone jacks
- Effects include brightness EQ, reverb and chorus
- High-output amplifier section
- Stereo audio input for playing along with external audio sources
- MIDI input for using the piano as a 16-part multi-timbral sound module
- Built-in metronome
- Constructed with portability in mind
- Lightweight keyboard stand is easy to attach
In the Box Korg SP-280 Portable Digital Piano (Black) External Power Supply Piano Stand Music Stand Damper Pedal One (1) Year Warranty User Manual PDF 6.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg SP-280 Portable Digital Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg SP-280 Specs | Keys | 88 | | Action Type | Natural Weighted Hammer Action (NH) | | Touch Sensitivity | Light, normal, heavy | | Sound Engine | Stereo Piano System | | Polyphony | 120 notes maximum | | Connectors | 2 x 1/4" / 6.3 mm TS phone Line Out
1 x 1/8" / 3.5 mm TRS stereo mini Line In
2 x 1/4" / 6.3 mm TRS phone Headphone
1 x 1/4" / 6.3 mm TS Damper Pedal
1 x 1/4" / 6.3 mm TRS Pedal Unit
2 x 5-pin DIN MIDI I/O | | Tones | Acoustic Piano x 5
Electric Grand
Electric Piano x 6
Harpsichord
Clavi x 2
Vibraphone
Marimba
Acoustic Guitar
Jazz Organ x 3
Pipe Organ x 3
Strings x 3
Choir x 3 | | Digital Effects | Brilliance (3 levels)
Reverb (3 levels)
Chorus (3 levels) | | Library | Sound Demo Songs: 10
Piano Demo Songs: 20 | | Pitch | Transpose
Fine tune
9 x Temperament kinds | | Metronome | Tempo
Time signature
Accent
Sound and Volume controls | | Pedals | Damper included (half-pedaling supported) | | Controls | Power
Volume
Piano Song
Transpose
Function
Touch
Brilliance
Reverb
Chorus
Bank
Sound x 10
Up
Down
Metronome | | Amplifiers | 22 W + 22 W | | Speakers | 2 x Oval: 3.2 x 4.7" / 8 x 12 cm | | Power Requirement | 19 VDC external power supply (included) | | Power Consumption | 15 W | | Dimensions (W x D x H) | 54 x 16 x 31" / 136 x 41 x 79 cm (including stand, excluding music stand) | | Weight | 42 lb / 19 kg | | | | Package Weight | 56.7 lb | | Box Dimensions (LxWxH) | 60.0 x 20.0 x 12.0" |
