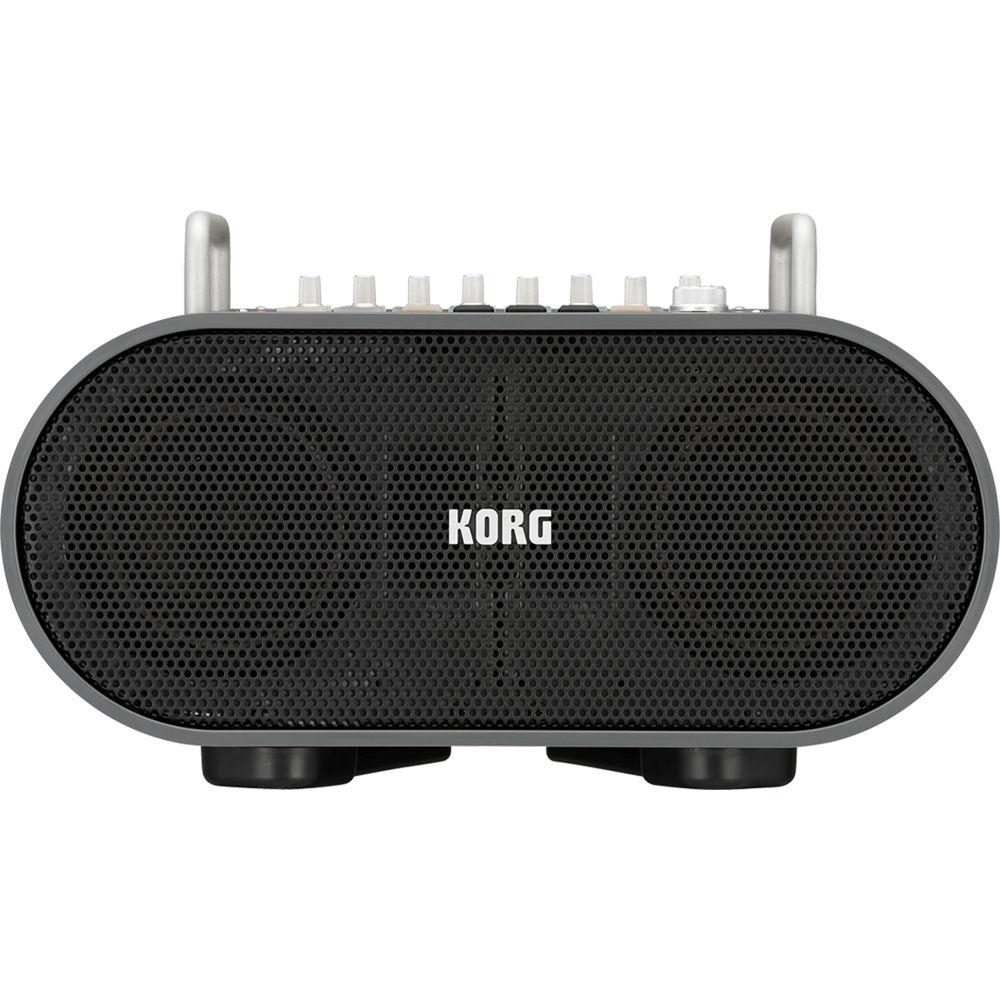

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More srfestrtvybetfce Designed for the traveling performer, the STAGEMAN 80 from Korg is an all-in-one stereo recorder, playback device, PA-system, and rhythm section. It features two 40W 4" speakers, which can deliver volumes suitable for small- to medium-sized performance venues, listening rooms, and street performances. Its class-D amplifiers deliver both efficiency in power and tightness in the low-end of the frequency spectrum. Additionally, you can easily set-up anywhere and play, as long as you have the batteries on hand. - Internal Rhythm Machine

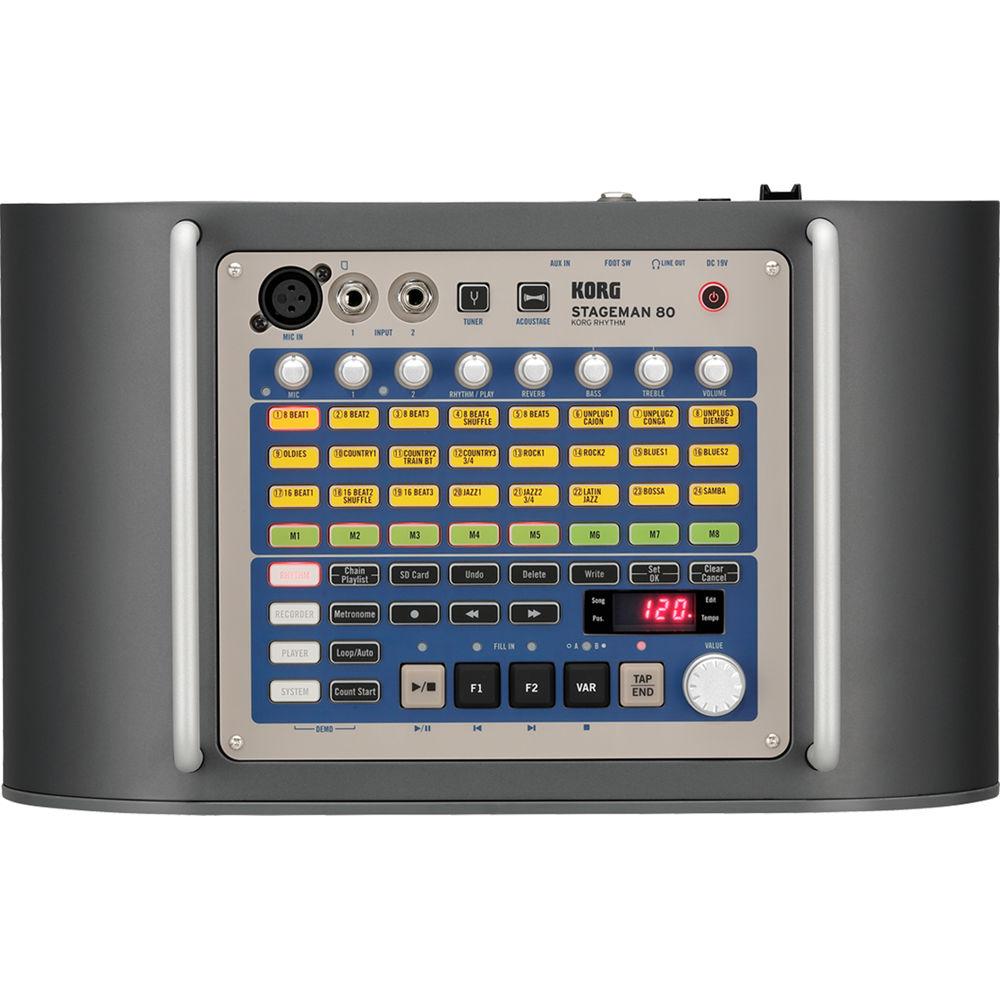

- The Stageman 80 features many on-board rhythm patterns based on performances by top-ranking pro drummers and percussionists. Additionally, Korg's "Real Groove Technology" allows natural and musical-sounding phrases to be generated at any tempo. Approximately 3GB of rhythm loops are included, covering a range of 24 genres, with two variations for each genre. You can also register your favorite rhythms and tempos, chain individual measures of rhythm styles, and create drum tracks to fit your current song.
- Uncomplicated Recording and Playback Functions
- Record your own performance along with the internal rhythm patterns—or along with a song you've added to the SD card. You can utilize undo/redo commands, and register marks at desired locations in the recorded data, and play back a region as a loop while you overdub. Additionally, you can adjust the playback speed up or down by 25%, and specify whether or not to play files repeatedly or in automatic succession.
- On-Board Mixer
- The STAGEMAN 80 allows you to mix input sources simultaneously, including a mic input, two inputs for instruments, and an AUX input that supports line-level stereo output from devices such as an iPod or keyboard. A two-band EQ is provided, and you can apply reverb to the microphone and instrument channels.
- Acoustage Function for Spaciousness
- KORG's proprietary Acoustage technology produces a wide stereo effect, aiding in the impression that the Stageman 80's speakers seem farther apart than they actually are.
- On-Board Tuner and Metronome
- The STAGEMAN 80 is equipped with a tuner. When you instantiate it, the rhythm style buttons become a tuning meter, letting you tune while watching the meters. You can also tune while hearing a guitar, bass, or piano guide tone, or listen to a metronome for practicing.
- Footswitch Input for Control During Live Performance
- You can control the STAGEMAN 80 with a Vox VFS5, available separately. Use the footswitch to insert a fill-in to rhythm patterns while you perform, to switch rhythm variations, or to start/stop the recorder or audio player. This enables real time changes in performance settings.
- Suitable for Many Performance Locales

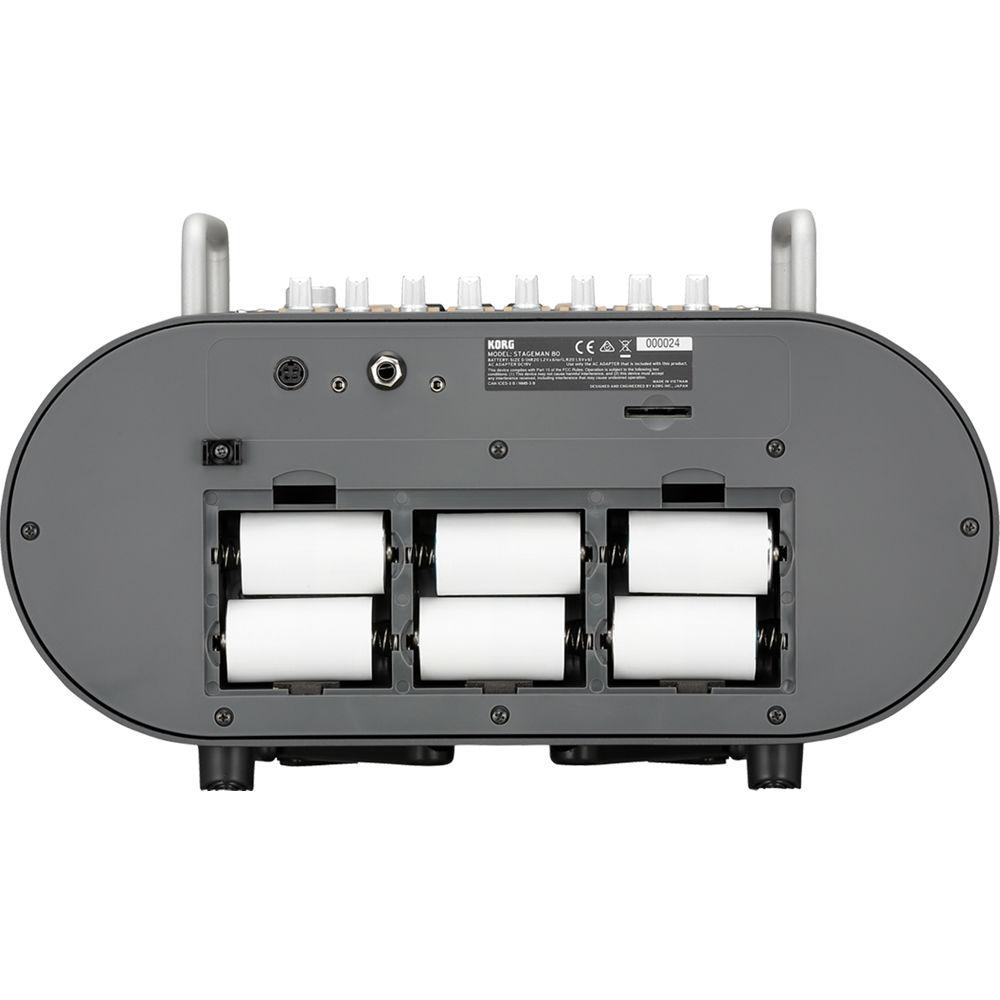

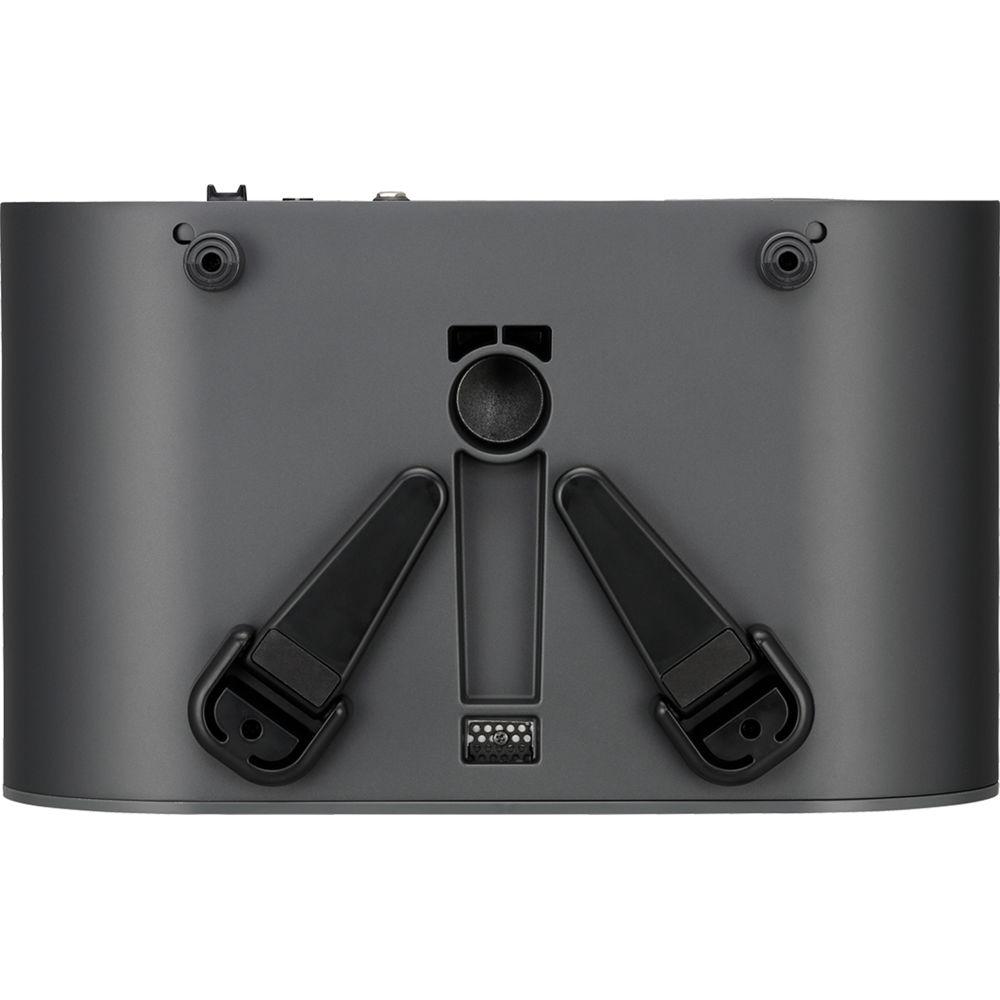

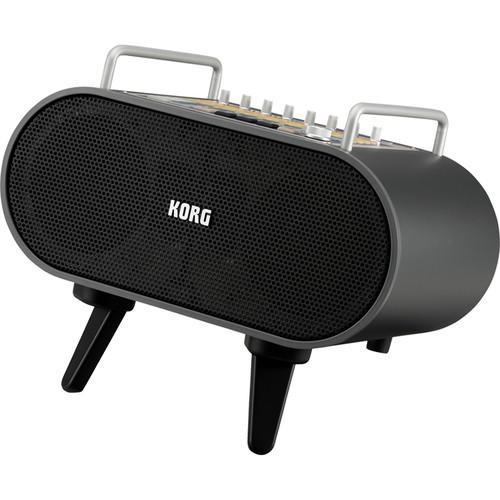

- Power can be supplied from six D batteries or from the included adapter. Since batteries facilitate up to 20 hours of continuous operation, you can use the unit in locations where electrical power is unavailable. You can also extend the stand on the lower part of the body, allowing you to tilt the speaker to an upward angle. For example if you're playing live in a cafe, this positioning allows a fuller sound to reach your audience.
In the Box Korg STAGEMAN 80 Rhythm Machine and PA System 19 VDC Adapter Card Strap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg STAGEMAN 80 Rhythm Machine and PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg STAGEMAN80 Specs | | | Rhythm Types | Two variations for each rhythm style:- 8 Beat 1
- 8 Beat 2
- 8 Beat 3
- 8 Beat 4 Shuffle
- 8 Beat 5
- Unplug 1 Cajon
- Unplug 2 Conga
- Unplug 3 Djembe
- Oldies
- Country 1
- Country 2 Train Bt
- Country 3 (3/4)
- Rock 1
- Rock 2
- Blues 1
- Blues 2
- 16 Beat 1
- 16 Beat 2 Shuffle
- 16 Beat 3
- Jazz 1
- Jazz 2 3/4
- Latin Jazz
- Bossa
- Samba
| | Tempo | 48 to 240 BPM | | User Banks | 30 banks (up to 999 measures can be registered in each) | | | | Format | PCM audio WAV format, 44.1 kHz / 16-bit | | Recording Time | Depends on the SD card used; approximately 100 minutes per 1 GB | | Maximum Recording Time | 3 hours continuous | | Number of Songs | 50 maximum | | Undo/Redo | Once | | | | Format | PCM audio WAV format, 44.1 kHz / 16-bit | | Playing Time | Depends on the SD card used; approximately 100 minutes per 1 GB | | Max Number of Folders | Eight folders, 99 songs apiece | | Playlist Features | 10 banks (up to 24 songs can be registered in each) | | Effects | Reverb, bass, treble, Acoustage (wide stereo effect) | | | | Scale | 12-note equal temperament | | Type | Chromatic | | Calibration | 435 to 445 Hz | | Guide Indicator | Three tuning tones: guitar, bass, piano | | | | Inputs | 1x XLR, 4.7 KOhms impedance, -43 dBV nominal level
2x 1/4" mono instrument jacks, 1 MOhm impedance, -26 dBV nominal level
1x 1/8" (3.5mm) stereo jack, 10 kOhms impedance, -17 dBV nominal level
1x 1/4" stereo footswitch jack, compatible with Vox VFS5 | | Outputs | 1x 1/8" (3.5mm) stereo jack, 32 Ohms impedance, 0 dBV maximum level | | | | Wattage | 2x 40 W RMS | | Speaker Impedance | 2x 4 Ohms | | Power Supply | 19 VDC, 6 D batteries (alkaline or nickel-metal hydride) | | Battery Life (approx.) | 20 hours with alkaline batteries
18 hours with nickel-metal hydrate batteries | | Current Consumption | 1.4 A | | | | Speaker Size | 4" / 101.6 mm | | Dimensions (W x D x H) | With stand folded down: 15.7 x 9.5 x 9.1" / 398 x 242 x 231 mm
With stand extended: 15.7 x 12.2 x 11.2" / 398 x 310 x 285 mm | | Dimensions | Stand angle: 26°
Speaker stand mount diameter: 1.4" / 35 mm | | Weight | 18.5 lb / 8.4 kg (without batteries) | | | | Package Weight | 24.45 lb | | Box Dimensions (LxWxH) | 18.0 x 12.6 x 11.5" |
