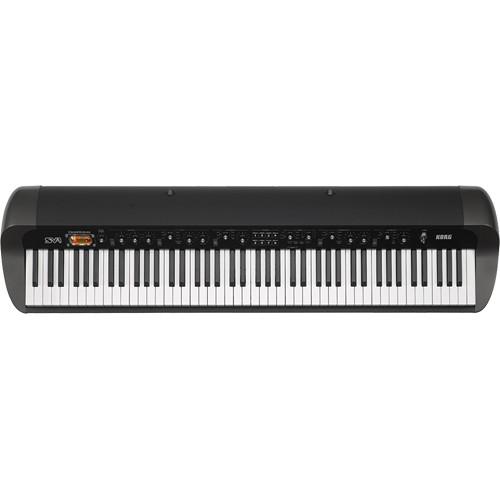

User Manual for Korg SV-1 88-Key Vintage Stage Piano Click to enlarge the picture
Contents of the user manual for the Korg SV-1 88-Key Vintage Stage Piano
- Product category: Stage Pianos & Organs Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Stage Pianos & Organs
 |
User manual for the Korg SV-1 88-Key Vintage Stage Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|
Product description The black SV-1 88-Key Vintage Stage Piano by Korg comes packed with some of the industry's most in-demand vintage keyboard and piano sounds sought after by the world's top performing and studio musicians. The acoustic pianos include three-way stereo versions of legendary German and Japanese grand pianos, an intimate upright along with an essential mono piano for those smaller gigs, a late 70s/mid 80s Japanese electro-acoustic variation, plus a few layered piano sounds. It also includes electric pianos, clavs, tape-based and analog strings, choir and a couple of fat analog synths - everything you need for most any style of music. The SV-1 features Korg's finest RH3 graded hammer action keyboard delivering authentic piano feel and response. It also includes tube-driven amp modeling, eighteen studio quality effects and a 3-band equalizer. As for connectivity, the SV-1 doesn't fall short with its stereo 1/4" inputs and outputs plus a pair of balanced XLR outputs ideal for stage and studio. As if that wasn't enough, it also comes equipped with a stereo headphone output for private practice and includes a music rack and damper pedal. - Sounds
-
- Grand Pianos: Smooth European, Lively Japanese, Mono Grand (for live)
- Electric Pianos: Tine styles, Reed Types, Plucked Type and Clavs
- Electronic Pianos: Korg SG-1D, Transistor, 80s synth and VPM styles
- Organs: Tonewheels, USA Tube Console, Italian Combo and VOX
- Keyboards: String Machine, Tape Strings and Synth Brass
- Other: Piano + Layers, Strings and Choir
- Includes 36 highly sought after piano and vintage keyboard sounds including two grand pianos
- Features Korg's finest RH3 graded hammer action keyboard delivering authentic piano feel and response
- Intuitive front panel with single-function knobs ideal for live performance
- Eight user-friendly car-radio style favorites buttons
- Valve Reactor 12AX7 tube-driven amp modeling (six models)
- Includes six pre-effects; six modulation effects; six reverb delays and a 3-Band EQ
- Features stereo 1/4" ins and outs, a stereo headphone out plus a pair of balanced XLR outputs
- Damper pedal and music rack included
In the Box Korg SV-1 88-Key Vintage Stage Piano (Black) Power Cable Damper Pedal (Korg DS-2H) Music Rack SV-1 Editor Software Limited 1 Year Warranty User Manual PDF 9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg SV-1 88-Key Vintage Stage Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg SV-1 Specs | Keyboard | 88 velocity sensitive Korg RH3 Real Weighted Hammer Action 3 keys | | Touch Sensitivity | Eight curves | | Tuning | Transpose, fine tuning and tuning curves | | Sound Generation | EDS (Enhanced Definition Synthesis) | | Polyphony | 80 notes (max) | | Sounds | 36 sounds (6 banks × 6 variations)
Bank 1 (E. Piano 1): Tine EP/Amp, Tine EP/Phaser, Tremolo EP, Dyno EP, VPM Piano, VPM Tine
Bank 2 (E.Piano 2): Reed EP 1, Reed EP 2, Electric Grand, SG-1D Piano, 80's Synth Piano, MIDI Grand
Bank 3 (Clav): Clav AC, Clav BC, Clav BD, Clav AD, Piano-ette, ElectraPno
Bank 4 (Piano): Grand Piano1, Grand Piano2, Mono Grand, Upright, Piano/Strings, Piano/Pad Bank 5 (Organ): Tonewheel x 3 (Click, Jazz, Full), Console Organ, Italian Combo, VOX Combo Bank 6 (Other): Full Strings, Tape Strings, 70s Strings, Choir, Synth Brass, Sharp Brass | | Switches | Eight favorite switches for quick control panel registration | | Equalizer | 3-band: Bass, Mid and Treble | | Effects | Pre: Compressor, Boost, U-Vibe, Vibrato, Tremolo and VOX Wah Modulation: Chorus1, Chorus2, Phaser1, Phaser2, Flanger, Rotary Reverb/Delay: Room, Plate, Hall, Spring, Tape Echo, Stereo Delay Master: Stereo Mastering Limiter, Stereo Limiter | | Amp Models | Amp 1/2/3/4/5/ Organ Amp + Cabinet Models, Valve Reactor Technology - 12AX7 tube | | Controls | Effects: equalizer On/Off - 3 encoders: Bass, Mid, Treble
Pre FX 2 switches: On/Off, Auto/Pedal switch for Wah
3 encoders: Type select, Speed, Intensity
Amp Models On/Off - 2 encoders: Type select, Drive
Modulation FX 2 switches: On/Off, Rotary Slow/Fast
3 encoders: Type select, Speed, Intensity
Reverb/Delay 2 switches: On/Off, Tap Tempo
2 encoders: Type select, Depth
Other: 4 switches
Panel Switches: Transpose, Local Off, Touch, Function, Demo = Transpose + Local Off
Volume: Master Volume Knob | | Connections | Audio output, Audio input, Headphones, MIDI, Computer, Damper | | MIDI | I/O | | Inputs | L/Mono, R | | Outputs | L, R (2 × XLR, Balanced)
L/Mono, R (2 × 1/4" Jack, Unbalanced) | | Headphone Output | Yes | | USB | Type B connector (doubles the MIDI interface), USB 1.1 Supported | | Pedals | Korg DS-2H, supplied | | Pedal Control | Pedal 1: Footswitch (like Korg PS-1)
Pedal 2: Volume/expression (like Korg XVP-10 or EXP-2) or footswitch (like Korg PS-1) | | Demo | 36 incorporated demos | | Power Supply | Internal switching adapter, AC100~240V, 50/60Hz | | Power Consumption | 15 Watt | | Windows System Requirements | Operating system: 32-bit/64-bit Microsoft Windows XP SP3 or later, Microsoft Windows Vista SP1 or later or Microsoft Windows 7
CPU: Intel Pentium IV / 2 GHz Pentium D or more than Core Duo is recommended
RAM: 1GB or larger | | Mac System Requirements | Operating system: Mac OS X version 10.4.11, 10.5 or later
CPU: Apple G4 1.4GHz, or more (Support to Intel Mac), Apple G5 or more than Core Duo is recommended
RAM: 1GB or more
Available USB port | | Dimensions (WxDxH) | 53.3 × 13.66 × 6.1" (135.6 × 34.7 × 15.7 cm) | | Weight | 45.3 lb (20.55 kg) | | | | Package Weight | 62.2 lb | | Box Dimensions (LxWxH) | 59.0 x 22.0 x 13.0" |
