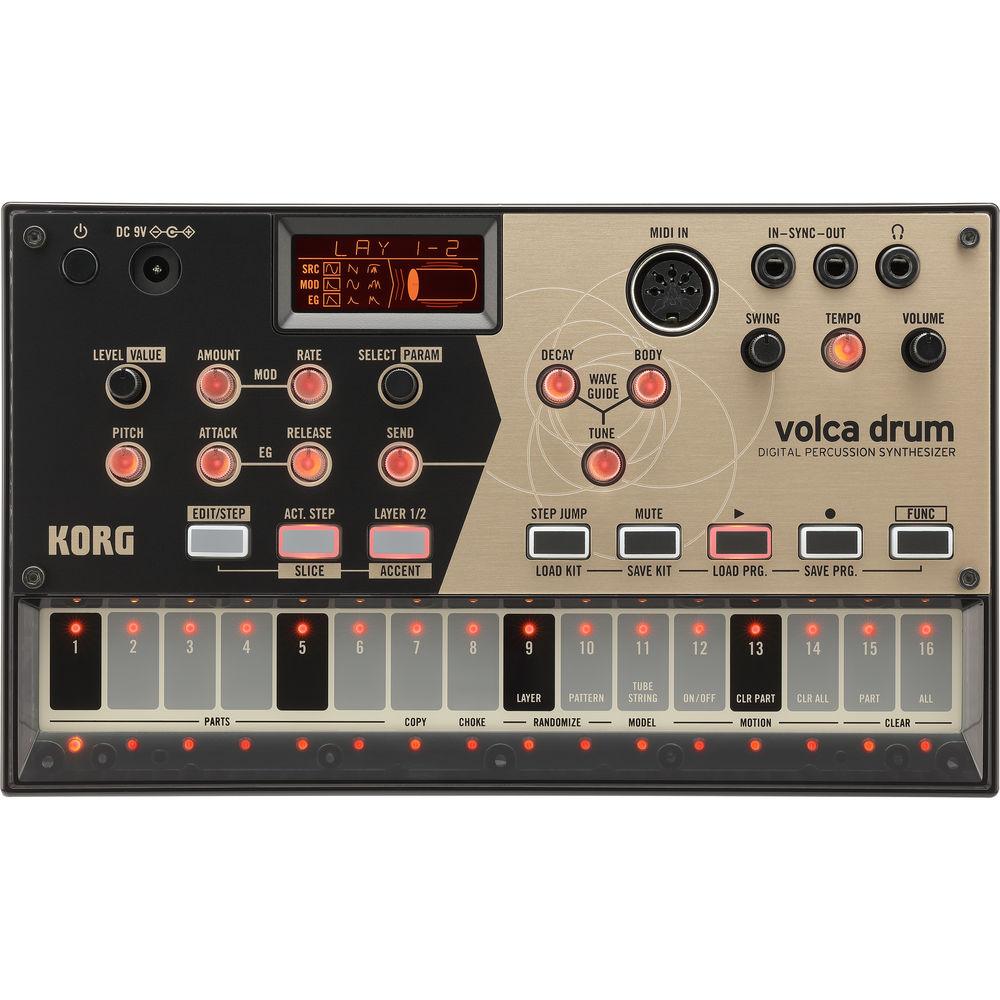

User Manual for Korg Volca Drum - Digital Percussion Synthesizer Click to enlarge the picture
Contents of the user manual for the Korg Volca Drum - Digital Percussion
- Product category: Drum Machines Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Drum Machines
 |
User manual for the Korg Volca Drum - Digital Percussion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|
Product description - KORG volca drum - Welcome to an infinitely expanding world of sound-design.
The Korg Volca Drum is a digital percussion synthesizer that harnesses the power of physical modeling to create sounds and patterns unlike most other drum machines, making it well suited for musicians and producers working in the studio or performing live on stage. The machine utilizes dual-layer drum parts, comprehensive motion sequencing, and sequencer tricks to generate a variety of standard percussive sounds and eccentric drum styles.
The Volca Drum provides six parts, each with two layers, from which the user selects any one of 5 oscillator waveforms including sine, sawtooth, and HPF noise. Additionally, the user can select from three types of pitch modulators and amplifier envelope generators, each optimized for drum sounds. Edit layers separately or together while adding bit reduction, wave-folder depth, overdrive, and distortion. A waveguide resonator adds sympathetic resonances to the sound and provides two selected types including tube, which adds the resonance of a cylindrical object such as a drum body or a long pipe; or strings, which adds the metallic resonance of a string.
The onboard step-sequencer allows the user to manually input up to 16 steps per pattern, but also can be used for real-time recording. The pattern chaining function can chain up to 16 sequences to construct patterns with up to 256 steps. Use the motion sequence function to record knob movements during real-time recording and reproduce them during playback. There are a total of 69 different parameters that can be recorded and played back. Additional features and functions include Active Step, which replaces steps for each part; and Slice, which finely divides a step to allow drum-rolls; an Accent function that can be specified in 16 levels; and a convenient Choke function for specific grouping of parts.
The Volca Drum can be synchronized with other Volcas and Electribes via the trigger I/O. Additionally, the machine features a standard 5-pin DIN connector for connecting to other sequencers, allowing the unit to perform as a drum module. The Korg Volca Drum is powered by an optional power supply or via the included six AA batteries. -
- Digital synthesis engine
- 6-note polyphony
- Structure
- 6 parts
- 2 oscillators
- 1 pitch modulator
- 1 amp EG
- 1 waveguide resonator
- Kits: 16
- Settings for 6 parts + settings for waveguide resonator
- Factory kits 1-10
- Program: 16
- Sequence pattern
- Motion sequence
- Kit number
- Factory preset programs 1-10
- Sequencer
- Number of parts: 6
- Number of steps: 16
- Number of recording patterns: 16
- Pattern-chaining function can chain up to 256 steps
- Motion Sequencer
- Record knob movements during real-time recording and reproduce them during playback
- Up to 69 parameters can be recorded and played back
- Additional Functions
- Active Step: replaces steps for each part
- Slice: Finely divides a step to allow drumrolls
- Accent: can be specified in 16 levels
- Choke: interplay for a specific group of parts (i.e. open/close hi-hat)
- Power
- Optional power adatper available
- Includes 6 x AA batteries
- Connectors:
- 3.5mm sync I/O
- 5-pin DIN MIDI input
- Includes sync cable
In the Box Korg Volca Drum - Digital Percussion Synthesizer 6 x AA Alkaline Batteries Sync Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Volca Drum - Digital Percussion Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg VOLCADRUM Specs | Keyboard | Multitouch Trigger Pads / Step Keys | | Synthesizer | Type: Digital Synthesis
Maximum Polyphony: 6
Structure: 6 Parts (For Each Part: 2 Oscillators, Pitch Modulator, and Amp EG) and Waveguide Resonator Effect
Kits: 16 (Settings for 6 Parts + Settings for Waveguide Resonator) Kit 1 to 10 Are Factory Preset
Programs: 16 (Sequence pattern, Motion sequence, Kit No.) Program 1 to 10 are Factory Preset | | Sequencer | Number of Parts: 6
Number of Steps: 16 (Pattern Chain is Available)
Number of Recording Patterns: 16 | | Connectors | Audio Output: 1/8" / 3.5 mm Stereo Headphone
Sync In: 1/8" / 3.5 mm Monaural Mini-Jack, (Maximum Input Level: 20 V)
Sync Out: 1/8" / 3.5 mm Monaural Mini-Jack, (Maximum Output Level: 5 V)
MIDI In : 5-Pin DIN | | Power | Battery Life: Approximately 10 Hours (Using Alkaline Batteries)
Power Supply:
6 x AA Alkaline Battery
6 x AA Nickel-Metal Hydride Battery
KA-350 AC Adapter (Sold Separately)
| | Dimensions (W x D x H) | 7.6 x 4.5 x 1.5" / 193.3 x 115.3 x 39.1 mm | | Weight | 13.1 oz / 370.0 g | | | | Package Weight | 1.715 lb | | Box Dimensions (LxWxH) | 10.6 x 6.0 x 2.8" |
