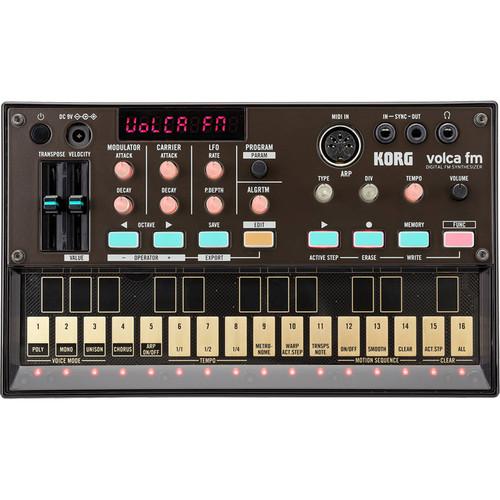

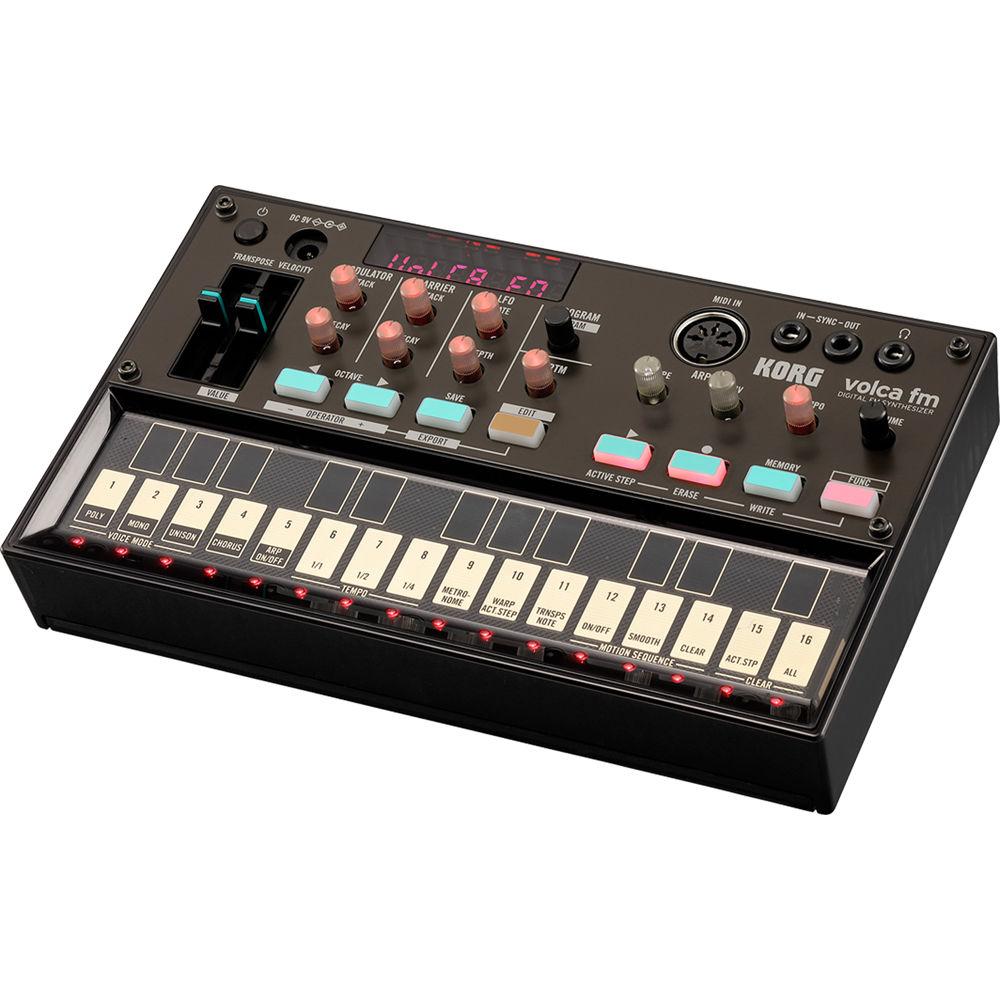

User Manual for Korg Volca FM Digital FM Synthesizer Click to enlarge the picture
Contents of the user manual for the Korg Volca FM Digital FM Synthesizer
- Product category: Synthesizer Keyboards Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Synthesizer Keyboards
 |
User manual for the Korg Volca FM Digital FM Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|
Product description - Quick Listen: Korg Volca FM
The Volca FM from Korg is a 3-voice digital FM synthesizer that faithfully reproduces the sound engine of a classic FM synthesizer with its sharp, metallic sounds, notable electric pianos, and deep, full bass. The unit features 6 operators, and 32 algorithms provide complete compatibility and can even load files in the SYS-EX/SYX format of the Yamaha DX7. The Volca FM makes editing patches easy and accessible with single knobs mapped to multiple parameters. The hardcore programmers can menu dive into full parameter edits and a Parameter List Guide is included. Additionally, the instrument includes an on-board chorus effect capable of adding depth and to your sound creations.
A built-in 16-step loop sequencer offers the ability to record phrases as you play them. The Motion Sequencer allows you to record knob edits in real time while the Warp Active Step and Pattern Chain functions can provide dynamic changes to your programmed sequences. Additionally, an on-board arpeggiator offers a total of 9 types including three patterns each of "Rise", "Fall", and "Random" and aids for the creation of crazy looping rhythms and patterns.
The unit can be programmed with its 27-key Multi-Touch keypad or with an external MIDI controller or DAW via its 5-pin DIN MIDI input. Multiple units from the Volca line can be clock synced with the 1/8" Sync In and Out connectors. When two units of Volca FM are connected, you can clone the sound programs and sequence data from Volca FM to Volca FM. Playback is provided through the 1/8" headphone output or through the Volca Keys' built-in speaker. It can be powered by the included six AA batteries or with the optional KA-350 AC adapter. The Volca FM ships with a sync cable and an edit-parameter list. In the Box Korg Volca FM Digital FM Synthesizer 6 x AA Alkaline Batteries Sync Cable Edit-Parameter List Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Volca FM Digital FM Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg VOLCAFM Specs | Keyboard | Multi-Touch Keyboard | | Synthesizer Type | FM Synthesis | | Polyphony | 3 Voices (Maximum) | | Structure | 6 operators, 32 algorithms | | Number of Programs | 32 | | Editor | Main Edits: Modulator (Attack, Decay), Carrier (Attack, Decay), LFO (Rate, P.Depth), Algrtm
Available to edit full parameters for each operator in Edit Mode | | Controls | Transpose, Velocity, Octave, Arp (Type, Div) | | Arpeggiator | Arpeggiator Types: 9 (each 3 patterns of "Rise", "Fall", and "Random") | | Modes | Voice Modes: Poly, Mono, Unison | | Effects | Chorus | | Sequencer | Number of Parts: 1
Number of Steps: 16
Number of Recording Patterns: 16
Controls: Motion Sequence, Active Step, Warp Active Step, Pattern Chain, Metronome | | Connectors | Audio Output: Headphones (3.5 mm stereo mini jack)
Sync
Sync In: 1/8" / 3.5 mm monaural mini jack, Maximum input level: 20 V
Sync Out: 1/8" / 3.5 mm monaural mini jack, Output level: 5 V
When two units of volca fm, available to export the sound programs and sequence data from a volca fm to the other one
MIDI: In, Available to convert and load SYS-EX/SYX file created on the Yamaha DX7 | | Power Supply | 6x AA Alkaline or AA Nickel-Metal Hydride Batteries
Optional KA-350 AC Adapter | | Battery Life | 10 Hours (Approximate, Using Alkaline Batteries) | | Dimensions (W x D x H) | 7.61 x 4.54 x 1.57" / 193 x 115 x 40 mm | | Weight | 12.7 oz / 360.0 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 10.5 x 6.0 x 2.9" |
