User Manual for Korg Volca Keys Analog Loop Synthesizer Click to enlarge the picture
Contents of the user manual for the Korg Volca Keys Analog Loop Synthesizer
- Product category: Synthesizer Keyboards Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Synthesizer Keyboards
|
User manual for the Korg Volca Keys Analog Loop Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

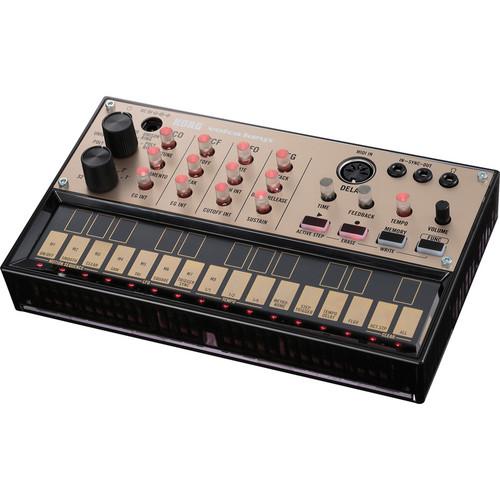

Product description The Volca Keys Analog Loop Synthesizer from Korg is a polyphonic lead synthesizer with three self-tuning oscillators capable of three-note synthesis. It features a built-in 16-step loop sequencer with the ability to record phrases as you play them. The Motion Sequencer allows you to record knob edits in real time while the Active Step and Flux functions can provide dynamic changes to your programmed sequences. The unit also has built-in delay for time-based effects.
The unit can be programmed with its 27-key Multi-Touch keypad or with an external MIDI controller or DAW via its 5-pin DIN MIDI input. Multiple units from the Volca line can be clock synced with the 1/8" Sync In and Out connectors. Playback is provided through the 1/8" headphone output or through the Volca Keys' built-in speaker. It can be powered by six AA batteries or with the optional KA-350 AC adapter. In the Box Korg Volca Keys Analog Loop Synthesizer 6 x AA Alkaline Batteries Limited 1-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Volca Keys Analog Loop Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg Volca Keys Specs | Keyboard | Multi-Touch Keyboard | | Synthesizer Type | Analog Synthesis | | Polyphony | 3 Voices (Maximum) | | Structure | 3x VCO
1x VCF
1x VCA
1x LFO
1x EG | | VCO | Octave, Ring Modulation, Detune, Portamento, EG Intensity
Waves: Sawtooth, Square | | VCF | Cut-Off, Peak, EG Intensity
Type: Low-Pass Filter @ 12 dB/Octave Slope | | LFO | Rate, Pitch Int, Cut-Off Int, Wave (Sawtooth, Triangle, Square) | | EG | Attack, Decay/Release, Sustain | | Effects | Delay: Time, Feedback, Tempo Sync | | Sequencer | Number of Parts: 1
Number of Steps: 16
Number of Recording Patterns: 8 | | Connectors | 1x 1/8" (3.5 mm) Stereo Headphone Output
1x 1/8" (3.5 mm) Mono Sync Input
1x 1/8" (3.5 mm) Mono Sync Output
1x 5-Pin DIN MIDI Input | | Power Supply | 6x AA Alkaline or AA Nickel-Metal Hydride Batteries
Optional KA-350 AC Adapter | | Battery Life | 10 Hours (Approximate, Using Alkaline Batteries) | | Dimensions (W x D x H) | 7.61 x 4.54 x 1.81" (193 x 115 x 46 mm) | | Weight | 0.83 lb (377 g) | | | | Package Weight | 1.71 lb | | Box Dimensions (LxWxH) | 10.45 x 6.05 x 2.85" |
