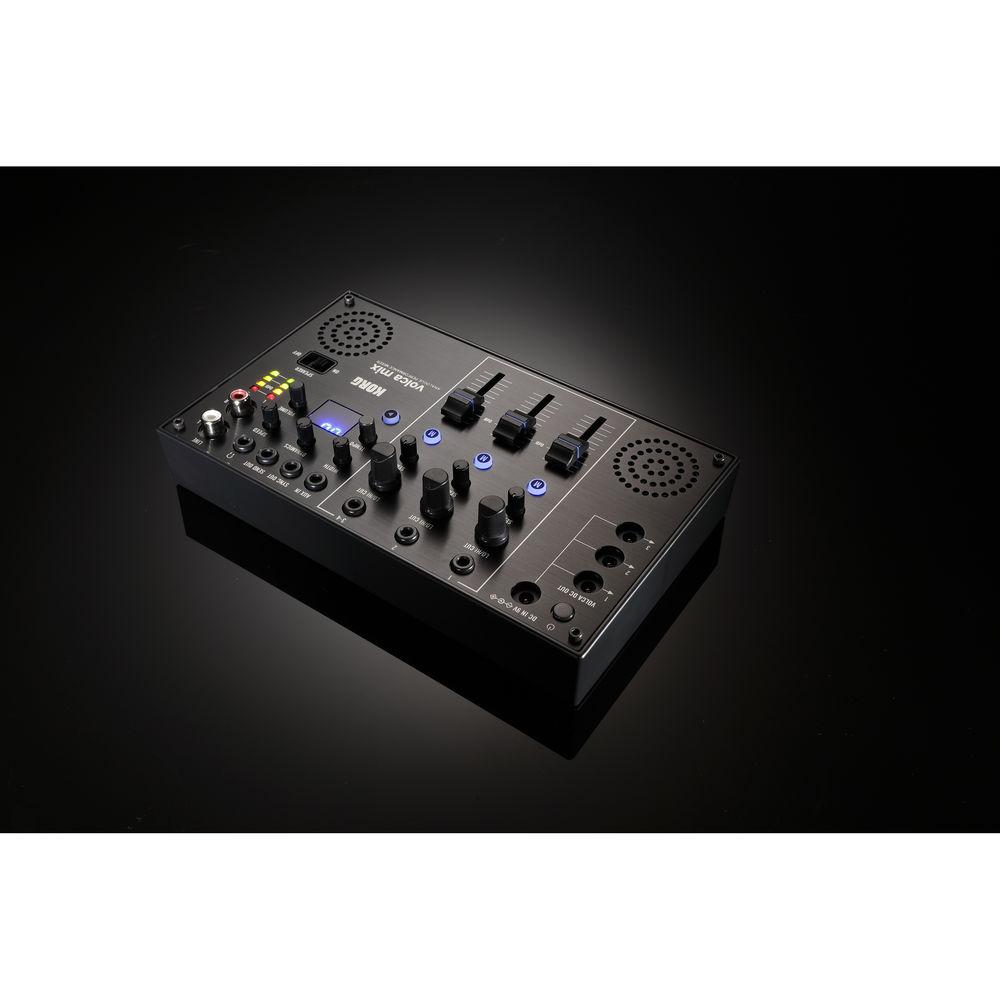

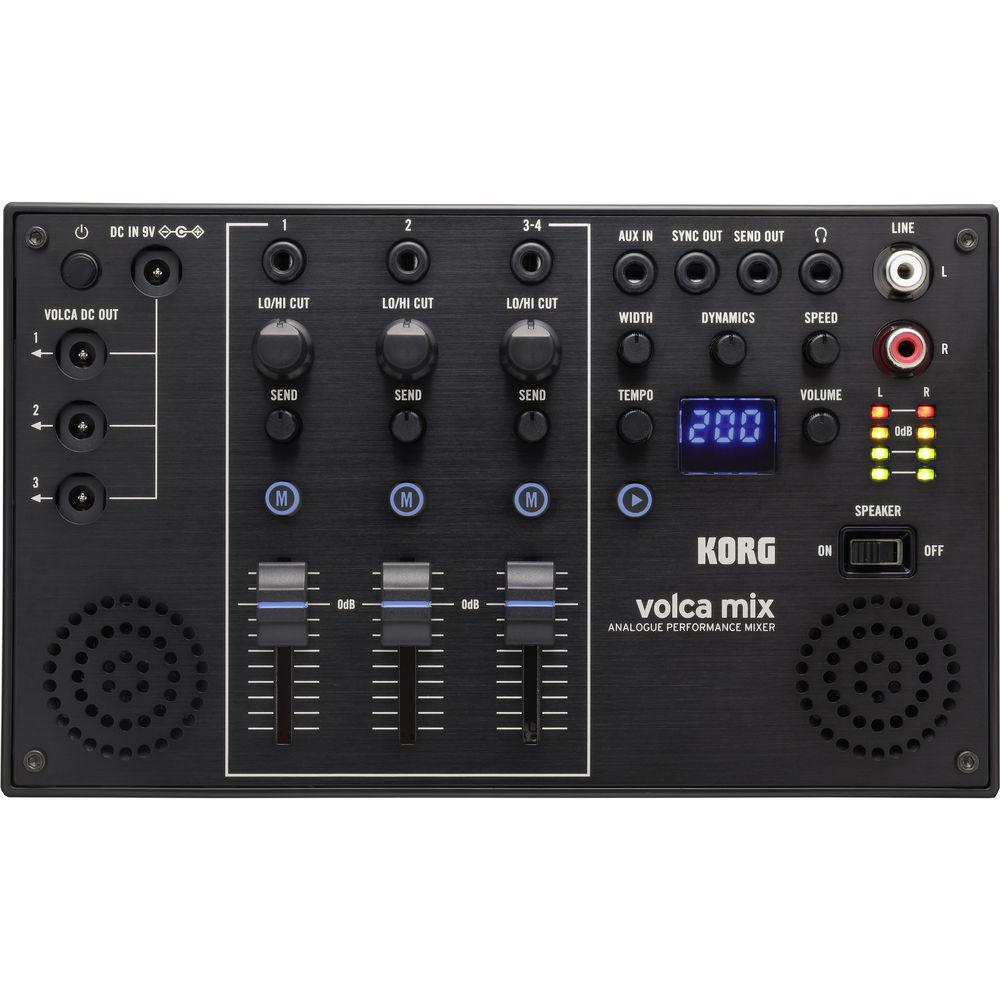

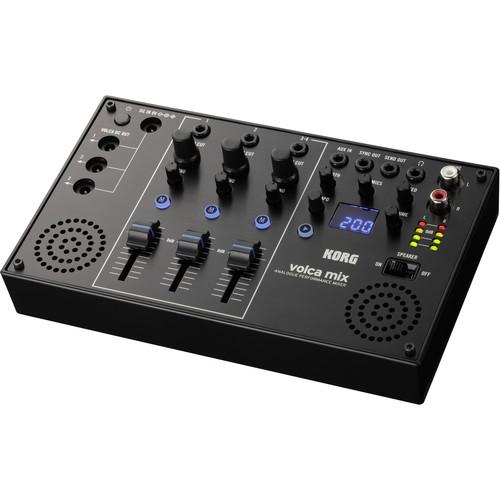

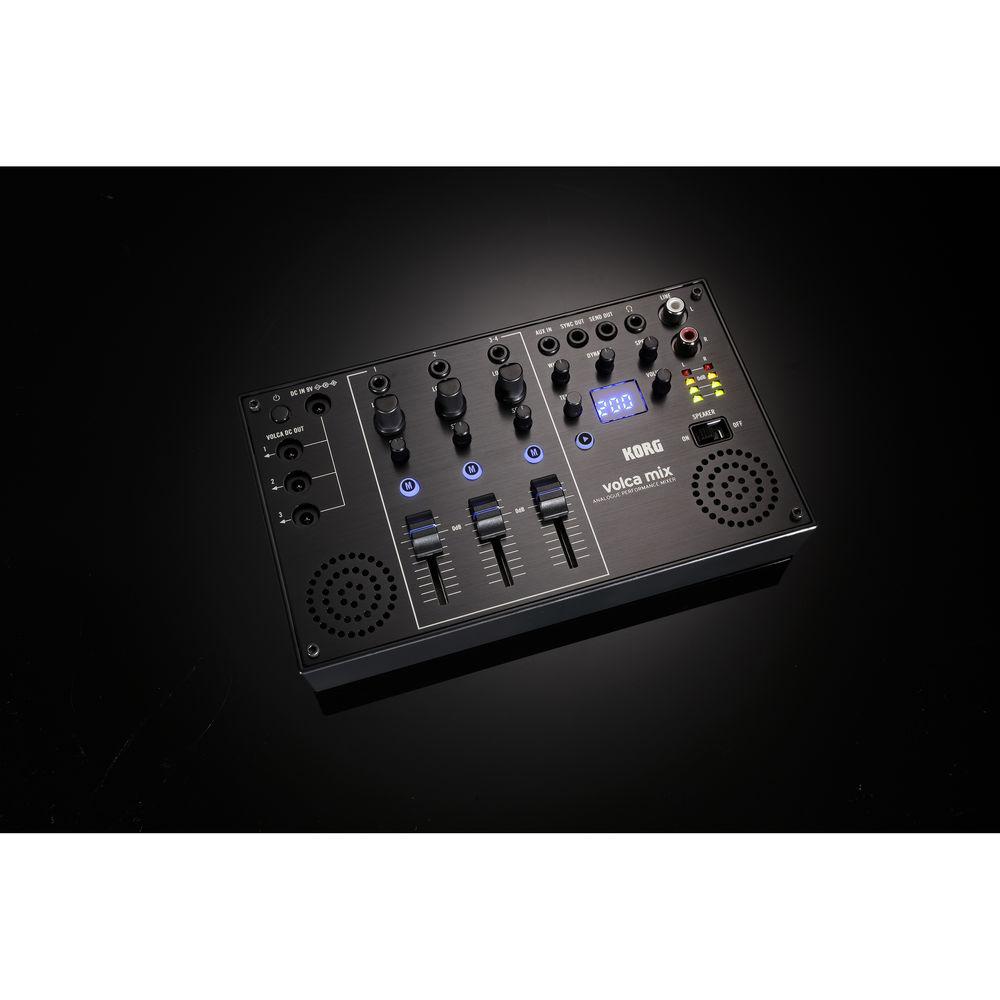

Product description NAMM 2018: Korg Volca Mix and Konnect PA New at B&H Read More dbbcabtrytywfyzefbzxbq The Korg Volca Mix is a four-channel analog mixer designed for a live performance setup combining multiple volca units. The mixer offers two mono channels, a stereo channel, plus aux send and return functions for incorporating external effects. Each channel offers a hi-/lo-cut filter allowing you to contour the sounds of each device to create a polished mix. Additionally, the unit offers master effects including an analog stereo width expander and an analog dynamic range compressor with sidechain capabilities.

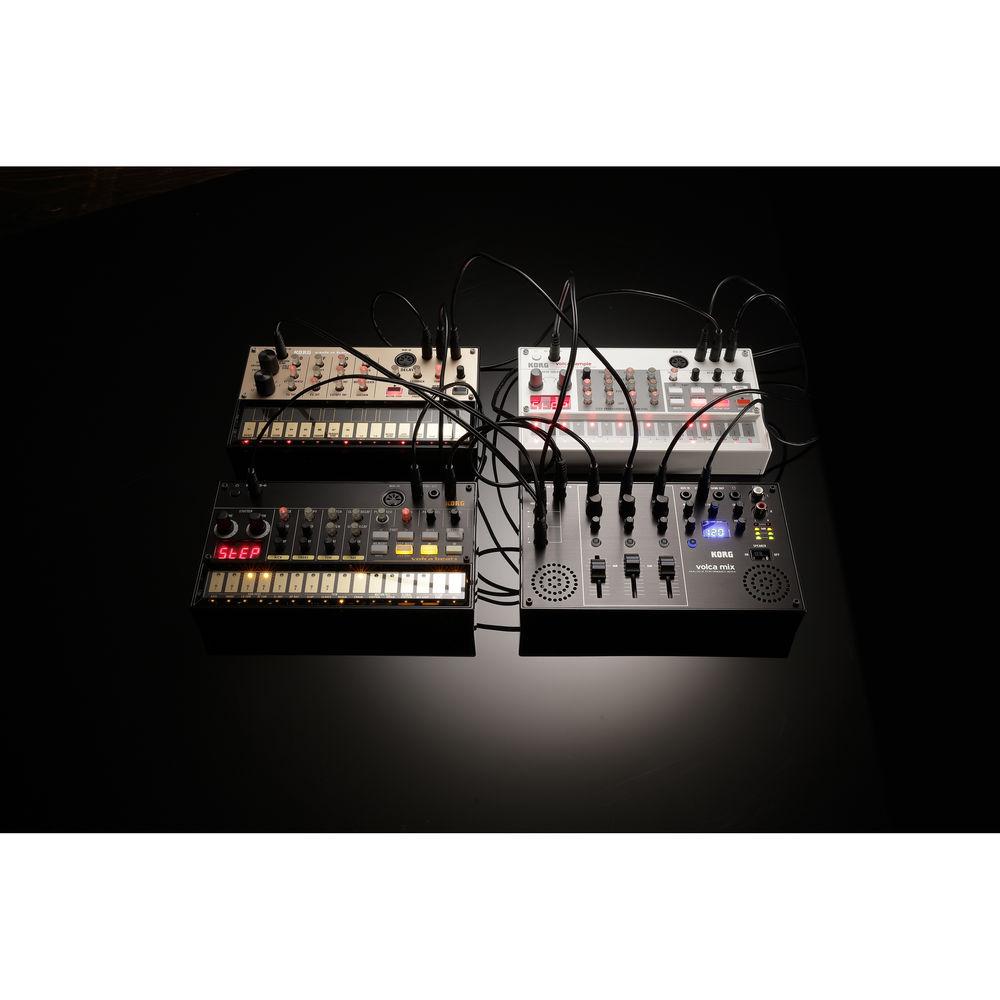

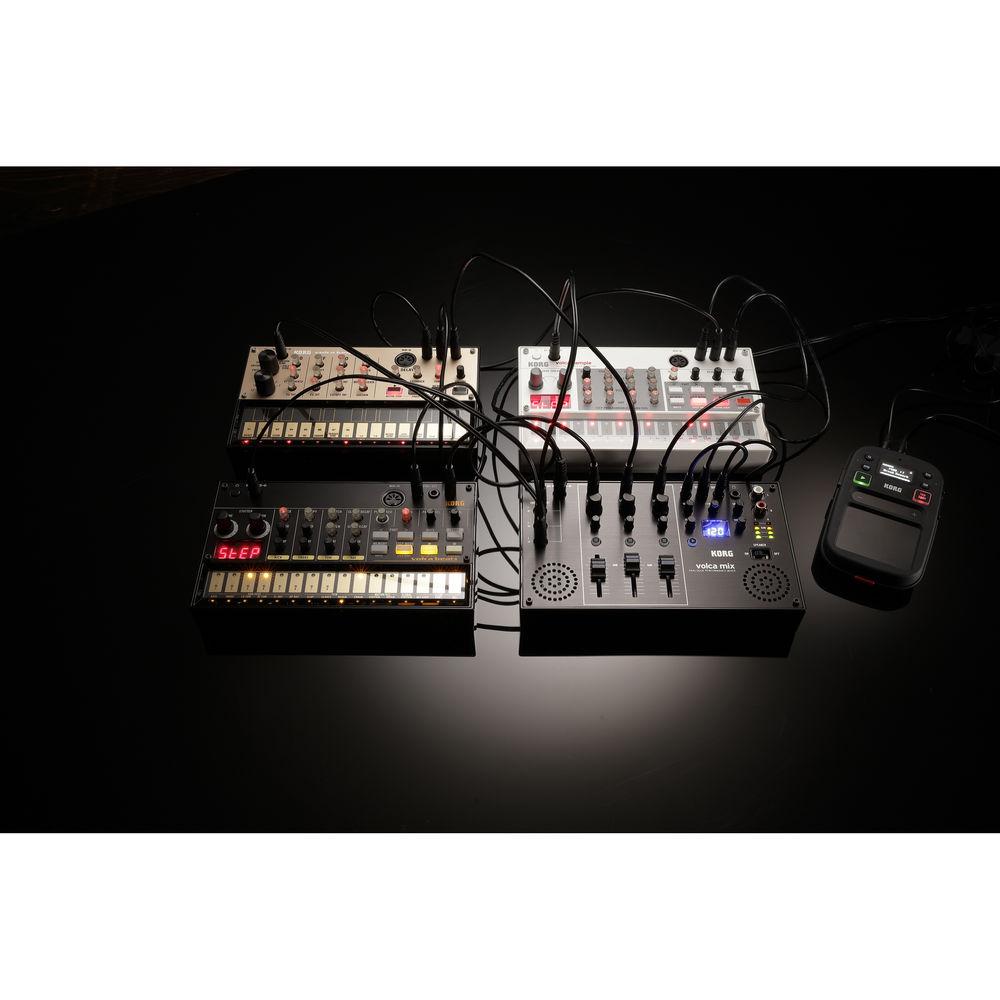

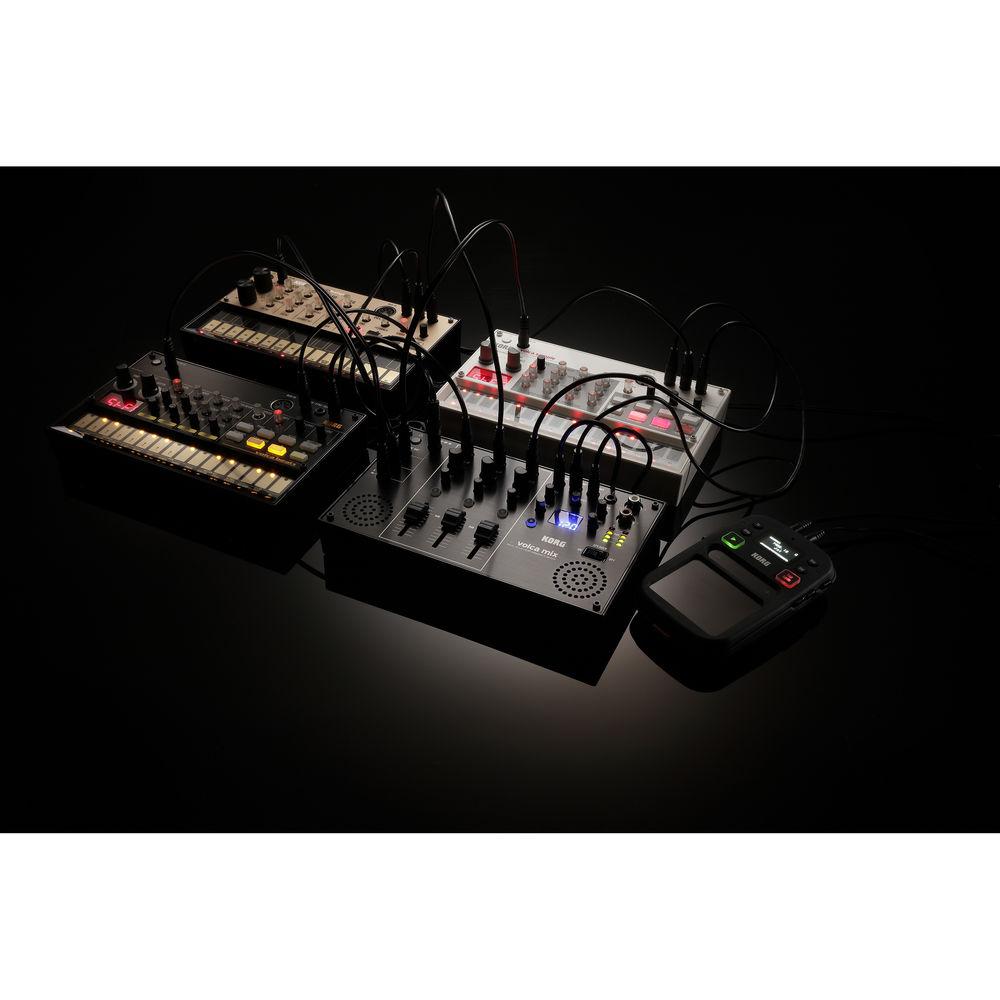

Inputs and outputs are made via 1/8" connectors including a dedicated headphone output and a sync output, which allows the volca mix to be used as a master sync generator to the connected volcas in the setup. A built-in stereo speaker is provided for portable performances. The volca mix can power up to three volca units and ships with a power supply, three audio cables, and three DC-to-DC volca power cables. -
- Compact multi-function, four-channel mixer
- Volume faders and lo-/hi-cut filter for professional-quality performances
- Output and monitor capabilities for use on stage, plus stereo speakers for maximum portability
- Powerful effects and control
- Master chain lets you control dynamics
- Send out and auxiliary in for connecting external effects
- Sync function that can act as the master of a live setup
- Unlocks even more potential out of the volca series
- DC out can supply power for up to three volca units
- Includes AC adapter, DC-to-DC cables, and audio cables
In the Box Korg Volca Mix - Analog Performance Mixer Power Adapter 3 x DC-to-DC Power Cables 3 x Audio Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Volca Mix - Analog Performance Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg Volca Mix Specs | Mixer | Mixer Type: Four-channel analog mixer
Number of Channels: 2 x monaural, 1 x stereo
Monaural Output: volca keys, volca bass, volca beats, volca kick
Stereo Output volca: volca sample, volca fm
Channel Controls: Lo/Hi Cut, Send Level, Mute, Volume (available to boost +6 dB gain)
Bus: Four-channels analog mix bus, monaural mix send bus, stereo aux in/return bus
Master: Volume | | Master Effects | Effect Types:
Analog stereo width expander (width)
Analog dynamic range compressor (dynamics, speed) | | Sync | Play, tempo | | Inputs and Outputs | Mixer Input: 3 x 1/8" / 3.5 mm stereo mini jack, 0 dBu
Aux Input: 1 x 1/8" / 3.5 mm stereo mini jack, 0 dBu
Send Out: 1 x 1/8" / 3.5 mm stereo mini jack, 0 dBu
Sync Out: 1 x 1/8" / 3.5 mm stereo mini jack, (Output Level: 5 V)
Audio Output:
Line Out: L/R, 2 x RCA, (maximum 11.1 dBu)
Headphone: 1 x 1/8" / 3.5 mm stereo mini jack
Speaker: Built-in stereo speaker, on/off | | Power | Power: AC adapter (9 VDC)
Current Consumption: 300 mA
Output Power: 3 x volca DC out (connect with included DC-to-DC cable, up to 800 mA in total, 9 V)
| | Dimensions (W x D x H) | 7.6 x 4.5 x 1.7" / 193.0 x 115.1 x 43.2 mm | | Weight | 12.3 oz / 350.0 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 12.1 x 6.0 x 2.8" |
