User Manual for Korg Volca Sample Digital Sample Sequencer Click to enlarge the picture
Contents of the user manual for the Korg Volca Sample Digital Sample Sequencer
- Product category: Sampling Workstations Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Sampling Workstations
|
User manual for the Korg Volca Sample Digital Sample Sequencer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

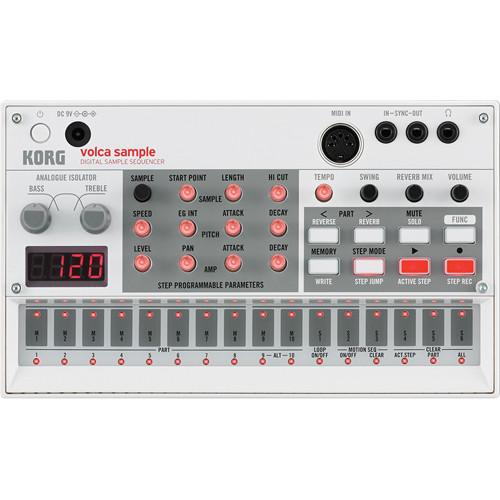

Product description The Volca Sample from Korg is a digital sample sequencer that allows for sequencing up to one-hundred samples. The step sequencer is designed for ease of editing and to allow parts to be inserted or removed "on the fly." Sixteen step-keys enter notes while maintaining visual confirmation of the timing of the notes in a measure. A performance can be recorded in real time. Up to ten of the sequence patterns created can be stored in internal memory.
The motion sequence function records any time-varying changes made to the sound using the knob movements. An active step function allows for skipping steps during the sequence, and the step jump function instantly plays just the key-pressed step. A swing function adjusts the swing playback position, generating the distinctive groove of dance music styles.
A frequency isolator applies changes to the sound by boosting or cutting the low/high ranges with the isolator implemented as an analog circuit. The built-in reverb effect can be switched on/off for each part, and it is possible to save up to six song patterns, each combining up to sixteen sequences. Additional samples can be loaded using the volca sample's dedicated iOS app (the internal sounds are overwritten). - Intuitive sequencer with improvisation potential
- Motion sequencer records and plays back up to eleven parameters
- Active Step and Step Jump functions allow for inserting or removing steps
- Swing function for generating grooves
- Sculpt samples with the Analog Isolator
- Reverse function plays sampled sounds backwards
- MIDI In for sample trigger, sync and parameter changes from any MIDI device
- Synchronized playback with other volca units, electribe, or DAW
- Record, manage, and download samples from volca sample's dedicated iOS app
- Create custom tools with the Korg SYRO library included in the SDK
- Compact size, battery-powered operation, and built-in speaker
In the Box Korg Volca Sample Digital Sample Sequencer 3.5mm Sync Cable 6 x AA Batteries for Verifying Operation Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg Volca Sample Digital Sample Sequencer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg VOLCASAMPLE Specs | Keyboard | Multi-touch | | Sampler | Type
PCM
Maximum Polyphony
8
Number of Samples
100 (user over writable)
Memory Size for Sample
4 MB, maximum 65 seconds
Sampling Frequency
31.25 kHz, 16-bit
Edit
Sample (start point, length, hi-cut), pitch (speed, EG int, attack, decay), amp (level, pan, attack, decay), reverse (on/off) | | Effects | Digital Reverb
On/off, mix
Analog Isolator
Bass, treble | | Sequencer | Number of Parts
10
Number of Steps
16
Number of Recording Patterns
10
Control
Motion sequence, active step, step jump, swing | | Songs | Maximum Number of Sequences
16
Number of Recording Songs
6 | | Connectors | Audio Output
1 x 1/8" / 3.5 mm TRS stereo mini
Sync
1 x 1/8" / 3.5 mm TS mono mini Sync In (20V maximum input level)
1 x 1/8" / 3.5 mm TS mono mini Sync Out (5V maximum output level)
MIDI
1 x 5-pin DIN MIDI Input | | Power Requirements | 6 x AA alkaline or 6 x AA nickel hydride batteries
9V DC power adapter (optional) | | Battery Life | Approximately 10 hours using alkaline batteries | | Dimensions (WxDxH) | 7.6 x 4.5 x 1.8" / 193 x 115 x 45 mm | | Weight | 13.1 oz / 372 g | | | | Package Weight | 1.705 lb | | Box Dimensions (LxWxH) | 10.45 x 6.0 x 2.85" |
