User Manual for Korg XVP-20 Expression and Volume Pedal Click to enlarge the picture
Contents of the user manual for the Korg XVP-20 Expression and Volume Pedal
- Product category: Pedals & Footswitches Korg
- Brand: Korg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Korg Pedals & Footswitches
 |
User manual for the Korg XVP-20 Expression and Volume Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Korg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Korg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Korg product will considerably shorten its lifespan!
|

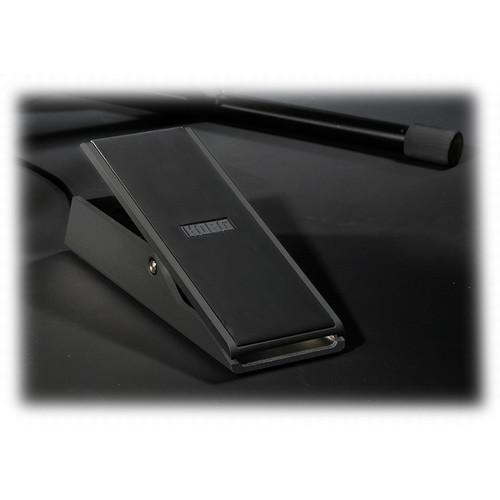

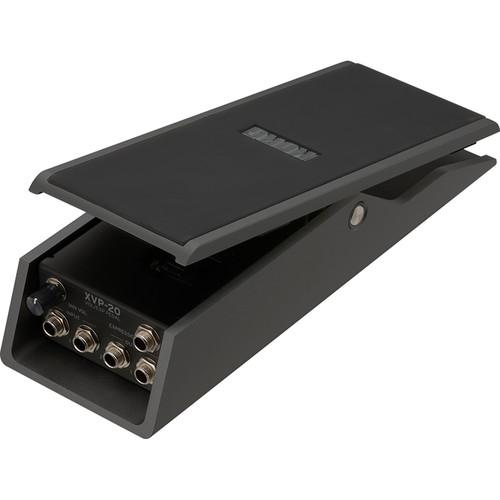

Product description The XVP-20 Expression and Volume Pedal from Korg is an updated and compacted take on the XVP-10, a similar pedal available since 1994. In addition to providing volume control over signals and expression manipulation over a given parameter, this revised model includes many new features, such as rubberized feet to facilitate better floor grip, smoother internal gears, and a black anodized finish. - Multiple Inputs and Outputs

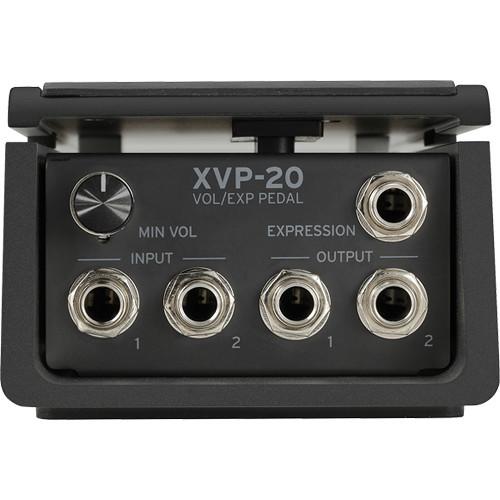

- The XVP-20 provides two sets of inputs and outputs on the volume side, as well as a single expression jack.
- Compact and Durable
- The compact body design facilitates portability, while a sturdy aluminum body provides stability underfoot.
- Exterior and Interior Flourishes

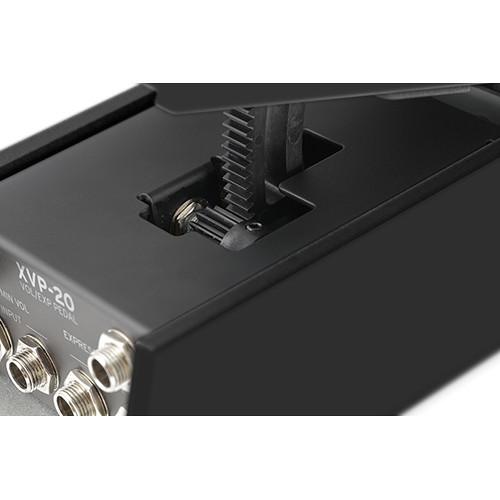

- Rubberized surfaces on the top and bottom of the pedal allow for sturdier grips—both from foot to pedal and from pedal to floor—while on the interior, a more toothful set of gears delivers a varied, smooth response.
- Adjustable Minimum Volume and Torque

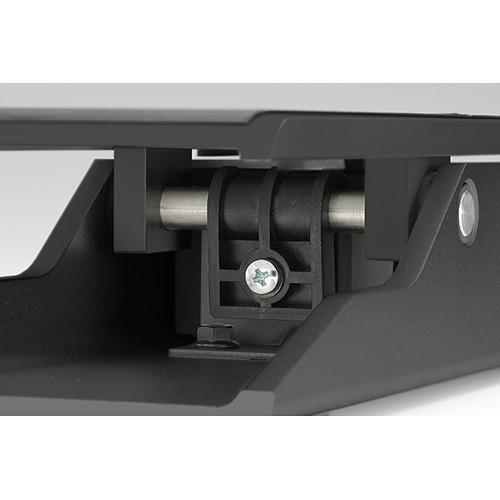

- The minimum volume knob lets you adjust the pedal's volume range, while a torque adjustment screw is also provided, allowing easy adjusting to the operating weight of the pedal to suit your preference.
In the Box Korg XVP-20 Expression and Volume Pedal Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Korg XVP-20 Expression and Volume Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKorg XVP-20 Specs | Input Impedance | 50 kOhms to 100 kOhms | | Input Jacks | 2x 1/4" mono phone | | Output Jack | 2x 1/4" mono phone 1x" 1/4" stereo expression output | | Control | Pedal
Minimum volume
Torque adjustment screw | | Dimensions (W x D x H) | 3.5 x 10.6 x 2.4" / 90 x 268 x 62 mm (including rubber feet) | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 13.4 x 4.5 x 3.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
