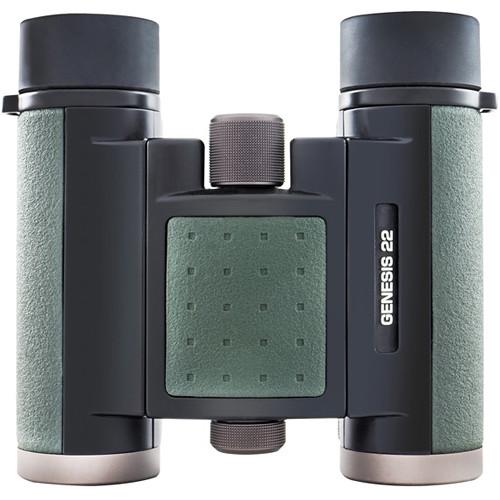

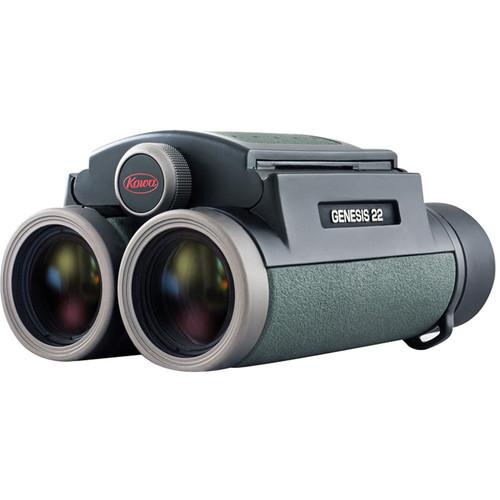

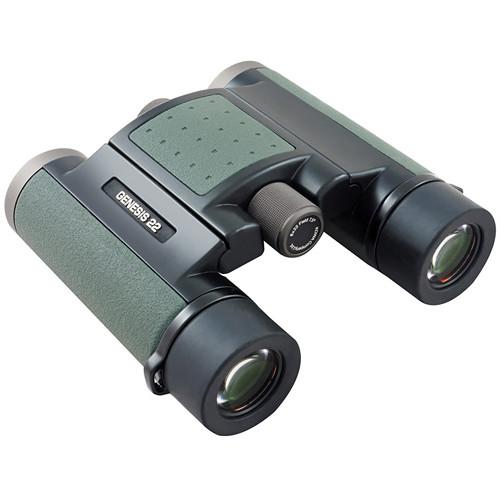

User Manual for Kowa 10x22 Genesis 22 PROMINAR XD Binocular Click to enlarge the picture
Contents of the user manual for the Kowa 10x22 Genesis 22 PROMINAR XD
- Product category: Binoculars Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Binoculars
 |
User manual for the Kowa 10x22 Genesis 22 PROMINAR XD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Representing the smallest aperture in the Genesis family, the Kowa 10x22 Genesis 22 PROMINAR XD Binocular provides the performance required for birding, hunting, or sightseeing without the bulk of mid and full-sized models. To improve image quality and offset the light gathering limitations of the small objectives are complementary technologies that include the use of PROMINAR extra low-dispersion glass, anti-reflection fully multi-coated optics, highly reflective C3 and phase-correction prism coatings that work together to produce crisp, clear, and bright high-contrast images with accurate color rendition. To help reduce the appearance of visible hand-shake that is common with high-power optics such as this, is a wide apparent angle of view and a long eye relief, which also help to produce an immersive observational experience for any user.Designed for extensive outdoor use, the lightweight magnesium alloy chassis is wrapped in a protective rubber armor with a textured palm-pads and bridge to provide a slip-resistant grip. To ensure a compact and highly-packable form-factor, Kowa utilizes Schmidt-Pechan prisms that allow for slimmer optical tubes but deliver the performance of conventional roof prisms. Added to this are dual hinges that enable the barrels to fold tightly under the bridge so when they are not in use, the Genesis 22 take up as little room as possible. The optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature or humidity changes. - Optical Performance
-
- 10x magnification
- 22mm objective lenses
- Compact Schmidt-Pechan roof prism optical path
- PROMINAR XD extra low-dispersion glass reduces chromatic aberration, which causes halos and fringing, for improved color rendition and contrast
- Anti-reflection fully multi-coated optics improve light transmission, color rendition, clarity, and contrast
- Phase-correcting prism coatings eliminate internal light diffraction to improve clarity and contrast
- C3 prism coatings improve internal light transmission to higher than 99% across the entire visible spectrum to improve color rendition, clarity, and contrast
- Wide 60° apparent angle of view
- 314' field of view at 1000 yards
- Short 5' close focus distance
- Use and Handling
-
- Closed-bridge/dual-hinge configuration
- Textured center focusing wheel is easy to manipulate, even when wearing gloves
- Locking center dioptric correction
- Twist-up rubber eyecups for comfortable use, and correct eye relief, with or without eyewear
- Generous 15mm eye relief
- 2.2mm exit pupil
- Construction Details
-
- Prism design is slimmer than traditional roof prisms providing similar performance with thinner optical tubes

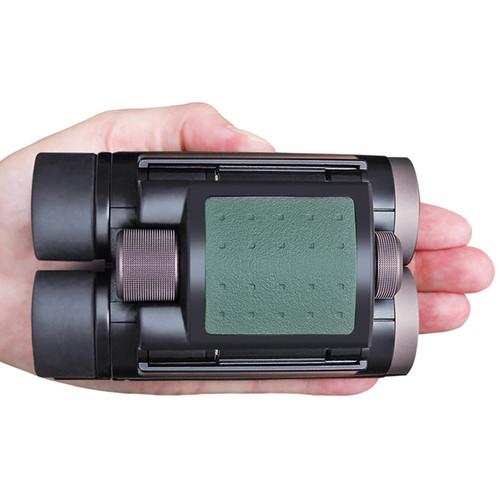

- Dual hinges on the bridge allow the optical tubes to fold tight underneath for an extremely compact form factor when closed
- Lightweight and durable magnesium alloy chassis
- Nitrogen-filled and O-ring sealed to be waterproof, and resistant to internal fogging when moving through extreme temperature changes or environmental conditions
- Protective rubber armor with textured palm-pads and bridge provides a slip-resistant grip
- Oil-resistant KR exterior lens coatings makes it easy for dirt, sap, and oil to be easily cleaned off without smudges or residue
- Lightweight: 11.5 ounces
- Made in Japan
UPC: 879110002538 In the Box Kowa 10x22 Genesis 22 PROMINAR XD Binocular Neck Strap Padded Nylon Case with Strap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 utrxcxtaayvq A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa 10x22 Genesis 22 PROMINAR XD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa GN22-10 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 22 mm | | Angle of View | 6.0° (Actual) | | Field of View | 315.0' @ 1000 yd / 105.0 m @ 1000 m | | Minimum Focus Distance | 4.9' / 1.5 m | | Exit Pupil Diameter | 2.2 mm | | Eye Relief | 15.0 mm | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 4.3 x 4.1 x 1.4" / 11.0 x 10.5 x 3.5 cm | | Weight | 11.46 oz / 325.0 g | | | | Package Weight | 1.41 lb | | Box Dimensions (LxWxH) | 6.25 x 5.8 x 3.05" |
