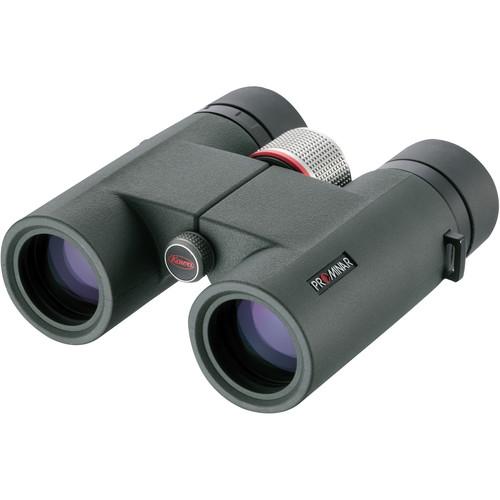

User Manual for Kowa 10x32 BD32-10 XD Prominar Binocular Click to enlarge the picture
Contents of the user manual for the Kowa 10x32 BD32-10 XD Prominar Binocular
- Product category: Binoculars Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Binoculars
|
User manual for the Kowa 10x32 BD32-10 XD Prominar Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Combining an advanced optical design with a sleek form factor, the 10x32 BD32-10 XD Prominar Binocular from Kowa pairs their Prominar XD elements with a phase-corrected Schmidt-Pechan roof prism design. This combination helps to achieve a high degree of viewing clarity through the reduction of chromatic aberrations. A C3 coating has also been applied to the glass elements to maintain brightness, improve contrast, and produce consistent and accurate colors. Combined with the 10x magnification, this versatile binocular also features a close minimum focusing distance of 4.9' and a wide apparent angle of view of 60°, making it well-suited for general, distant, and near viewing applications.
A rubberized chassis offers durable and secure handling and the housing has also been nitrogen filled for water and fog resistance. Twist-up multi-step eyecups benefit clear viewing in bright lighting conditions and a KR coating has also been applied to the exposed optical surfaces to protect against dust and dirt, and to aid in cleaning. - Optical Performance
-
- 10x magnification
- 32mm diameter objectives
- Roof prism optical design
- Two Prominar XD glass elements are used to reduce chromatic aberrations, improve contrast, and provide greater viewing clarity
- A C3 coating has been applied to the Schmidt-Pechan prism in order to increase reflectivity for brighter viewing with more accurate colors
- Fully multicoated optics also contribute to brighter, more color neutral viewing with high contrast
- Phase-coated prism surfaces reduces interference to bring the light paths into phase
- 6° angle of view, 60° apparent angle of view
- Close focusing distance of 4.9'
- 15mm eye relief
- Use and Handling
-
- Twist-up multi-step eyecups
- Compatible with optional tripod adapter
- Center focus design and internal focus system
- Compatible with optional photo adapters for smartphone viewing and recording through the binocular
- Construction Details
-
- Nitrogen filled housing for water and fogproof performance
- KR Coating has been applied to the eyepiece and objective lenses to aid in cleaning and prevent dust or dirt from affecting viewing
- Rubber-coated chassis
UPC: 879110002149 In the Box Kowa 10x32 BD32-10 XD Prominar Binocular Eyepiece Cap 2 x Objective Lens Caps Neck Strap Soft Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa 10x32 BD32-10 XD Prominar Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa BD32-10 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 32 mm | | Angle of View | 6° (actual)
60° (apparent) | | Field of View | 315.0' @ 1000 yd / 105.0 m @ 1000 m | | Minimum Focus Distance | 4.9' / 1.5 m | | Exit Pupil Diameter | 3.2 mm | | Eye Relief | 15 mm | | Interpupillary Adjustment | 8.8 to 11.3 mm / 22.4 to 28.7" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 4.7 x 4.7 x 1.9" / 118.0 x 118.0 x 47.0 mm | | Weight | 1.17 lb / 530 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 7.3 x 5.8 x 2.8" |
