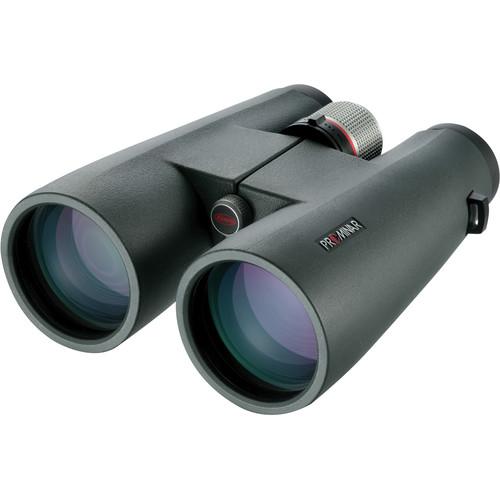

User Manual for Kowa 12x56 BD56-12 XD Prominar Binocular Click to enlarge the picture
Contents of the user manual for the Kowa 12x56 BD56-12 XD Prominar Binocular
- Product category: Binoculars Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Binoculars
|
User manual for the Kowa 12x56 BD56-12 XD Prominar Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Characterized by a bright and long-reaching design, the Kowa 12x56 BD56-12 XD Prominar Binocular features an advanced optical system with a series of multicoatings to provide clear viewing in a variety of conditions. Dual Prominar XD elements are used to minimize chromatic aberrations for greater color accuracy, and the phase-corrected Schmidt-Pechan roof prism design avails consistent brightness with a sleek form factor. A C3 coating has also been applied to the glass elements to improve contrast and produce consistent and accurate colors. The 12x magnification and wide 66° AAoV is ideal for viewing distant subjects and when all combined with the large 56mm diameter objective lenses, this binocular is especially adept when viewing in difficult and low-light conditions.
A rubberized chassis offers durable and secure handling and the housing has also been nitrogen filled for water and fog resistance. Twist-up multi-step eyecups benefit clear viewing in bright lighting conditions and a KR coating has also been applied to the exposed optical surfaces to protect against dust and dirt, and to aid in cleaning. - Optical Performance
-
- 12x magnification
- 56mm diameter objectives
- Roof prism optical design
- Two Prominar XD glass elements are used to reduce chromatic aberrations, improve contrast, and provide greater viewing clarity
- A C3 coating has been applied to the Schmidt-Pechan prism in order to increase reflectivity for brighter viewing with more accurate colors
- Fully multicoated optics also contribute to brighter, more color neutral viewing with high contrast
- Phase-coated prism surfaces reduces interference to bring the light paths into phase
- 5.5° angle of view, 66° apparent angle of view
- Minimum focusing distance of 9.8'
- 16mm eye relief
- Use and Handling
-
- Twist-up multi-step eyecups
- Compatible with optional tripod adapter
- Center focus design and internal focus system
- Compatible with optional photo adapters for smartphone viewing and recording through the binocular
- Construction Details
-
- Nitrogen filled housing for water and fogproof performance
- KR Coating has been applied to the eyepiece and objective lenses to aid in cleaning and prevent dust or dirt from affecting viewing
- Rubber-coated chassis
UPC: 879110002125 In the Box Kowa 12x56 BD56-12 XD Prominar Binocular Eyepiece Cap 2 x Objective Lens Caps Neck Strap Soft Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa 12x56 BD56-12 XD Prominar Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa BD56-12 Specs | Prism Type | Roof | | Magnification | 12 x | | Objective Lens Diameter | 56 mm | | Angle of View | 5.5° (actual)
66° (apparent) | | Field of View | 288.7' @ 1000 yd / 96.2 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 4.7 mm | | Eye Relief | 16 mm | | Interpupillary Adjustment | 8.8 to 11.1 mm / 22.4 to 28.3" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 6.5 x 5.8 x 2.6" / 164.0 x 148.0 x 66.0 mm | | Weight | 2.31 lb / 1050 g | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 8.3 x 7.6 x 3.2" |
