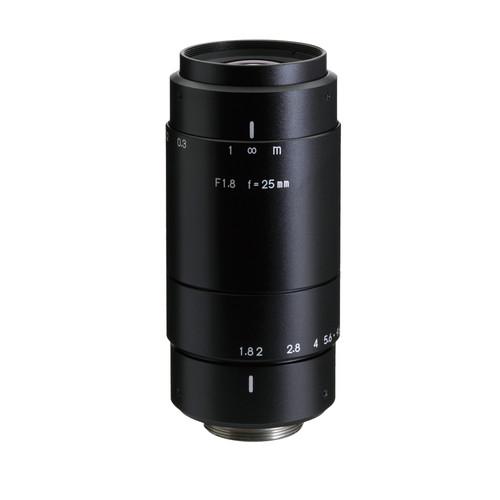

User Manual for Kowa 6MP Plus SC Series LM25SC C-Mount 25mm f 1.8-16 Manual Iris & Focus Fixed Lens Click to enlarge the picture
Contents of the user manual for the Kowa 6MP Plus SC Series LM25SC
- Product category: Lenses Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Lenses
|
User manual for the Kowa 6MP Plus SC Series LM25SC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The 6MP Plus SC Series LM25SC C-Mount 25mm f/1.8-16 Fixed Lens from Kowa features manual iris and focus, and can produce images at resolutions greater than 6MP. This compact lens features an XD aspherical or extra low dispersion glass in a metal body to deliver accurate images. The images captured using this lens are clear throughout the center and edges. The locking screws prevent the manual adjustments from slipping out of alignment and help the lens maintain the user settings. - Floating Mechanism Design
- The floating mechanism design eliminates optical aberrations from a close distance to infinity.
- XD Extra Low Dispersion
- The wide-band multi-coating effectively reduces glare and refraction.
- Low Distortion
- High precision aspherical lens reduces distortion and produces high-definition pictures.
- High Resolution
- The lens produces crisp and clear images even at long distances.
- Clear Resolution at Center and Corner
- The images produced using this lens are clear throughout the center and edges.
- Metal Body with Locking Screws
- Prevents manual adjustments from slipping out of alignment and helps the lens maintain exact user settings.
- Aspherical Lens
- The lens offers low distortion and produces high-definition pictures.
- Metal Housing
- The metal housing increases the durability and life of the lens.
- Fixed Focus Lens
- Preset focus remains fixed to exact specifications throughout the life of the lens so the user does not have to worry about managing the focus of the lens.
In the Box Kowa 6MP Plus SC Series LM25SC C-Mount 25mm f/1.8-16 Manual Iris & Focus Fixed Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa 6MP Plus SC Series LM25SC C-Mount 25mm f 1.8-16 Manual Iris & Focus Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LM25SC Specs | Mount Type | C-Mount | | Format | 1" | | Focal Length | 25 mm | | Lens Type | Fixed | | Image Size (H x V) | 0.5 x 0.4" (12.8 x 9.6 mm) | | Iris Range | f/1.8 to 16 | | Focusing Range | 0.49' (0.15 m) to infinity | | Iris Control | Manual | | Focus Control | Manual | | Shooting Distance Range | At M.O.D (D x H x V): 4.3 x 3.4 x 2.5" (108 x 86 x 64 mm) | | Angle of View (D x H x V) | 35.8° x 28.9° x 21.8° | | Resolution | Center: 160 lp/mm; Corner: 120 lp/mm | | Distortion | TV Distortion: -0.34% | | Back Focus (in air) | 24.3 mm | | Filter Thread | M34 x P0.5 mm | | Flange Back Length | 17.53 mm (in air) | | Diameter | Front: 1.1" (27.0 mm)
Rear: 0.7" (18.2 mm) | | Exit Pupil | -63.9 mm | | Temperature Range | 14 to 122°F (-10 to 50°C) | | Dimensions (Ø x D) | 1.7 x 3.5" (4.3 x 8.9 cm) | | Weight | 8.6 oz (245.0 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 4.8 x 2.8 x 2.6" |
