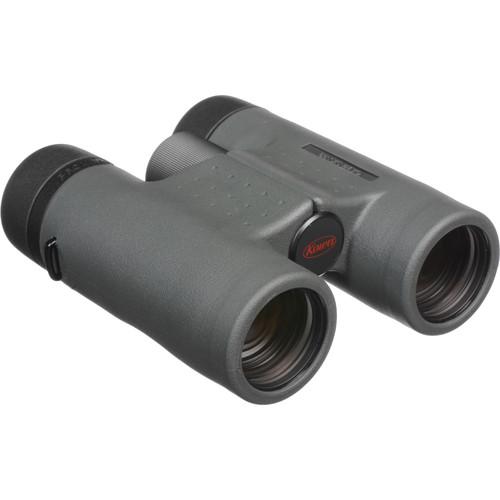

User Manual for Kowa 8x33 Genesis 33 PROMINAR XD Binocular Click to enlarge the picture
Contents of the user manual for the Kowa 8x33 Genesis 33 PROMINAR XD
- Product category: Binoculars Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Binoculars
 |
User manual for the Kowa 8x33 Genesis 33 PROMINAR XD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|

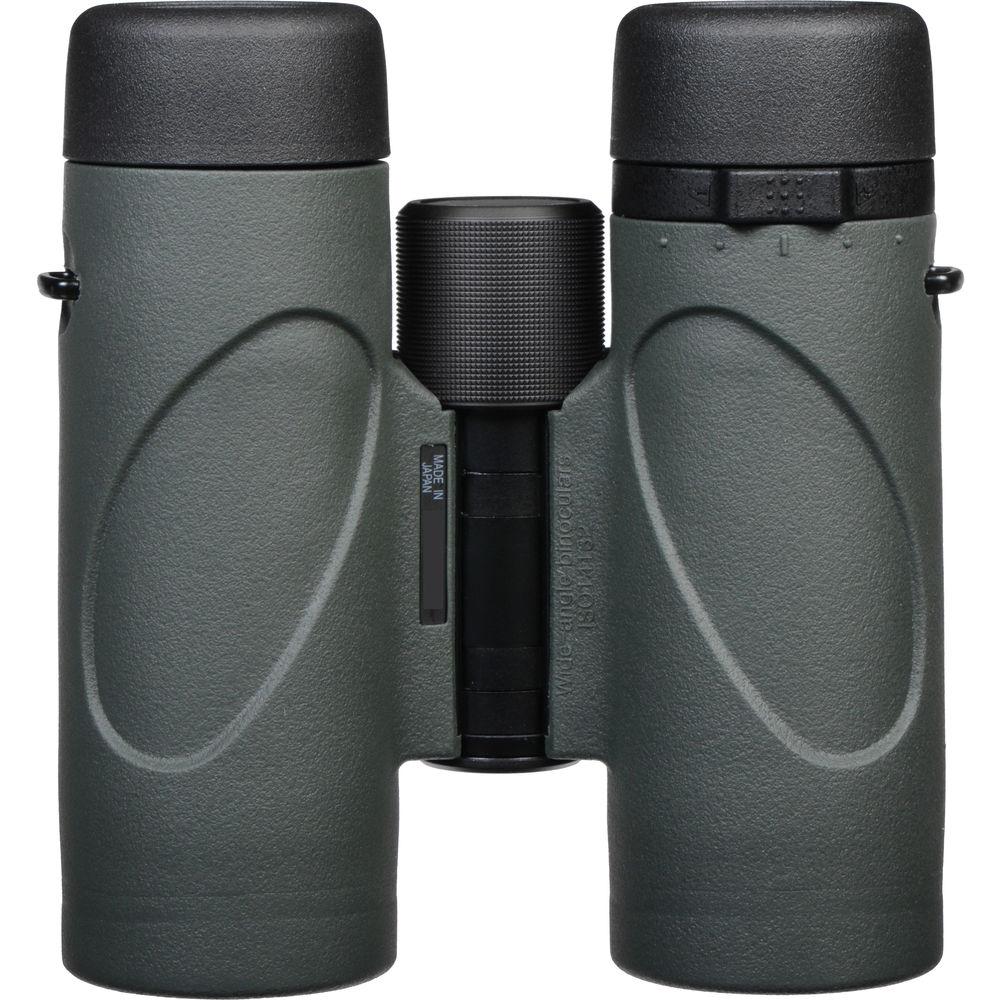

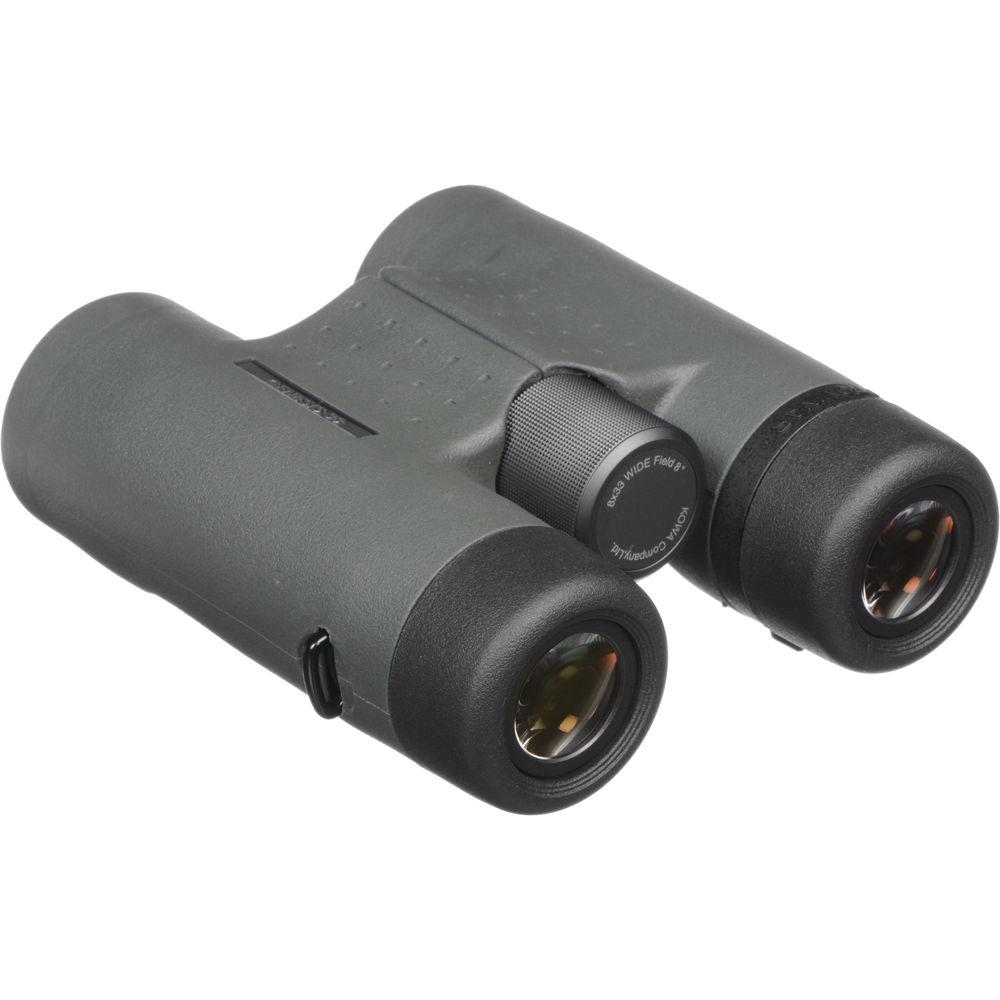

Product description The B&H Binocular Buying Guide Read More The Kowa 8x33 Genesis 33 PROMINAR XD Binocular strikes an ideal balance between power and portability with a moderate magnification and objective lenses that push them almost into the full-size category. To improve image quality and boost the light gathering abilities are complementary technologies that include the use of PROMINAR extra low-dispersion glass, anti-reflection fully multi-coated optics, highly reflective C3 prism coatings, and phase-corrected prism coatings that work together to produce crisp, clear, and bright high-contrast images with accurate color rendition. Added to this performance is a wide apparent angle of view and a long eye relief, which produce an immersive observational experience for any user.Designed for extensive outdoor use, the aluminum alloy chassis is wrapped in a protective rubber armor, and the body is ergonomically designed to offer a comfortable feel in the hand with a secure, slip-resistant grip. The optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature or humidity changes. Tethered objective lenses and a one-piece ocular rainguard ensure that the lenses stay protected while being near at hand for fast use. - Optical Performance
-
- 8x magnification
- 33mm objective lenses
- Compact Schmidt-Pechan roof prism optical path
- PROMINAR XD extra low-dispersion glass reduces chromatic aberration, which causes halos and fringing, for improved color rendition and contrast
- Anti-reflection fully multi-coated optics improve light transmission, color rendition, clarity and contrast
- Phase-correction prism coatings eliminate internal light diffraction to improve clarity and contrast
- C3 prism coatings improve internal light transmission to higher than 99% across the entire visible spectrum to improve color rendition, clarity, and contrast
- Wide 64° apparent angle of view
- 420' field of view at 1000 yards
- Short 5' close focus distance
- Use and Handling
-
- Closed-bridge/single-hinge configuration
- Large textured center focusing wheel is easy to manipulate, even when wearing gloves
- Locking right-eye dioptric correction
- Twist-up rubber eyecups for comfortable use and correct eye relief with or without eyewear
- Generous 15mm eye relief
- Comfortable 4.1mm exit pupil
- Construction Details
-
- Lightweight and durable aluminum alloy chassis
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature or humidity changes
- Protective slip-resistant rubber armor
- Ergonomic body design adds comfort and grip stability
- Oil-resistant KR exterior lens coatings makes it easy for dirt, sap, and oils to be easily cleaned off without smudges or residue
- Tethered objective lens caps and one-piece ocular rainguard
- Weight: 21 ounces

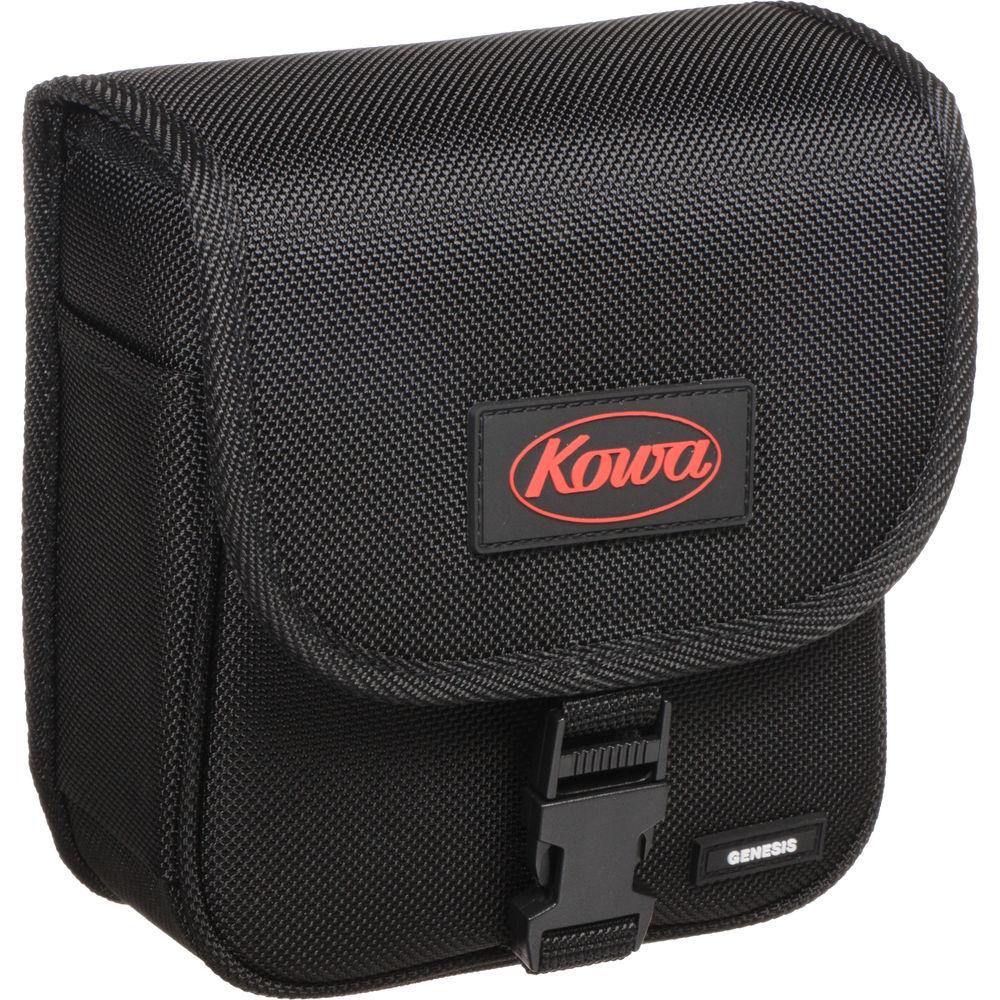

UPC: 879110003382 In the Box Kowa 8x33 Genesis 33 PROMINAR XD Binocular Padded Nylon Case with Strap Neoprene Strap 2 x Tethered Push-on Objective Lens Caps Eyepiece Rainguard Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 erfvvedbryfery A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 381.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa 8x33 Genesis 33 PROMINAR XD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa GN33-8 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 33 mm | | Angle of View | 8.0° (Actual) | | Field of View | 420.0' @ 1000 yd / 140.0 m @ 1000 m | | Minimum Focus Distance | 4.9' / 1.5 m | | Exit Pupil Diameter | 4.1 mm | | Eye Relief | 15.0 mm | | Interpupillary Adjustment | 56 to 73 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 5.2 x 4.8 x 2.0" / 13.1 x 12.1 x 5.1 cm | | Weight | 20.8 oz / 590 g | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 8.3 x 7.8 x 3.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
