User Manual for Kowa 8x42 BD42-8XD PROMINAR Binocular Click to enlarge the picture
Contents of the user manual for the Kowa 8x42 BD42-8XD PROMINAR Binocular
- Product category: Binoculars Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Binoculars
 |
User manual for the Kowa 8x42 BD42-8XD PROMINAR Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|

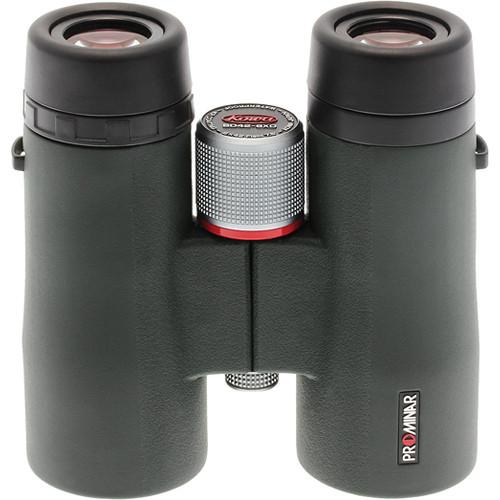

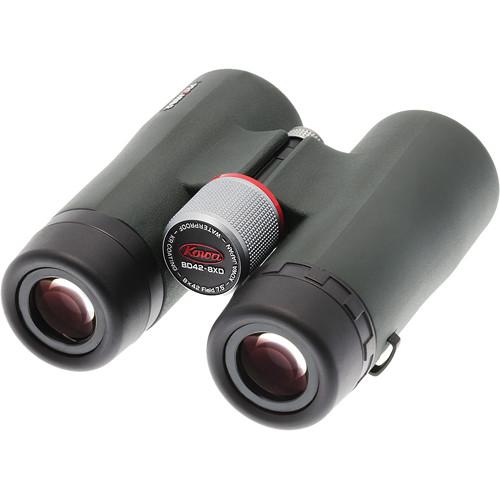

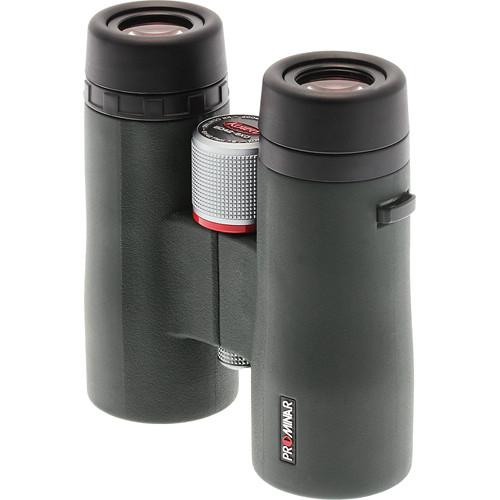

Product description The B&H Binocular Buying Guide Read More xsbuvybsuceytzwutuyr The 8x42 BD42-8XD PROMINAR Binocular from Kowa combines precision glass and prisms, with optical and prism coatings to produce a binocular that performs well in all light conditions with true color representation. Extra-low dispersion XD glass elements reduce chromatic aberration and image distortion at the edges of the field of view. The lenses are fully multi-coated to maximize the amount of light coming into the optical tubes. The roof prisms are phase-corrected to increase the resolution and contrast, while the C3 coatings reflect more that 99% of the light moving through them. This combination of glass, prisms, and coatings produce high-contrast images that are bright and crisp, with true-color transmission.The magnesium-alloy housing is light and durable, and the rubber armoring on the exterior provides a sure grip and protection from impacts. The optical tubes are nitrogen-filled and o-ring sealed to be waterproof, and resistant to internal fogging when moving through extreme temperature changes or environmental conditions. Its center focus wheel is textured for easy handling in cold and wet conditions, even while wearing gloves. - Optical Performance
-
- 8x magnification
- 42mm objective lenses
- Phase-corrected Schmidt-Pechan roof prism design
- Highly-reflective C3 prism coatings for bright images with true color representation
- Kowa's XD extra-low dispersion (ED) glass reduces chromatic aberration
- Fully multicoated optics
- Wide 60° apparent angle of view
- 393-foot field of view at 1000 yards
- Use and Handling
-
- Textured center focus wheel for easy focusing in cold and wet conditions, or with gloves
- Kowa's KR coatings protect external lens surfaces from dirt, oils, residue, and make the lenses easy to clean
- Twist-up eyecups for custom eye relief with or without eye-wear
- Right-eye dioptric adjustment for fine focusing capabilities
- 19 eye relief
- 5.3 mm exit pupil
- Construction Details
-
- Lightweight and durable magnesium alloy housing
- Thixomolded injection-mold manufacture produces a reliable and durable housing
- Nitrogen-filled and o-ring sealed for water and fogproof performance
- Weight: 23-ounces
UPC: 879110000848 In the Box Kowa 8x42 BD42-8XD PROMINAR Binocular Soft Carry Case Padded Neck Strap Eyepiece Cover 2 x Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa 8x42 BD42-8XD PROMINAR Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa BD42-8XD Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.5° (Actual) | | Field of View | 393.7' @ 1000 yd / 131.2 m @ 1000 m | | Minimum Focus Distance | 5' / 1.5 m | | Exit Pupil Diameter | 5.3 mm | | Eye Relief | 19.0 mm | | Interpupillary Adjustment | 57 to 75 mm / 2.2 to 3" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.2 x 5.0 x 2.0" / 13.2 x 12.6 x 5.1 cm | | Weight | 23.3 oz / 660.56 g | | | | Package Weight | 2.09 lb | | Box Dimensions (LxWxH) | 8.1 x 6.0 x 2.9" |
