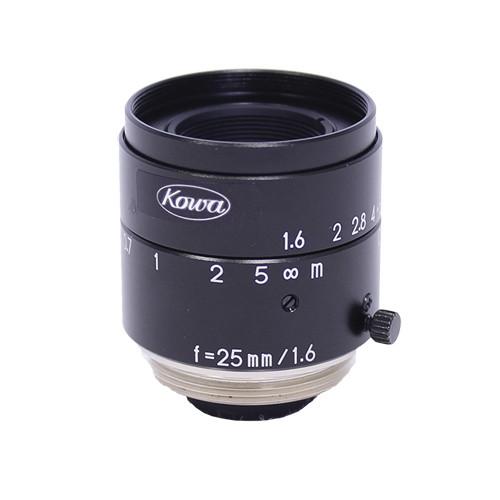

User Manual for Kowa C-Mount 25mm f 1.6-16 2 3" JC Series Fixed Lens Click to enlarge the picture
Contents of the user manual for the Kowa C-Mount 25mm f 1.6-16 2
- Product category: Lenses Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Lenses
|
User manual for the Kowa C-Mount 25mm f 1.6-16 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The C-Mount 25mm f/1.6-16 2/3" JC Series Fixed Lens from Kowa is designed for use with 2/3” sensors. This lens has a focal length of 25mm and aperture range of f/1.6-16. Thanks to the lightweight and compact design, the lens can be used for machine vision and factory automation applications. - Helps in capturing crisp and clear images at high resolutions
- Lightweight and compact design makes it suitable for a wide variety of applications
- Ensures corner brightness with no fading along the edges of the image
- Low distortion helps achieve accurate image reproduction
In the Box Kowa C-Mount 25mm f/1.6-16 2/3" JC Series Fixed Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa C-Mount 25mm f 1.6-16 2 3" JC Series Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LM25JC Specs | Focal Length | 25 mm | | Lens Type | Fixed | | Sensor Size | 2/3" | | Image Circle | Φ11 mm | | Image Size | 0.25 x 0.34" (6.60 x 8.80 mm) | | Iris Range | f/1.6-16 | | Focusing Range | 0.98' (0.30 m) to infinity | | Iris Control | Manual | | Focus Control | Manual | | Lens Elements/Groups | 5 groups, 5 elements | | Horizontal Angle of View | 21.0° | | Vertical Angle of View | 15.7° | | Diagonal Angle of View | 26.3° | | Shooting Distance Range | @ M.O.D
Horizontal: 4.68" (119.00 mm) @ 0.98' (0.30 m)
Vertical: 3.50" (89.00 mm) @ 0.98' (0.30 m)
Diagonal: 5.90" (150.00 mm) @ 0.98' (0.30 m) | | Resolution | 100 LP/mm, 60 LP/mm (center, corner) | | Distortion | -0.6 % (TV) | | Back Focus | 10.32 mm in air | | Mount | C-mount | | Filter Thread | M27 x P0.5 mm | | Minimum Object Distance | 0.98' (0.30 m) | | Flange Back Length | 17.526 mm in air | | Effective Diameter | Front: Φ14.6 mm, Rear: Φ10.7 mm | | Exit Pupil | -26.2 mm | | Temperature Range | 14 to 113°F (-10 to +50°C) | | Storage Temperature Range | -4 to 140°F (-20 to 60°C) | | Dimensions (Ø x L) | 1.12 x 1.10" (28.50 x 2800 mm) | | Weight | 2.0 oz (58.0 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 2.4 x 1.9 x 1.6" |
