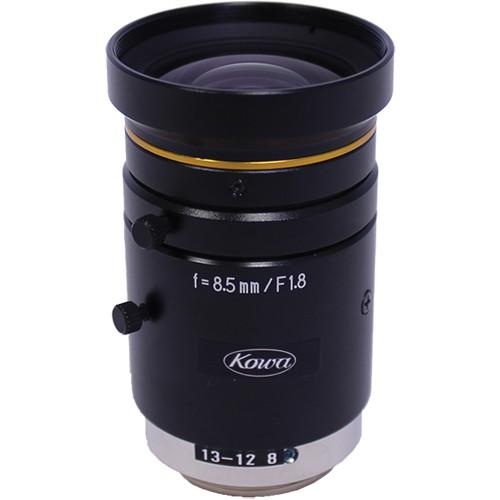

Product description The C-Mount 8.5mm f/1.8-22 2/3" 10MP JC10M Series Fixed Lens from Kowa provides 200 lp/mm resolution (center) and low distortion in order to maximize performance for high-end applications. Incorporating Kowa's broadband coating and floating mechanism design, the JC10M series lens reduces chromatic aberration over a wide range (close range to infinity) and maintains high transmission over a wide light range (from visible to near IR). The lens has a focal length of 8.5mm and aperture range of f/1.8-22. - Floating Mechanism Design: Virtually eliminates optical aberrations from close range to infinity
- XD Extra Low Dispersion: Wide-band multi-coating effectively reduces glare and refraction
- High-precision aspherical lens reduces distortion and produces a high-definition picture
- 200 lp/mm resolution and low distortion help in maximizing performance for high-end applications
- Incorporates wide-band coating and a floating mechanism design to maintain high transmission from visible to near IR
- Short minimum object distance and compact design, along with aspherical lens elements, allow for easy installation in compact machine vision systems
- Suitable for machine vision & factory automation applications
In the Box Kowa C-Mount 8.5mm f/1.8-22 2/3" 10MP JC10M Series Fixed Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa C-Mount 8.5mm f 1.8-22 2 3" 10MP JC10M Series Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LM8CJ10M Specs | Focal Length | 8.5 mm | | Lens Type | Fixed | | Elements | 11 elements, 9 groups | | Sensor | 2/3" (Ø11 mm) | | Image Size | 0.25 x 0.34" (6.60 x 8.80 mm) | | Iris Range | f/1.8-22 | | Focusing Range | 0.32' (0.10 m) to infinity | | Iris Control | Manual | | Focus Control | Manual | | Shooting Distance Range | H x V x D: 5.24 x 3.92 x 6.55" (133.20 x 99.60 x 166.50 mm) @ M.O.D | | Angle of View | Horizontal: 54°
Vertical: 41.9°
Diagonal: 64.6° | | Resolution | Center: 200 lp/mm, Corner: 160 lp/mm | | Distortion | 0.31 % | | Back Focus | 12.1 mm in air | | Mount | C-mount | | Thread Size | M34xP0.5 mm | | Minimum Focus Distance | 0.32' (0.10 m) | | Flange Back Length | 17.526 mm in air | | Effective Diameter | Front: Φ26.7 mm, Rear: Φ13.1 mm | | Exit Pupil | -128.2 mm | | Lens Coating | Wide-band multi coating | | Temperature Range | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (Ø x L) | 1.41 x 2.20" (36.00 x 56.00 mm) | | Weight | 4.0 oz (115.0 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 3.4 x 1.9 x 1.8" |
