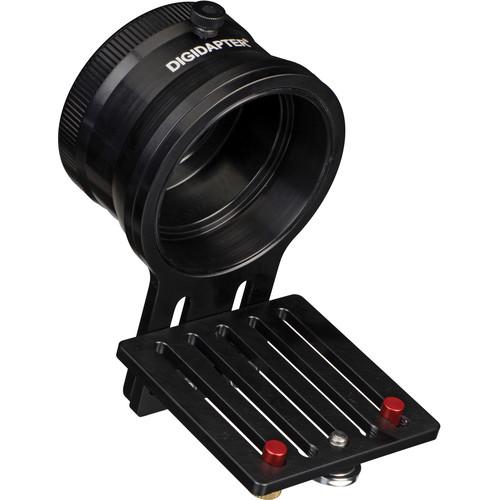

Product description A Guide to Birding with Spotting Scopes Read More The Kowa Digidapter for TSN-880 and TSN-770 Series Spotting Scopes is a digiscoping adapter system that consists of three main components, a camera platform, an outer ring, and an inner ring. When combined, they allow a variety of camera types, including point and shoots, mirrorless, and DSLR cameras to effectively use a Kowa TSN-880 or TSN-770 series spotting scope as a telephoto lens.
Constructed from anodized, billet aluminum alloy for durability, the components of the Kowa Digidapter for TSN-880 and TSN-770 Series Spotting Scopes provide accurate, consistent alignment due to the ability to adjust the camera platform and outer ring according to a camera's dimensions so that the camera's lens is aimed precisely into the spotting scope's eyepiece. Both the camera platform and outer ring are securely connected to the eyepiece by a custom inner ring that is reversible so that the distance between the end of the eyepiece and your camera can be varied. This provides the ability to use not only smaller point and shoot as well as mirrorless cameras, but larger DSLRs, which even with relatively short lenses installed, require greater distance from the eyepiece for effective digiscoping.
Though preassembled and easy to install, the Kowa Digidapter for TSN-880 and TSN-770 Series Spotting Scopes saves time after the initial set up by allowing you to record your camera's position on the platform by means of included location pins. This feature allows for the camera to be removed from the platform for quick battery or memory card changes and then moved back into place without the need to reestablish focus. - Allows a Kowa TSN-880 or TSN-770 series spotting scope to be used as a telephoto lens by point and shoot, mirrorless, or DSLR cameras
- Accurately and securely connects a camera with a maximum lens diameter of 2.590" and maximum length of 3.525" from the center of its tripod socket to the end of its lens. An optional table extender, MFR #TE, increases this length to 4.150"
- Set up is easy and fast, with further time saved through the use of included location pins that allow your camera's position to be recorded on the camera platform. After a battery or memory card change, camera focus does not need to be reestablished
- The outer ring can be rotated to alternate between portrait and landscape orientations
- Anodized billet aluminum alloy construction provides durability and minimizes reflections from the surfaces of the adapter components into your camera
In the Box Kowa Digidapter for TSN-880 and TSN-770 Series Spotting Scopes Allen Wrench 2 x Tightening Screw 2 x Locating Pin D-Ring Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa Digidapter for TSN-880 and TSN-770 Series Spotting Scopes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa DK Specs | Material | Billet aluminum alloy | | Dimensions | 5.0 x 3.0 x 4.9" (12.7 x 7.6 x 12.4 cm) | | Weight | 13.6 oz (385.6 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.8 x 4.3 x 3.5" |
