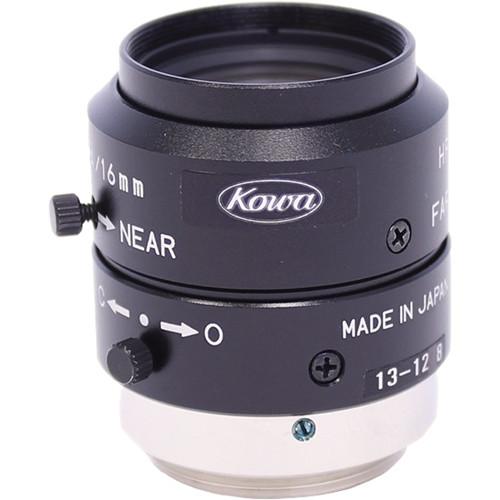

User Manual for Kowa LM16JCM 16mm f 1.4 C-Mount Lens for 2 3" Sensors Click to enlarge the picture
Contents of the user manual for the Kowa LM16JCM 16mm f 1.4 C-Mount
- Product category: Industrial Lenses Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Industrial Lenses
|
User manual for the Kowa LM16JCM 16mm f 1.4 C-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The LM16JCM 16mm f/1.4 C-Mount Lens for 2/3" Sensors from Kowa is designed to function in demanding environments such as machine vision, ITS, security/surveillance, life science, and motion capture. It supports sensors with resolutions up to 3MP. The lens features a compact mechanical design and sturdy construction to withstand extreme conditions while providing sharp images.
The lens has an f-stop range of 1.4 to 16, and the focus and iris settings are lockable, so you don't have to worry about them shifting during operation. The M25.5 x 0.5 filter thread allows you to add filters to the front of the lens to physically protect your lens element. - Applications
-
- Machine vision
- Security/surveillance
- ITS
- Motion capture
- Design Characteristics
-
- Robust mechanics for rough industrial environment
- Compact design and low weight
- Focus and iris settings are lockable
- Designed for sensors up to 2/3"
- Low distortion
- Supports sensors with 3MP resolution
- Excellent corner brightness
In the Box Kowa LM16JCM 16mm f/1.4 C-Mount Lens for 2/3" Sensors Front Lens Cap Rear Lens Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa LM16JCM 16mm f 1.4 C-Mount Lens for 2 3" Sensors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LM16JCM Specs | Focal Length | 16mm | | f/Stop Range | f/1.4 to f/16 | | Mount | C-Mount | | Picture Size | 0.26 x 0.35" / 6.6 x 8.8 mm | | Resolution | Center: 120 LP/mm
Corner: 100 LP/mm | | Angle of View | Horizontal: 30°
Vertical: 22.7°
Diagonal: 37° | | Minimum Object Distance | 0.7' / 0.2 m | | Object Dimensions at M.O.D. | Horizontal: 4.4" / 112.8 mm
Vertical: 3.3" / 84.4 mm
Diagonal: 5.6" / 141.2 mm | | Elements/Groups | Eight elements in seven groups | | Front Filter Thread Size | M25.5 x 0.5 | | Flange Focal Distance | 0.690" / 17.526 mm | | Back Focus (in air) | 0.5" / 13.1 mm | | Effective Diameter | Front: 0.8" / 20.2 mm
Rear: 0.6" / 15.5 mm | | Exit Pupil | 13.4" / 340 mm | | Temperature | Operating: 14 to 113°F / -10 to 45°C
Storage: -40 to 140°F / -40 to 60°C | | Weight | 2.9 oz / 81 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 2.4 x 1.9 x 1.6" |
