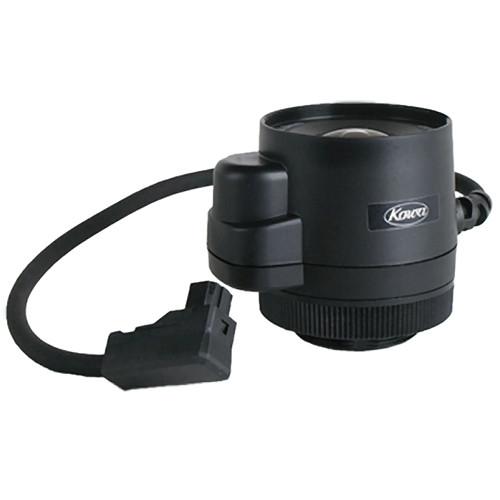

User Manual for Kowa LM3PB 1 3" Fixed Focus Auto-Iris Lens Click to enlarge the picture
Contents of the user manual for the Kowa LM3PB 1 3" Fixed Focus
- Product category: Lenses Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Lenses
|
User manual for the Kowa LM3PB 1 3" Fixed Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The Kowa LM3PB 1/3" Fixed Focus Auto-Iris Lens (2.8mm) provides optimized image quality and simple operation with its fixed focal length, eliminating the need for focus adjustments. In the Box Kowa LM3PB 1/3" Fixed Focus Auto-Iris Lens (2.8mm) 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa LM3PB 1 3" Fixed Focus Auto-Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LM3PB Specs | Sensor Size | 1/3" | | Focal Length | f=2.8 mm | | Maximum Diameter (Ratio) | F=1:1.4 | | Resolution | Center: 100 LP/mm
Corner: <40 LP/mm | | Picture Size | 3.6 x 4.8 Φ6 | | Element | 6 group, 7 elements | | Angle | Diagonal: 121.8°
Horizontal: 97.4°
Vertical: 72.8° | | Distortion | -15.8% | | Shooting Distance Range | At minimum obiect distance
Diagonal: 29.33” (745 mm)
Horizontal: 18.58” (472 mm)
Vertical: 12.05” (306 mm) | | Minimum Object Distance | 0.66' (0.2 m) | | Filter Screw Size | M35.5 x 0.5 | | Flange Back Length | 0.49" (12.5 mm) | | Back Focus | 0.35" (8.82 mm) | | Effective Diameter | Front: Φ17.6
Rear: Φ7.5 | | Mount | CS-mount | | Exit Pupil Position | -1.18" (-30 mm) | | Temperature Range | 14 to 113°F (-10 to 45°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Features | Stopper strength: 10 kgf/cm
Operating torque: 100 to 1000 gf/cm (focus) | | Driving Coil | Resistance: 190 Ω (68°F/20°C)
Color: Red, black ( red + open) | | Dumping Coil | Resistance: 1150 Ω (68°F/20°C)
Color: Yellow, green ( yellow + open) | | Driving Voltage | To open: >4 V
To close: <0 V (with closing spring) | | Dimensions (Ø x L) | 1.45 x 1.53" (37 x 39 mm) | | Weight | 2.43 oz (69 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 2.75 x 2.75 x 2.75" |
