User Manual for Kowa LM4NCL C-Mount 3.5mm Fixed Focal Lens Click to enlarge the picture
Contents of the user manual for the Kowa LM4NCL C-Mount 3.5mm Fixed Focal
- Product category: Lenses Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Lenses
 |
User manual for the Kowa LM4NCL C-Mount 3.5mm Fixed Focal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|

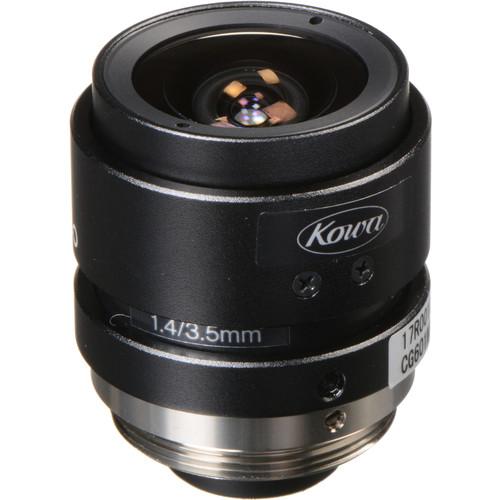

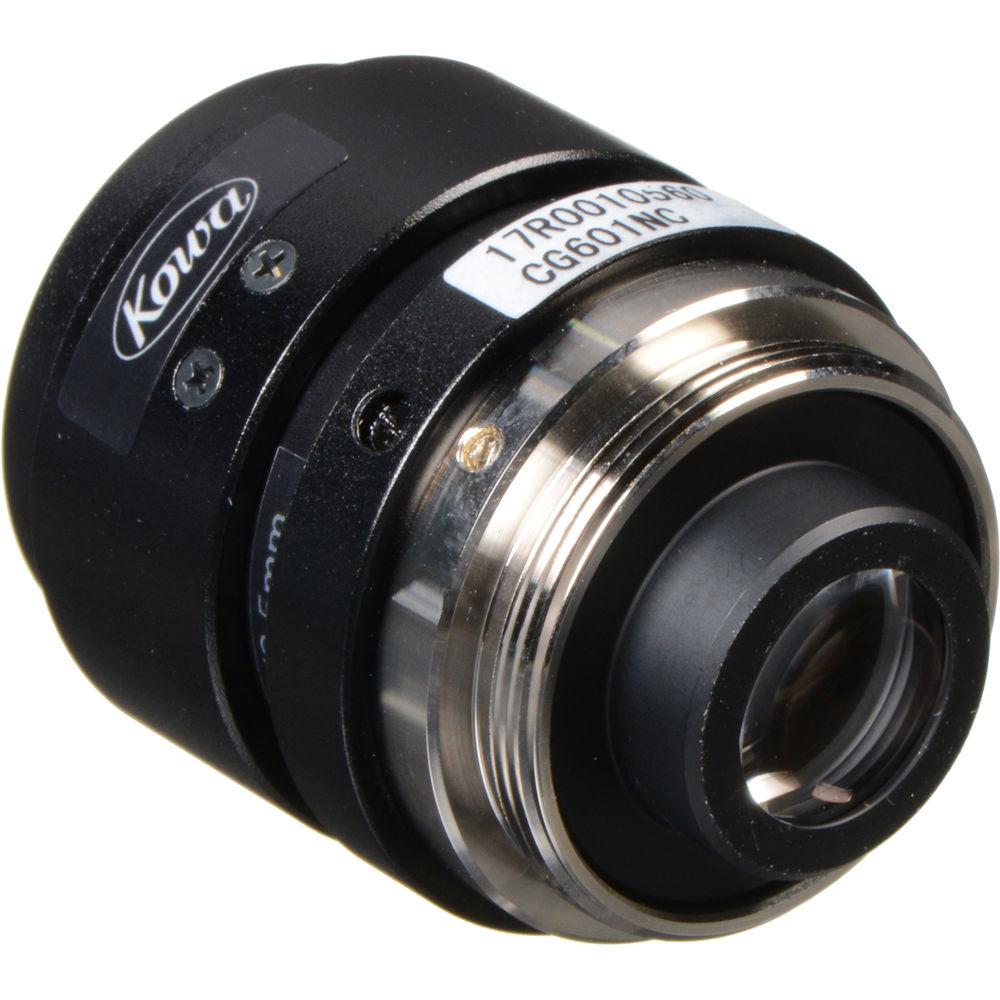

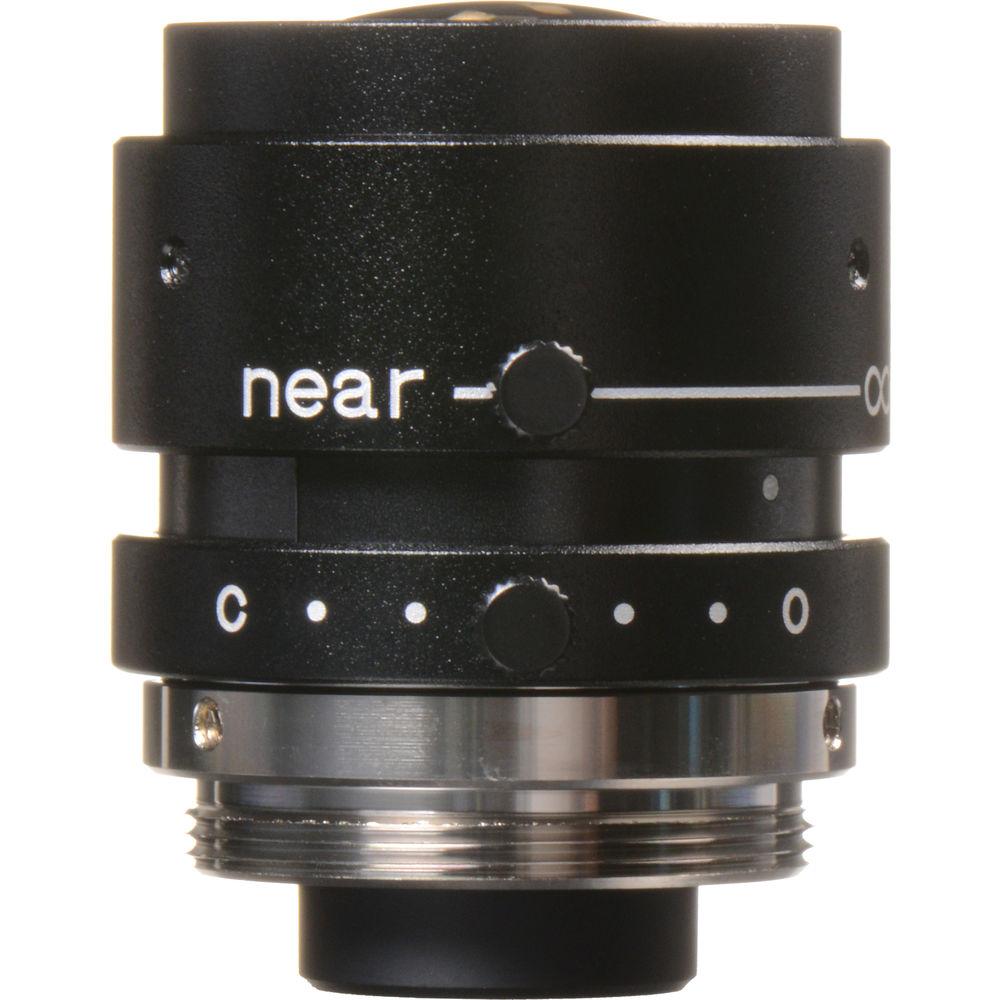

Product description The C-Mount 3.5mm Fixed Focal Lens from Kowa is designed for use with 1/2” sensors. This lens has a fixed focal length of 3.5mm and an aperture range of f/1.4 to 16. Equipped with a metal body and locking screws, the lens can be used in a variety of machine vision and robotics applications where high resolution is required. In the Box Kowa LM4NCL C-Mount 3.5mm Fixed Focal Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa LM4NCL C-Mount 3.5mm Fixed Focal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LM4NCL Specs | Lens Mount | C | | Sensor Compatibility | 1/2" | | Focal Length | 3.5mm | | Back Focal Length | 8.89mm | | Aperture | f/1.4 to 16 | | Angle of View | 1/2" Sensor
Diagonal: 132.1°
Horizontal: 103.6°
Vertical: 76.6° | | Minimum Focus Distance | 0.7' / 0.2 m | | Focus Type | Manual Focus | | Iris Type | Manual | | Distortion | -0.28% | | Effective Diameter | Front: 0.771653543307087" / 19.6 mm
Rear: 0.409448818897638" / 10.4 mm | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Flange Back Length | 0.69" / 17.526 mm | | Dimensions (D x L) | 1.22 x 1.2" / 31 x 30.5 mm | | Weight | 2.6 oz / 73 g | | | | Package Weight | 0.16 lb | | Box Dimensions (LxWxH) | 2.6 x 1.95 x 1.75" |
