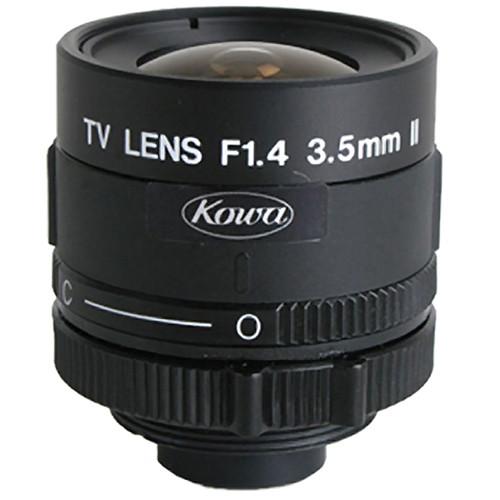

User Manual for Kowa LM4NCR C-Mount 3.5mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the Kowa LM4NCR C-Mount 3.5mm Fixed Lens
- Product category: Lenses Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Lenses
|
User manual for the Kowa LM4NCR C-Mount 3.5mm Fixed Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The LM4NCR C-Mount 3.5mm Fixed Lens from Kowa features a f/1.4 aperture to capture clear images in varying lighting conditions. This C-mount lens is designed for 1/2" and 1/3" type sensors. In the Box Kowa LM4NCR C-Mount 3.5mm Fixed Lens Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa LM4NCR C-Mount 3.5mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LM4NCR Specs | Focal Length | 3.5mm | | Format | 1/2 or 1/3" | | Image Size | 0.25 x 0.19 x 0.31" (6.4 x 4.8 x 8 mm) | | Aperture | f/1.4 | | Field of View | 1/2" Type:
Horizontal: 103.6°
Vertical: 76.6°
Diagonal: 132.1°
1/3" Type:
Horizontal: 77°
Vertical: 57.5°
Diagonal: 97.5° | | TV Distortion | -28% | | Minimum Object Distance | 1/2" Type:
Horizontal: 16" (396 mm)
Vertical: 9.7" (247 mm)
Diagonal: 27.1" (688 mm) | | Focusing Range | 7.9" (0.2 m) | | Flange Back Length | 0.69" (17.526 mm) in air | | Back Focus | 0.35" (8.89 mm) in air | | Effective Diameter | Front: 0.77" (19.6 mm)
Rear: 0.41" (10.4 mm) | | Mount Type | C-mount | | Exit Pupil | -2.8" (-71.4 mm) | | Operating Temperature | 14 to 113°F (-10 to 45°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Resolution | Center: 100 lp/mm
Corner: 40 lp/mm | | Weight | 2 oz (56 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 2.5 x 1.75 x 1.75" |
