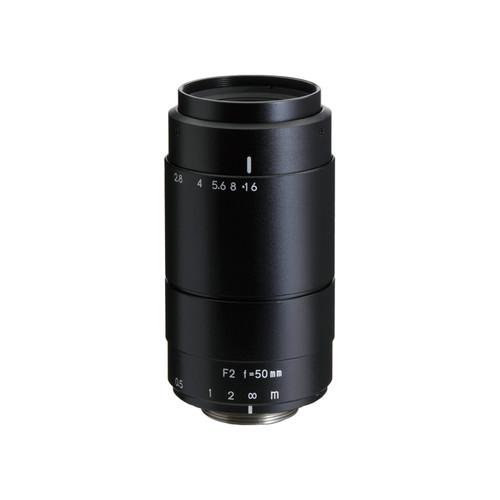

User Manual for Kowa LM50SC 6MP Plus SC Series 1" 50mm C-Mount F2.0 Manual Iris Lens Click to enlarge the picture
Contents of the user manual for the Kowa LM50SC 6MP Plus SC Series
- Product category: Lenses Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Lenses
|
User manual for the Kowa LM50SC 6MP Plus SC Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The LM50SC 6MP Plus SC Series 1" 50mm C-Mount F2.0 Manual Iris Lens from Kowa features aspherical XD, or extra low dispersion glass, in a metal body effectively reduces glare and refraction to deliver accurate images. The metal body with locking screws prevents manual adjustments from slipping out of alignment and helps the lens maintain exact user specifications. Thanks to the floating mechanism design, the lens virtually eliminates optical aberrations from close distance to infinity. - Floating Mechanism Design
- Floating mechanism design virtually eliminates optical aberrations from close distance to infinity
- XD Extra Low Dispersion
- Wide-band multi-coating effectively reduces glare and refraction
- Low Distortion
- High precision aspherical lens reduces distortion and produces a high definition picture
- High Resolution
- Creates crisp, clear images even at long distances
- Clear Resolution at Center and Corner
- Provides a clear image throughout the center and edges of the image
- High Performance and Compact
- Optimal for a wide range of applications
- Metal Body with Locking Screws
- Prevents manual adjustments from slipping out of alignment and helps the lens maintain exact user specifications
- Aspherical Lens
- Reduces distortion and produces a high definition picture
- Metal Housing
- Increases durability and life of the lens
- Fixed Focal Lens
- Preset focus remains fixed to exact specifications throughout the life of the lens so the user does not have to worry about managing the focus of the lens
In the Box Kowa LM50SC 6MP Plus SC Series 1" 50mm C-Mount F2.0 Manual Iris Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa LM50SC 6MP Plus SC Series 1" 50mm C-Mount F2.0 Manual Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LM50SC Specs | Focal Length | 50 mm | | Lens Type | Fixed | | Image Size | 12.8 x 9.6 mm (Φ16) | | Iris Range | F2.0 to F22 | | Focusing Range | 0.3 m to ∞ | | Iris Control | Manual | | Focus Control | Manual | | Recommended Shooting Range | H x V: 70.1 x 52.7 mm | | Angle of View | 1": 14.6 x 11.0°
2/3": 10.1 x 7.6°
1/1.8": 8.3 x 6.2° | | Horizontal Angle of View | 14.6° | | Vertical Angle of View | 11.0° | | Diagonal Angle of View | 18.0° | | Recommended Shooting Range | Horizontal: 70 mm at M.O.D.
Vertical: 52 mm at M.O.D.
Diagonal: 87 mm at M.O.D. | | Resolution | 160 lp/mm, 120 lp/mm | | Distortion | 0.3% | | Back Focus (in air) | 21.6 mm | | Mount | C-mount | | Front Filter Thread Size | M34 x P0.5 mm | | Minimum Focus Distance | 0.98' (0.3 m) | | Flange Back Length | 17.526 mm | | Effective Diameter | Front: Φ27, Rear: Φ16 | | Exit Pupil | -19.1 mm | | Temperature Range | 14 to 122°F (-10 to +50°C) | | Dimensions | Φ 1.69 x 3.09" (43 x 78.5 mm) | | Weight | 7.4 oz (210 g) |
