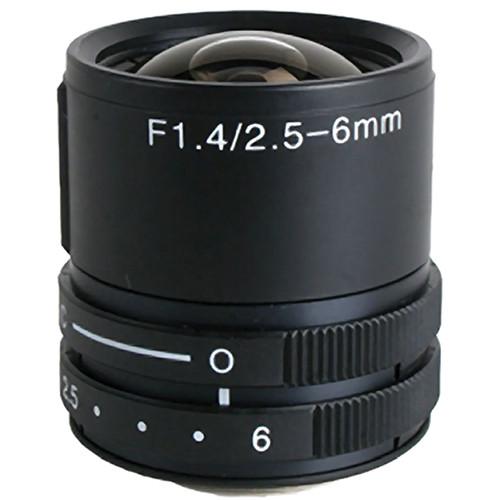

User Manual for Kowa LMVZ256 1 3" 2.5 to 6mm Varifocal Manual Iris Click to enlarge the picture
Contents of the user manual for the Kowa LMVZ256 1 3" 2.5 to
- Product category: Lenses Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Lenses
|
User manual for the Kowa LMVZ256 1 3" 2.5 to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The 3-Cam design is incorporated into Kowa’s LMVZ256 1/3" 2.5 to 6mm Varifocal Manual Iris Lens. This innovative system has solved the problem of de-centering which sometimes occurs in the conventional pole system. Not only is the movement of the lens impaired by de-centering, but the optical performance suffers too. The 3-Cam design also reduces internal reflection. As a result, the image obtained by this design is much sharper than that of the conventional pole system. With the 3-Cam design, the customer can expect high optical performance and a long service life. In the Box Kowa LMVZ256 1/3" 2.5 to 6mm Varifocal Manual Iris 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa LMVZ256 1 3" 2.5 to 6mm Varifocal Manual Iris in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LMVZ256 Specs | Sensor Size | 1/3" | | Focal Length | f=2.5 to 6 mm | | Maximum Aperture Ratio | F=1:1.4 to 16 to close | | Element | 6 Groups, 7 Elements (1 Aspherical Lens Element) | | Picture Size | 0.14 x 0.19" (3.6 x 4.8 mm) | | Resolution | Center: 100 LP / mm
Corner: 40 LP / mm | | Angle | Vertical: 80.9 to 34.2°
Horizontal: 107.6 to 45.6°
Diagonal: 133.3 to 56.8° | | Distortion | -19.4 to 2.5% | | Shooting Distance Range | At minimum object distance
Vertical: 14.33 to 5.16” (364 to 131 mm)
Horizontal: 22.99 to 7.05” (584 to 179 mm)
Diagonal: 39.17 to 9.06” (995 to 230 mm)
| | Minimum Object Distance | 0.66' (0.2 m) | | Flange Back Length | 0.49" (12.5 mm), in air | | Back Focus | 0.34 x 0.56" (8.72 to 14.24 mm) in air | | Effective Diameter | Front: Φ1.09” (Φ27.6 mm)
Rear: Φ0.29” (Φ7.4 mm) | | Mount | CS-mount | | Exit Pupil Position | Wide: 731.61" (18583 mm)
Tele: -1.18" (-30 mm) | | Temperature Range | 14 to 113°F (-10 to 45°C) | | Storage Temperature Range | -40 to 140°F (-40 to 60°C) | | Stopper Strength | <10 kgf > | | Endurance Test | Focus / Zoom / Iris: 5,000 times | | Weight | 2.92 oz (83 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.2 x 2.1 x 1.6" |
