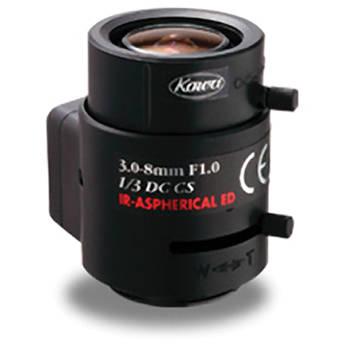

User Manual for Kowa LMVZ38A-IR 1 3" 3 to 8mm Day & Night Lens Click to enlarge the picture
Contents of the user manual for the Kowa LMVZ38A-IR 1 3" 3 to
- Product category: Lenses Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Lenses
|
User manual for the Kowa LMVZ38A-IR 1 3" 3 to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The Kowa LMVZ38A-IR 1/3" 3 to 8mm Day & Night Lens (IR) incorporates the 3-Cam design. This innovative system solves the problem of de-centering which sometimes occurs in the conventional pole system. Not only is the movement of the lens impaired by de-centering, but the optical performance suffers too. The 3-Cam design also reduces internal reflection. As a result, the image obtained by this design is much sharper than that of the conventional pole system. With the 3-Cam design, you can expect high optical performance and a longer service life.
There is a broad spectrum of applications where the ability to monitor and identify even the smallest detail is critical. One of the factors in optimizing system performance is the selection of the proper lens for the application. The advanced optical design of this Kowa day & night lens provides low color aberration and high-definition images required for high-risk installations that require state-of-the art security solutions. In the Box Kowa LMVZ38A-IR 1/3" 3 to 8mm Day & Night Lens (IR) 1-Year Warranty (Parts & Labor) Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa LMVZ38A-IR 1 3" 3 to 8mm Day & Night Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LMVZ38A-IR Specs | Sensor Size | 1/3" for B&W and color camera | | Focal Length | 3 to 8 mm | | Zoom Ratio | 2.7x | | Maximum Diameter (Ratio) | F1.0 | | Iris Range | F1.0 to 360 | | Image Size | Φ6 | | Back Focal Length | Wide: 0.34” (8.64 mm)
Tele: 0.61” (15.73 mm) in air | | Flange Focal Length | 12.5 mm | | Focus Range | 0.66' (0.2 m) | | Field Angle | Diagonal: 118.2° (wide), 44.4° (tele)
Horizontal: 92.4° (wide), 35.6° (tele)
Vertical: 68° (wide), 26.6° (tele) | | Field of View at M.O.D | Diagonal: 28.07” (713 mm / wide), 6.69” (170 mm / tele)
Horizontal: 17.24” (438 mm / wide), 5.24” (133 mm / tele)
Vertical: 11.1” (282 mm / wide), 3.85” (98 mm / tele) | | Aperture | Front: Φ14.8
Rear: Φ8.6 | | Exit Pupil Position | 0.79" (20 mm) from image plane | | Mount | CS-mount | | Distortion | Wide: -16.8%
Tele: -1.8% | | Driving Coil | Resistor: 200 Ω (77°F / 25°C)
Color: Yellow (+), orange (-) | | Dumping Coil | Resistor: 700 Ω (77°F / 25°C)
Color: Red (+), brown (-) | | Driving Voltage | To open: <3.5 V
To close: >0.5 V | | Weight | 1.59 oz (45 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 3.2 x 3.0 x 2.7" |
