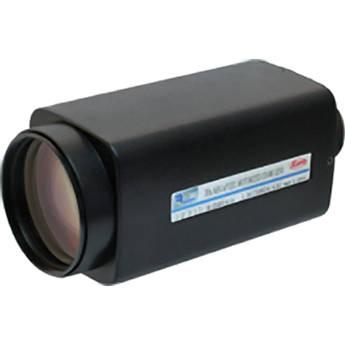

User Manual for Kowa LMZ0812AMP-IR 1 2" Zoom Auto-Iris IR Lens for CCTV with Preset Click to enlarge the picture
Contents of the user manual for the Kowa LMZ0812AMP-IR 1 2" Zoom Auto-Iris
- Product category: Lenses Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Lenses
|
User manual for the Kowa LMZ0812AMP-IR 1 2" Zoom Auto-Iris contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The Kowa LMZ0812AMP-IR 1/2” Zoom Auto-Iris IR Lens with Preset (8 to 120mm) for CCTV is suitable for use with cameras up to 3 MP resolution. In the Box Kowa LMZ0812AMP-IR 1/2" Zoom Auto-Iris IR Lens for CCTV with Preset (8 to 120mm) 1-Year Warranty (Parts & Labor) Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa LMZ0812AMP-IR 1 2" Zoom Auto-Iris IR Lens for CCTV with Preset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LMZ0812AMP-IR Specs | Sensor Size | 1/2" | | Iris Control | Auto-Iris (DC) | | Focus Control | Motorized | | Focal Length | 8 to 120 mm | | Zoom | 25x | | Iris Range | F1.8 to 360 | | Image Size | Φ8 (6.4 x 4.8) | | Back Focal Length | 14.9 mm (in air) | | Flange Focal Length | 17.526 mm (in air) | | Focus Range | Infinity to 4.9' (1.5 m) | | Field Angle | Diagonal: 55.9° (wide), 3.8° (tele)
Horizontal: 43.2° (wide), 3.1° (tele)
Vertical: 33.8° (wide), 2.3° (tele) | | Lens Construction | 13 groups, 16 elements | | Mount | C | | Aperture | Clear Aperture: Front: Φ54
Rear: Φ12.5 | | Distortion | Wide: -0.7%
Tele: 1.1% | | Coil | Drive Coil: Resistor: 190 Ω (68°F / 20°C)
Color: Red (+) 3 pin
Black 4 pin
Brake Coil: Resistor: 1150 Ω (68°F / 20°C)
Color: Yellow (+) 2 pin
Green 1 pin | | Voltage | Drive Voltage: Open: <4 v
Close: >0 V (with closing spring) | | Temperature Range | 14 to 113°F (-10 to 45°C) | | Dimensions | 3.42 x 2.95 x 6.18" (87 x 75 x 157 mm) |
