User Manual for Kowa LMZ112AMPOR 1 2" Manual Override Iris 18x Zoom Lens with Preset Click to enlarge the picture
Contents of the user manual for the Kowa LMZ112AMPOR 1 2" Manual Override
- Product category: Lenses Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Lenses
|
User manual for the Kowa LMZ112AMPOR 1 2" Manual Override contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|

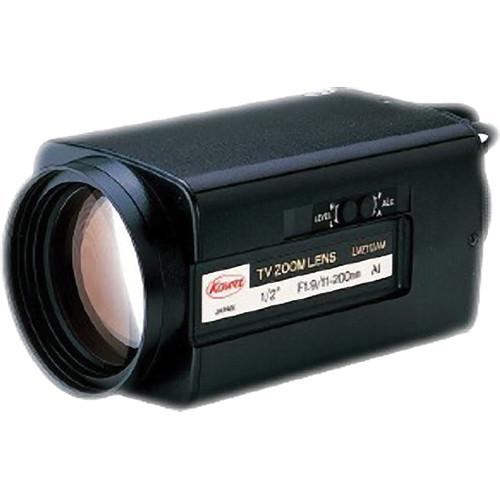

Product description The Kowa LMZ112AMPOR 1/2" Manual Override Iris 18x Zoom Lens with Preset (11-200mm) incorporates a 3-Cam design that solves the problem of de-centering which sometimes occurs in the conventional pole system. Not only is the movement of the lens impaired by de-centering, but the optical performance suffers too. The 3-Cam Design also reduces internal reflection so that the image obtained is sharper than that of the conventional pole system. With the 3-Cam design, the customer can expect higher optical performance and a longer service life. In the Box Kowa LMZ112AMPOR 1/2" Manual Override Iris 18x Zoom Lens with Preset (11-200mm) 1-Year Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa LMZ112AMPOR 1 2" Manual Override Iris 18x Zoom Lens with Preset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LMZ112AMPOR Specs | Sensor Size | For 1/2" color, B&W camera | | Focal Length | 11 to 200 mm | | Iris Range | F=1.9 to 360/close | | Image Size | Ø8 (4.8 x 6.4) | | Back Focal Distance | 0.4" (10.21 mm) in air | | Flange Focal Distance | 0.68" (17.52) mm in air | | Angle of View | Horizontal: 32.1° (wide), 1.9° (tele)
Diagonal: 39.7° (wide), 2.3° (tele)
Vertical: 24.3° (wide), 1.4° (tele) | | Field of View at M.O.D | Horizontal: 802 mm (wide), 45.6 mm (tele)
Diagonal: 1001 mm (wide), 56.7 mm (tele)
Vertical: 601 mm (wide), 34.4 mm (tele) | | Distortion | -0.6% (wide), +0.5% (tele) | | Focusing Range | Infinity to 1.5 m | | Mount | C | | Lens Construction | 12 groups, 16 elements | | Correcting Plate Clear Aperture | Front Ø58, Rear Ø14.7 | | Exit Pupil Position | 2.2" (+55.9 mm) | | Weight | 1.8 lb (860 g) |
