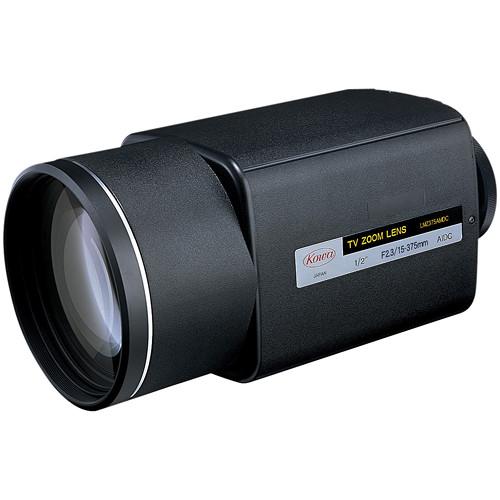

User Manual for Kowa LMZ375AMDC-XD 1 2" Zoom Auto-Iris IR Lens with Preset Click to enlarge the picture
Contents of the user manual for the Kowa LMZ375AMDC-XD 1 2" Zoom Auto-Iris
- Product category: Lenses Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Lenses
|
User manual for the Kowa LMZ375AMDC-XD 1 2" Zoom Auto-Iris contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description The Kowa LMZ375AMDC-XD 1/2" Zoom Auto-Iris IR Lens with Preset (15 to 375mm) incorporates a 3-Cam design. This innovative system solves the problem of de-centering, which sometimes occurs in the conventional pole system. Not only is the movement of the lens impaired by de-centering, but the optical performance suffers too. The 3-Cam design also reduces internal reflection. As a result, the image obtained by this design is much sharper than that obtained using the conventional pole system. Moreover, with the 3-Cam design, you can expect higher optical performance and longer service life. - For 1/2" Color & B&W Cameras
In the Box Kowa LMZ375AMDC-XD 1/2" Zoom Auto-Iris IR Lens with Preset (15 to 375mm) 1-Year Warranty (Parts & Labor) Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa LMZ375AMDC-XD 1 2" Zoom Auto-Iris IR Lens with Preset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa LMZ375AMDC-XD Specs | Sensor Size | Main: 1/2" | | Focal Length | 15 to 375 mm | | Zoom | 25x | | Iris Range | F2.3 to 360 | | Image Size | Φ8 (6.4 x 4.8) | | Back Focal Length | 24 mm (in air) | | Flange Focal Length | 17.526 mm (in air) | | Focus Range | ∞ to 8.2' (2.5 m) | | Field Angle | 1/2": Diagonal: 28.7° (wide), 1.24° (tele) Horizontal: 23.2° (wide), 0.99° (tele) Vertical: 17.6° (wide), 0.75° (tele) 1/3": Horizontal: 17.4°(wide), 0.74° (tele) 1/4": Horizontal: 13.0° (wide), 0.055° (tele) | | Lens Construction | 12 groups, 16 elements | | Mount | C | | Aperture | Clear: Front: Φ104
Rear: Φ117 | | Distortion | Wide: 0.3%
Tele: 0.4% | | Exit Pupil Position | -2.76" (-70 mm) | | Driving Coil | Resistor: 190 Ω (68°F / 20°C) Color: Red (+) black | | Brake Coil | Resistor: 1150 Ω (68°F / 20°C) Color: Yellow (+) green | | Voltage | Drive: Open: <4 v
Close: >0 V (with closing spring) | | Overall Dimensions (H x W x D) | 4.8 x 4.8 x 10.28" (122 x 122 x 261 mm) | | Weight | 5.69 lb (2.58 kg) |
