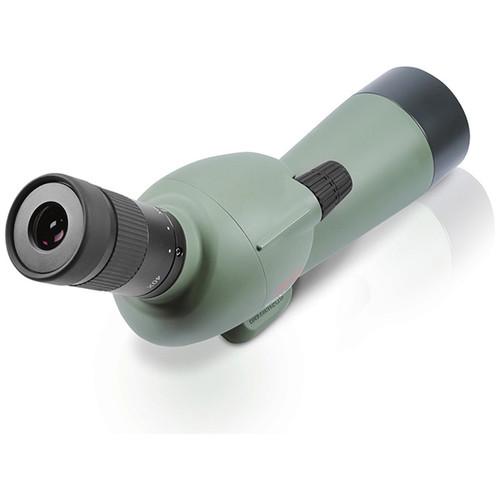

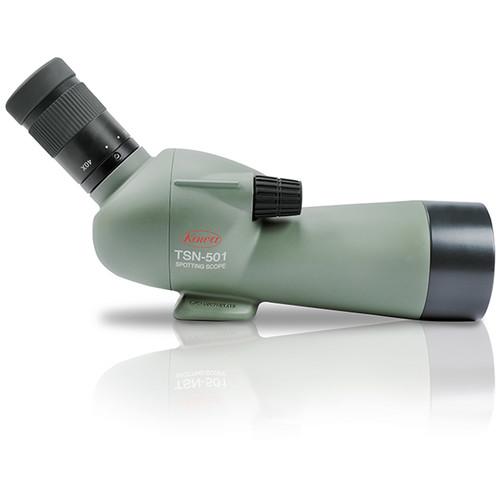

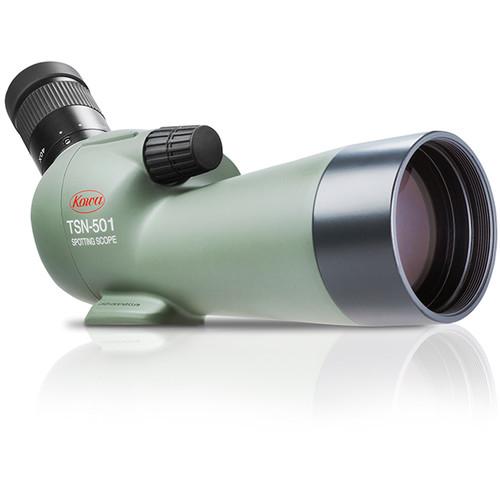

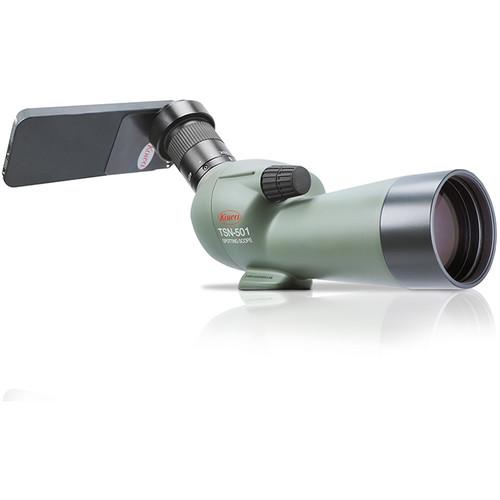

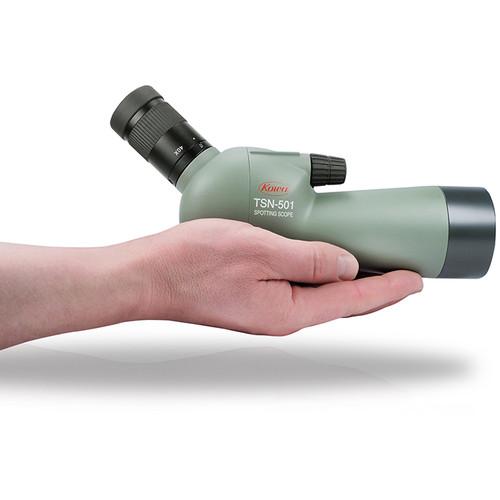

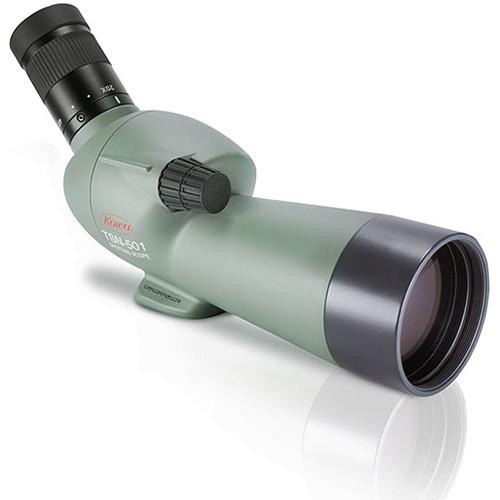

User Manual for Kowa TSN-501 20-40x50 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Kowa TSN-501 20-40x50 Spotting Scope
- Product category: Spotting Scopes Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Spotting Scopes
 |
User manual for the Kowa TSN-501 20-40x50 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More At less than 10" long and weighing under a pound, the 45° angled-viewing Kowa TSN-501 20-40x50 Spotting Scope is designed to be your constant companion wherever you go to glass. The moderate 50mm lens and fully multi-coated optics provide bright and clear high-contrast images with accurate color rendition for an immersive observational experience. Its powerful wide zoom range allows you to take in a wide field of view for general viewing purposes, with the ability to draw subjects in close for more detailed observations. This version of the TSN-500 is configured with the eyepiece set at a 45° angle relative to the optical tube to place your head in a comfortable viewing postion whether you're standing, sitting, or lying prone.Engineered for performance in all conditions, the chassis is made of a lightweight and strong polycarbonate material wrapped in a slip-resistant armoring, with a rubberized and textured zoom collar and focus wheel that make adjustments fast and easy, even when wearing gloves. The optical tube is nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes or environmental conditions. To increase your mounting options, the TSN-501 comes outfitted with both a 1/4"-20 and 3/8"-16 tripod attachment—making it compatible with most photo, video, and field tripods on the market. - Optical Performance
-
- Powerful 20-40x zoom eyepiece
- 50mm aperture
- Porro prism optical path
- Fully multi-coated optics maximize light transmission through the lens to improve image brightness, color rendition, and contrast
- 131-92' field of view at 1000 yards
- Use and Handling
-
- Eyepiece set at a 45° angle to the optical tube for more comfortable viewing when seated, standing, or lying prong
- Integrated aiming sight
- Rubberized and textured zoom collar and single-speed focusing wheel
- 55mm objective lens filter threads
- Twist-up eyecup for comfortable use with or without eyewear
- 3/8"-16 and 1/4"-20 mount to accommodate most photo, video, and field tripods
- 14-12.5mm eye relief
- 2.5-1.25mm exit pupil
- Construction Details
-
- Lightweight and impact-resistant polycarbonate chassis
- Nitrogen filled, IPX6 rated to be waterproof and resistant to internal fogging when moving through extreme temperature changes and conditions
- Extremely lightweight: 14 ounces
UPC: 879110005058 In the Box Kowa TSN-501 20-40x50 Spotting Scope (Angled Viewing) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa TSN-501 20-40x50 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa TSN-501 Specs | | | Magnification | 20 to 40x | | Objective Lens Diameter | 50 mm | | Field of View | 20x: 131.0' @ 1000 yd / 43.6 m @ 1000 m
40x: 92.0' @ 1000 yd / 30.6 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 20x: 2.5 mm
40x: 1.25 mm | | Eye Relief | 14.0 to 12.5 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Filter Thread | 55 mm | | Tripod Mounting Thread | 1/4"-20, 3/8"-16 | | Dimensions | L: 9.4 x H: 9.4 x W: 2.8" / L: 23.9 x H: 12.4 x W: 7.1 cm | | Weight | 14.0 oz / 396.9 g | | | | Package Weight | 1.76 lb | | Box Dimensions (LxWxH) | 11.5 x 5.85 x 3.9" |
