User Manual for Kowa TSN-553 15-45x55 PROMINAR Spotting Scope Click to enlarge the picture
Contents of the user manual for the Kowa TSN-553 15-45x55 PROMINAR Spotting Scope
- Product category: Spotting Scopes Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Spotting Scopes
 |
User manual for the Kowa TSN-553 15-45x55 PROMINAR Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|

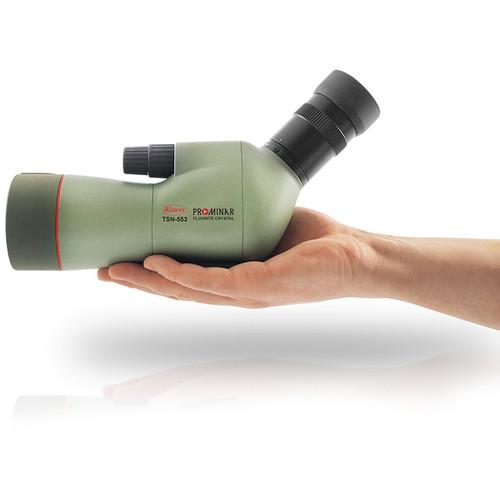

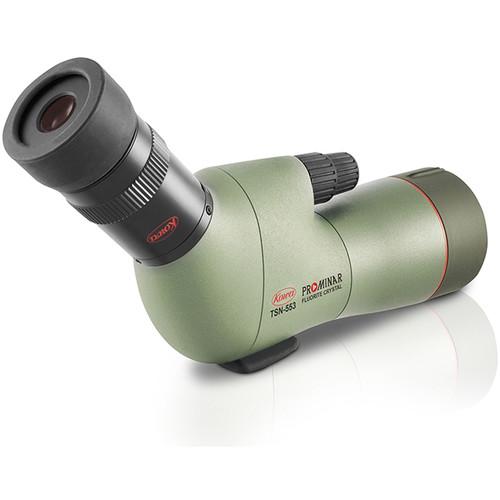

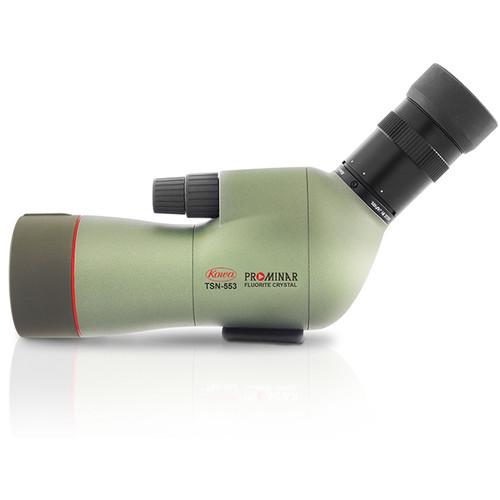

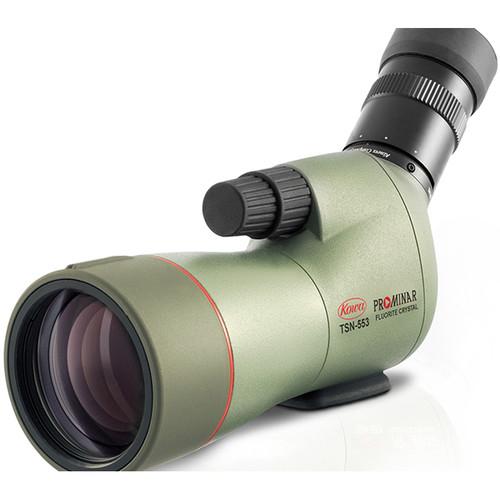

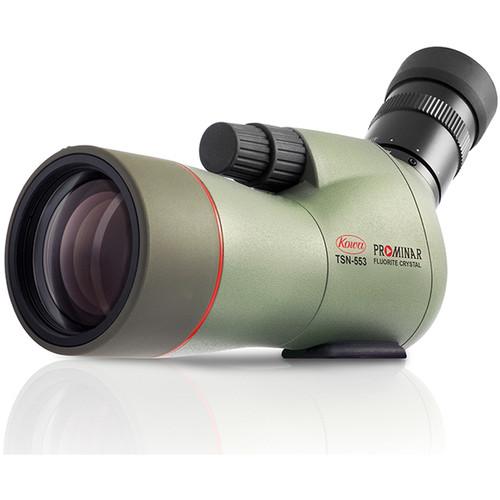

Product description A Guide to Birding with Spotting Scopes Read More At less than a foot long, the 45° angled-viewing Kowa TSN-553 15-45x55 Spotting Scope is the ideal companion wherever you go to glass. It employs the ultra-low dispersion PROMINAR fluoride glass that eliminates chromatic aberrations that, when coupled with the fully multi-coated optics and two-speed focusing mechanism, produce bright and clear tack-sharp high-contrast images with accurate color rendition for an immersive observational experience. The impressive zoom range allows you to take in a wide field of view for general viewing purposes, with the ability to draw subjects in close for more detailed observations. This version of the TSN-550 is configured with the eyepiece set at a 45° angle relative to the optical tube to place your head in a comfortable viewing postion whether you're standing, sitting, or lying prone.To reduce weight, without sacrificing strength or durability, the chassis is made of a polycarbonate material and wrapped in a slip-resistant armoring. A rubberized and textured zoom collar and focus wheel make adjustments fast and easy, even when wearing gloves. The optical tube is nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes or environmental conditions. To increase your mounting options, the TSN-553 comes outfitted with both a 1/4"-20 and 3/8"-16 tripod attachment—making it compatible with most photo, video, and field tripods on the market. - Optical Performance
-
- Wide 15-45x fixed zoom eyepiece
- 55mm aperture
- Porro prism optical path
- Ultra-low dispersion PROMINAR fluorite glass elements eliminate chromatic aberration, which causes halos, astigmatism, and fringing, for improved color rendition and contrast
- Fully multi-coated optics maximize light transmission through the lens to improve image brightness, color rendition, and contrast
- 132-69' field of view at 1000 yards
- Use and Handling
-
- 45° angled eyepiece to place the user's head in a comfortable viewing position when sitting, standing, or lying prone
- Integrated aiming sight
- Smooth and precise fine and coarse two-speed focusing mechanism moves through the entire focus range in two turns
- Rubberized and textured zoom collar and focusing wheel
- 58mm objective lens filter threads
- Twist-up eyecup for comfortable use with or without eyewear
- 3/8"-16 and 1/4"-20 mount to accommodate most photo, video, and field tripods
- Long 16.5-16mm eye relief
- 3.7-1.2mm exit pupil
- Construction Details
-
- Lightweight and impact-resistant polycarbonate chassis
- Nitrogen filled, IPX7-rated to be waterproof and resistant to internal fogging when moving through extreme temperature changes and conditions
- Oil-resistant KR exterior lens coatings makes it easy for dirt, sap, and oil to be cleaned off without smudges or residue
- Retractable sunshade reduces glare and lens flare and keeps snow and rain off the objective for clearer viewing
- Extremely lightweight: 28 ounces
UPC: 879110005072 In the Box Kowa TSN-553 15-45x55 PROMINAR Spotting Scope (Angled Viewing) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa TSN-553 15-45x55 PROMINAR Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa TSN-553 Specs | | | Magnification | 15 to 45x | | Objective Lens Diameter | 55 mm | | Field of View | 15x: 132.0' @ 1000 yd / 43.9 m @ 1000 m
45x: 69.0' @ 1000 yd / 23.0 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3.0 m | | Exit Pupil Diameter | 15x: 3.7 mm
45x: 1.2 mm | | Eye Relief | 16.5 to 16.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Filter Thread | 58 mm | | Tripod Mounting Thread | 1/4"-20, 3/8"-16 | | Dimensions | L: 10.6 x H: 6.0 x W: 2.6" / L: 26.9 x H: 15.2 x W: 6.6 cm | | Weight | 28.5 oz / 808.0 g | | | | Package Weight | 3.135 lb | | Box Dimensions (LxWxH) | 12.85 x 7.4 x 3.55" |
