User Manual for Kowa TSN-664M 66mm PROMINAR XD Spotting Scope Click to enlarge the picture
Contents of the user manual for the Kowa TSN-664M 66mm PROMINAR XD Spotting
- Product category: Spotting Scopes Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Spotting Scopes
 |
User manual for the Kowa TSN-664M 66mm PROMINAR XD Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|

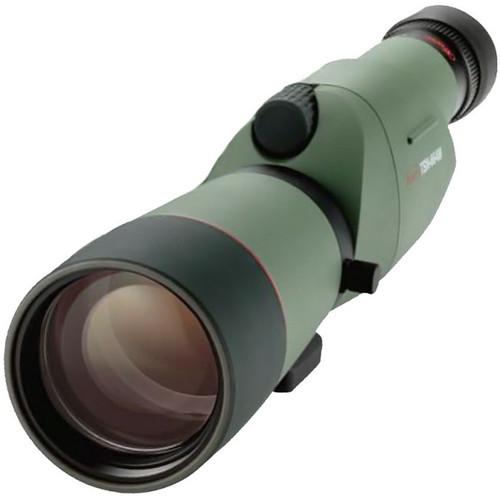

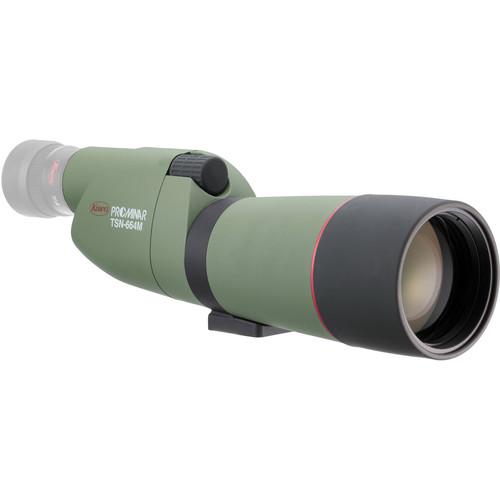

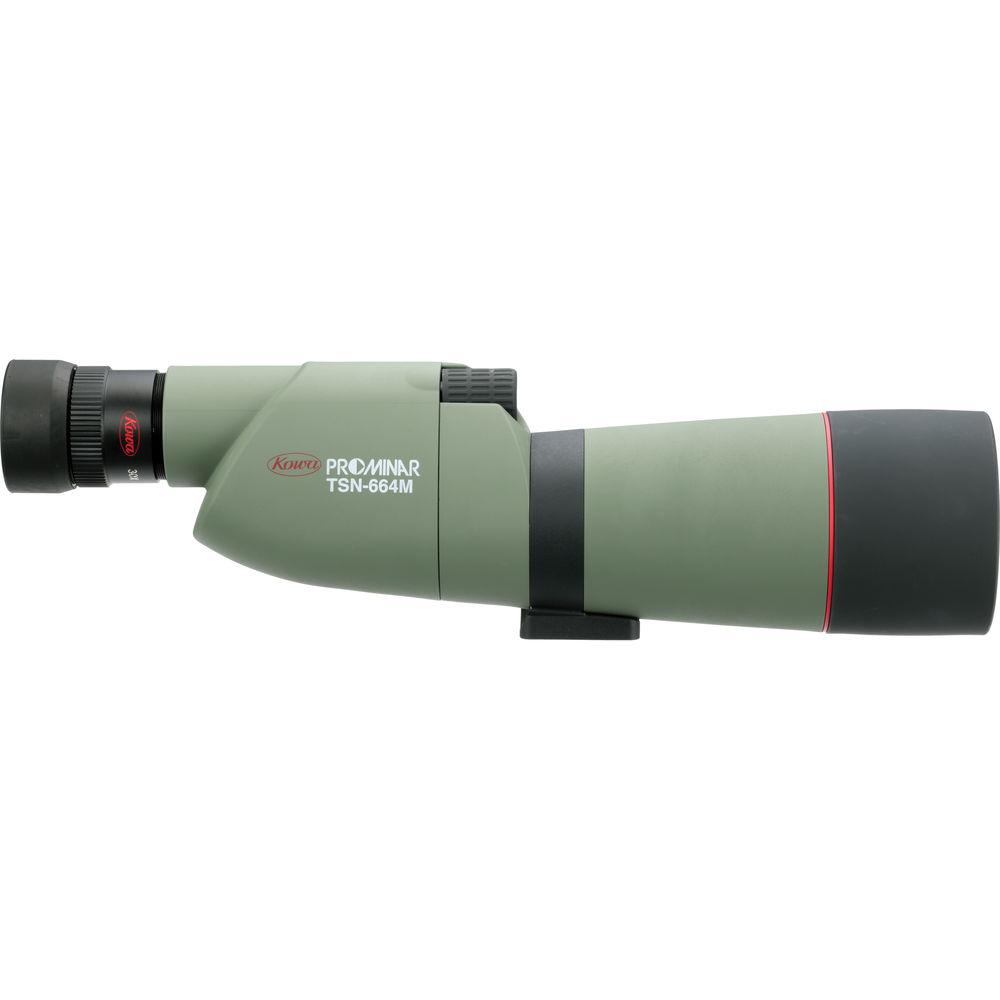

Product description A Guide to Birding with Spotting Scopes Read More The green, straight-viewing TSN-664M 66mm PROMINAR XD Spotting Scope from Kowa features high-quality optics built into a body that is designed for reliable use under a variety of viewing conditions. Measuring 12.3" long and constructed from magnesium alloy, this durable scope can provide a wide angle or a versatile viewing range depending on which separately available eyepiece is installed on it.
Compatible Kowa eyepieces include the TE-14WD 30x Wide-Angle Eyepiece, the TE-17HD 25x Long Eye Relief Eyepiece, and the TE-9Z 20-60x Zoom Eyepiece.
While in use, the TSN-664M 66mm Spotting Scope's PROMINAR XD (extra-low dispersion) lens and a concave dispersion lens work together to minimize chromatic aberrations. Additionally, multi-coated optical surfaces help to consistently maximize light transmission, sharpness, and color fidelity.
A nitrogen fill prevents fog accumulation and an O-ring sealed waterproof construction further adds to the rugged design of the TSN-664M 66mm Spotting Scope. Conforming to JIS (Japanese Industrial Standard) Protection Class 7 waterproofing, this scope can withstand momentary immersion, assuming the eyepiece mount is not open and exposed. - Optical Performance
-
- 66mm objective lens
- PROMINAR XD lens and a dispersion concave lens help to minimize chromatic aberrations
- Multi-coated optical surfaces minimize reflections while helping to maximize light transmission, sharpness, and color fidelity
- Use and Handling
-
- Smooth and coarse focus knobs
- Integrated sunshade
- Rotatable tripod collar with 1/4"-20 threading
- Construction Details
-
- Magnesium-alloy body
- Nitrogen filled to be fogproof
- O-ring sealed to be waterproof
UPC: 879110006666 In the Box Kowa TSN-664M 66mm PROMINAR XD Spotting Scope (Straight Viewing, Green) Front Lens Cap Rear Eyepiece Mount Cap Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa TSN-664M 66mm PROMINAR XD Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa TSN-660 Specs | | | Objective Lens Diameter | 66 mm | | Minimum Focus Distance | 19.7' / 6.0 m | | | | Water Resistance | Waterproof | | | | Filter Thread | 72 mm | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 12.3" / L: 31.2 cm | | Weight | 2.2 lb / 1.0 kg | | | | Package Weight | 3.32 lb | | Box Dimensions (LxWxH) | 15.95 x 6.9 x 5.65" |
