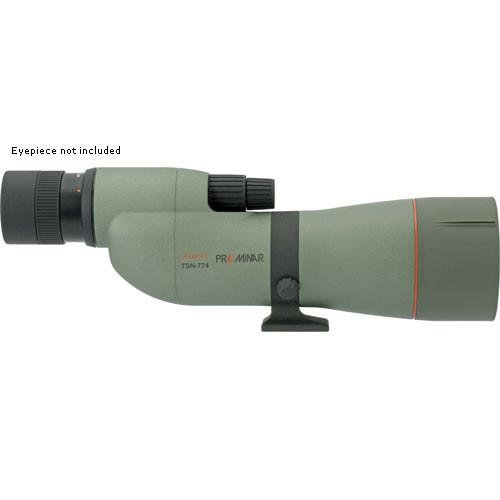

User Manual for Kowa TSN-774 77mm PROMINAR XD Spotting Scope Click to enlarge the picture
Contents of the user manual for the Kowa TSN-774 77mm PROMINAR XD Spotting
- Product category: Spotting Scopes Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Spotting Scopes
|
User manual for the Kowa TSN-774 77mm PROMINAR XD Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More rtuwwwfuuxczyvzcsessqfzystc The Kowa TSN-774 77mm PROMINAR XD Spotting Scope with Straight Viewing is a scope of world-class caliber that redefines the standards of color brilliance, detail sharpness, and edge-to-edge brightness. Logically tailored to the most demanding outdoor enthusiast, every technical and ergonomic detail that went into the development of the TSN-770 & 880 series spotting scopes has been examined, perfected, or completely reinvented.This version uses an element of XD (extra-low dispersion) glass in its construction, which greatly minimizes chromatic aberration. This greatly enhances the clarity for crystal-clear images and high color accuracy. Use of Kowa's patented C3 multi-coated optics has made it possible to increase image brightness significantly over prior-generation models. The advanced lens system of these scopes achieves minimal to zero chromatic aberration even at higher magnifications, with consistent high image brightness.The housing is made of magnesium alloy that is designed for maximum durability and lightweight body construction. The result is a compact, ergonomic, and functional design for the die-hard enthusiast who wants only the very best. - C3 Coating
- C3 Coating is a highly reflective multi-coating of dielectrics. This allows for a much higher reflectivity than with coatings of silver or optically enhanced aluminum, offering a reflectance of 99% or higher across the entire visible spectrum. Not only does this provide bright and sharp images, but accurate color reproduction is also achieved.
- Inner Focus System
- The innovative inner focus system decreases image movement when focusing on objects, even single handedly. The focus system has the ability to focus from 16.4' (5 m) to infinity in two quick revolutions of the focus knob, ensuring consistent viewing.
- Water and Fogproof
- The waterproof housing meets the rigorous standards of JIS Protection Class 7; it is also charged with dry nitrogen gas to prevent fogging.
- Choice of Eyepieces
- Multiple interchangeable eyepieces are available, including 20x-60x zoom, 30x wide, and 25x LER for total versatility in the field. The eyepiece locking mechanism prevents the eyepiece from falling out or getting lost. Converters allow users to utilize eyepieces from other Kowa spotting scope series.
- Quick-aiming sightline aids in object locating.
- Sliding sunshade shields unnecessary light and raindrops while providing protection for the front element (which has an 82mm filter thread).
- Adaptable to 35mm SLR cameras, digital cameras, and video cameras with optional accessories.
UPC: 879110007748 In the Box Kowa TSN-774 77mm PROMINAR XD Spotting Scope (Straight Viewing, Requires Eyepiece) Front and Rear Lens Caps Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa TSN-774 77mm PROMINAR XD Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa TSN-77 Specs | | | Objective Lens Diameter | 77 mm | | Minimum Focus Distance | 16.4' / 5.0 m | | | | Fogproof | Yes | | Water Resistance | Waterproof | | | | Dimensions | L: 12.5" / L: 318.0 mm | | Weight | 2.9 lb / 1330.0 g | | | | Package Weight | 5.495 lb | | Box Dimensions (LxWxH) | 16.85 x 6.8 x 6.65" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
