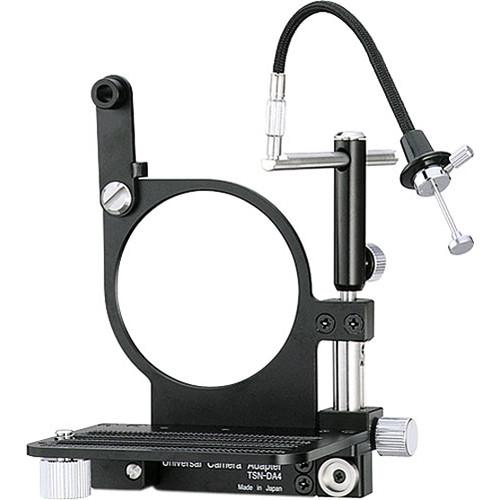

User Manual for Kowa TSN-DA4 Digiscoping Adapter Click to enlarge the picture
Contents of the user manual for the Kowa TSN-DA4 Digiscoping Adapter
- Product category: Digiscoping Adapters Kowa
- Brand: Kowa
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kowa Digiscoping Adapters
|
User manual for the Kowa TSN-DA4 Digiscoping Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kowa product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kowa user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kowa product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More Your Kowa spotting scope can be used as a telephoto lens for a point & shoot camera with the TSN-DA4 Digiscoping Adapter. It securely holds your camera's lens to the scope's eyepiece, it comes with a remote shutter release cable to avoid camera shake, and it has a hinged design that lets you swing the camera out of the way for observing and back into place for photography.The DA4 must be used with either the TSN-DA10 or TSN-DA1 adapter, sold separately. The rig sets up in four steps, with no tools required: attach the inner sleeve of the DA10/DA1 to the spotting scope's eyepiece; attach the outer sleeve to the DA4 Adapter; slip the outer sleeve assembly over the inner sleeve and secure with the locking screw; and finally, mount your camera on the platform of the DA4.The position of the camera can be adjusted vertically and horizontally, so that its lens lines up with the spotter's eyepiece and the mount in its base lines up with the 1/4"-20 slot screw that holds it in place. The position of the shutter release can also be adjusted to line up with your camera's shutter button. A hinge on the right side of the camera mount allows you to swing the camera away from the scope eyepiece for observation and composing your shot. - Camera Compatibility
-
- Fits most point & shoot cameras (see Specs)
- Scope Compatibility
-
- Kowa TSN-601, 602, 661, 662, 663, 664, 773, 774, 82SV, 883 & 884 spotting scopes
- Features
-
- Allows use of Kowa scope as telephoto lens for point & shoot camera
- Cable shutter release sharply reduces camera shake for sharp images
- Hinged design allows camera to swing to side for observation through scope eyepiece
UPC: 879110000046 In the Box Kowa TSN-DA4 Digiscoping Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kowa TSN-DA4 Digiscoping Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKowa TSN-DA4 Specs | Compatibility | Cameras with the following dimensions:
Lens center to camera base: 0.83-1.57" (21-40mm)
max distance from lens center to tripod socket (facing lens): to the left 1.73" (44 mm); to the right 1.10" (28 mm)
Max distance from tripod socket to front of lens: 2.20" (56 mm) | | | | Package Weight | 0.64 lb | | Box Dimensions (LxWxH) | 4.45 x 4.45 x 3.6" |
