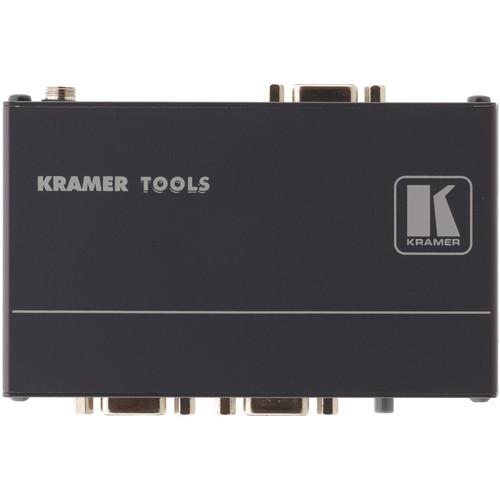

User Manual for Kramer 1:1 Computer Graphics Video Line Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer 1:1 Computer Graphics Video Line
- Product category: KVM Extenders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Extenders
 |
User manual for the Kramer 1:1 Computer Graphics Video Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

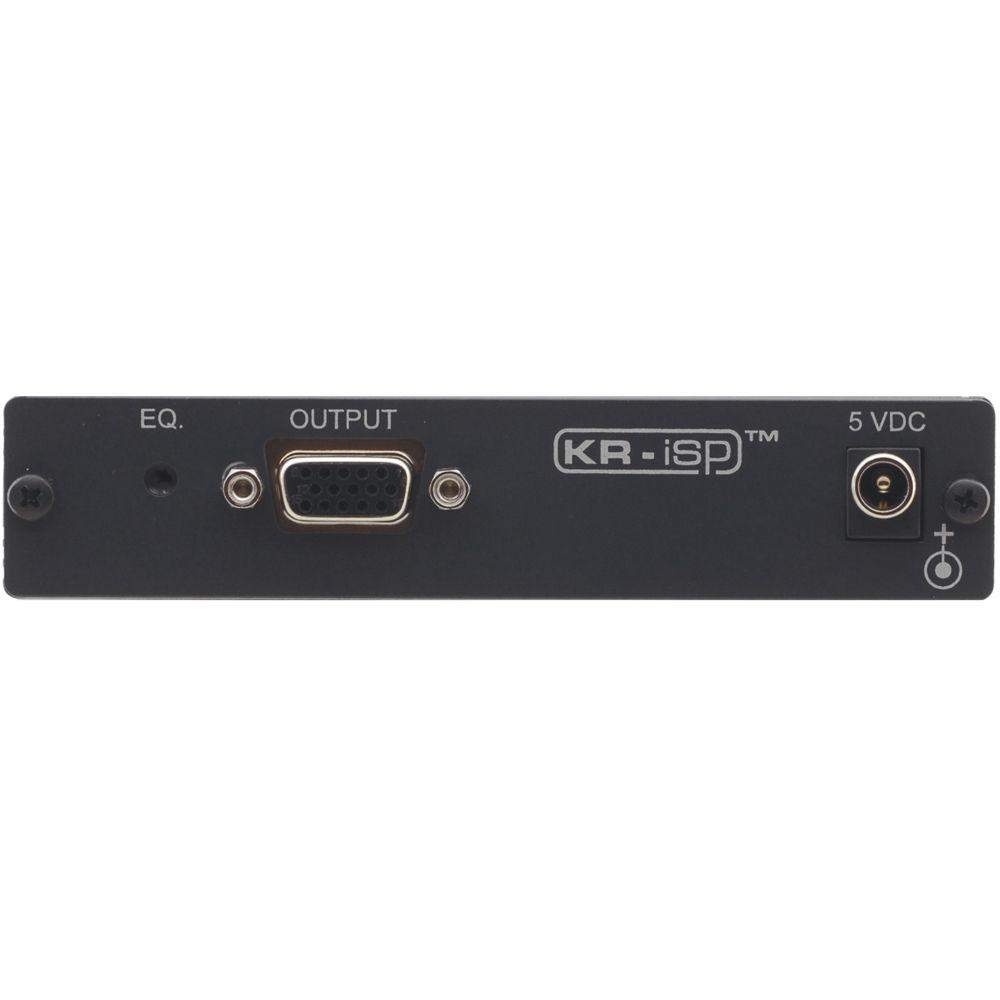

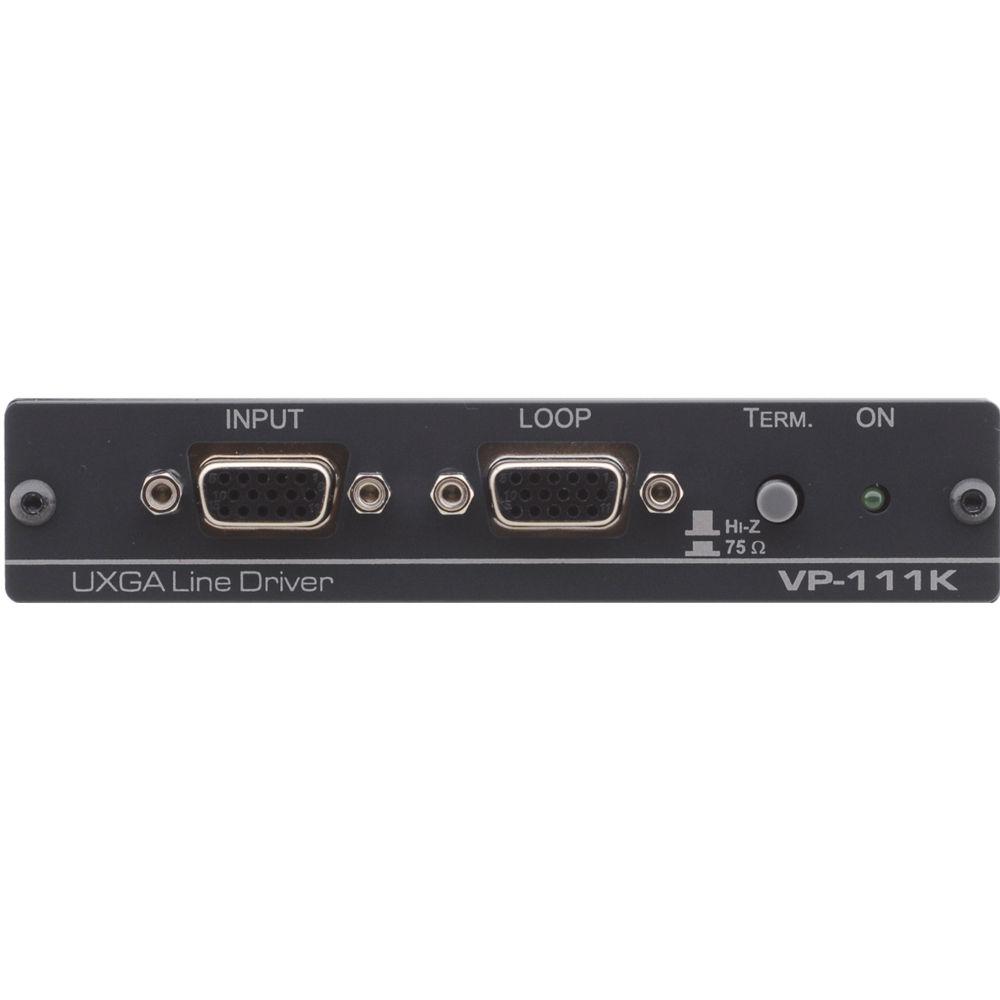

Product description The Kramer 1:1 Computer Graphics Video Line Amplifier is a line driver that compensates for signal losses (signals exceeding UXGA, 1600 x 1200 pixels) in long cable runs. The line amplifier is applicable for dual monitor and presentation systems as well as for remote transmission and cable equalization. The Kr-isp Advanced Sync Processing technology, which can be enabled or disabled, restores the sync signal waveform and ensures compatibility with an array of computers (even at low sync level). The amplifier has 1 XGA input and output on a 15-pin HD connector and is compatible with HDTV component video signals using the breakout cable (Kramer CGM/3RVF). S/N ratio of 75dB means clear signals without any grainy video noise. The 500MHz bandwidth at -3dB ensures transparency even at the highest resolution. An EQ trimmer adjusts the cable compensation equalization level for the output. The optional RK-3T rack adapter allows 3 units to be mounted side-by-side in a 1U rack space. Note: Optional rack adapter available (RK-3TR) - High-performance amplifier with a resolution higher than UXGA
- Applicable for dual monitor systems (local and monitor) and presentation systems for remote transmission and cable equalization
- Kr-isp Advanced Sync Processing technology ensures compatibility with wide range of computers
- High bandwidth - 500MHz (-3dB)
- 1 XGA input on a 15-pin HD connector
- 1 XGA output and loop on 15-pin HD connectors
- Optional RK-3TR 19" rack adapter
In the Box Kramer 1:1 Computer Graphics Video Line Amplifier Power Adapter User Manual 7-Year Warranty User Manual PDF 2mbyeevzurefcduwserezwaazusfcdbau Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 1:1 Computer Graphics Video Line Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-111K Specs | | | Ports | Transmitter:
1 x HD15 (Input)
1 x HD15 VGA (Output) | | | | Bandwidth | 500 MHz | | Signal-to-Noise Ratio | 75 dB | | | | Dimensions | 4.7 x 1.0 x 2.8" / 12.0 x 2.4 x 7.2 cm | | Weight | 0.7 lb / 317.5 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.0 x 4.8 x 3.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
