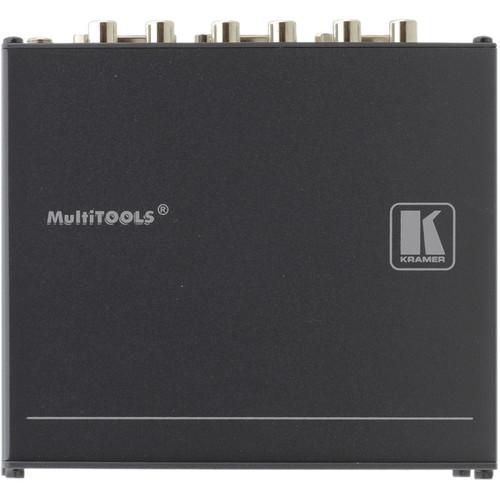

User Manual for Kramer 1:2 Computer Graphics Video & Stereo Audio Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer 1:2 Computer Graphics Video &
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
|
User manual for the Kramer 1:2 Computer Graphics Video & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer 1:2 Computer Graphics Video & Stereo Audio Distribution Amplifier accepts 1 computer graphics video or stereo audio signal and distributes it to 2 identical outputs. It supports resolution up to or higher than UXGA (Ultra eXtended Graphics Array).
With a high video bandwidth of 380MHz (-3dB), the amplifier remains transparent even at high-resolutions such as UXGA (1600 x 1200). Based on Kr-isp Advanced Sync Processing technology, the 1:2 Distribution Amplifier restores the sync signal waveform and provides sharp and stable images even at low sync levels, making the unit compatible with most computers. The amplifier also includes ID bit control and supports DC coupling. An optional RK-13 rack adaptor allows you to mount 3 units side-by-side in a 1U rack space. The amplifier is suitable for use with presentation systems in schools and churches. - Accepts 1 computer graphics video or stereo audio signal and distributes it to 2 identical outputs
- Supports resolution up to or higher than UXGA (Ultra eXtended Graphics Array)
- Offers high video bandwidth of 380MHz (-3dB) and remains transparent even at high-resolutions such as UXGA (1600 x 1200)
- Kr-isp Advanced Sync Processing technology restores the sync signal waveform and provides sharp and stable images even at low sync levels, making the unit compatible with most computers
- Offers ID bit control and supports DC coupling
- Optional RK-13 rack adaptor for mounting 3 units side-by-side in a 1U rack space
- Suitable for use with presentation systems in schools and churches
In the Box Kramer 1:2 Computer Graphics Video & Stereo Audio Distribution Amplifier 5VDC power supply User Manual 7-year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 1:2 Computer Graphics Video & Stereo Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-2K Specs | Input | Video: 1 UXGA on a 15-pin HD (F) connector Audio: 1 audio stereo on RCA connectors | | Outputs | Video: 2 UXGA on 15-pin HD (F) connectors; Audio: 2 audio stereo on RCA connectors | | Output Level | Video: 2.2Vpp; Audio: 6.8Vpp | | Bandwidth | Video: 380MHz Audio: >100kHz | | Differential Gain | 0.03% | | Differential Phase | 0.03º | | K Factor | <0.05% | | Signal to Noise Ratio | Video: 73dB Audio: 89dB | | Controls | UXGA: Level: -1.1dB to 6.5dB EQ.: 0dB to 5.3dB@50MHz Audio Level: -50dB to 6.2dB ID BIT switch coupling switches sync processing (normal or Kr-isp) | | Coupling | Video: DC/AC selectable Audio: input AC; output DC | | Audio THD + Noise | 0.064% | | Audio 2nd Harmonic | 0.002% | | Power Source | 5VDC, 138mA | | Dimensions (WxDxH) | 6.4 x 4.2 x 1.7" (16.2 x 10.7 x 4.4 cm) | | Weight (Approx.) | 1.5lb (0.7kg) | | Options | RK-13 19" rack mount |
