User Manual for Kramer 1:2 HDMI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer 1:2 HDMI Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
 |
User manual for the Kramer 1:2 HDMI Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

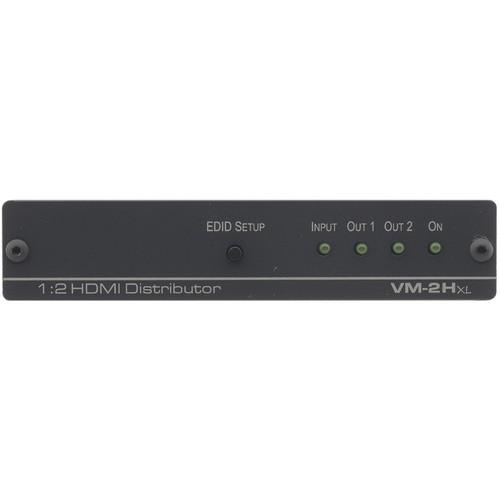

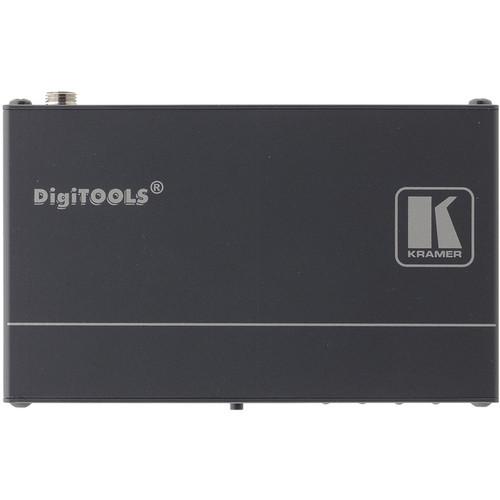

Product description The Kramer 1:2 HDMI Distribution Amplifier is designed to distribute HDMI signals across 2 identical outputs. Featuring reclocking and equalizing input signals, the distribution amplifier rebuilds signal integrity for transmission over longer distances. Offering 2.25Gbps data transfer rate, it provides loss-less transmission on both output ports.
Featuring I-EDIDPro for EDID processing, the 1:2 HDMI Distribution Amplifier offers an intelligent EDID handling and processing algorithm for plug-n-play operation with HDMI systems. In addition, it supports HDMI v1.4 with Deep Color, x.v.Color, Lip Sync, CEC, and 3D pass-through. The distribution amplifier is compatible with HDTV’s and is compliant with HDCP standards. It features an active output LED indication, and 3 units of the video distribution amplifier can be racked together in 1 RU space (when used with an optional RK-3T rack adaptor). - Designed to distribute HDMI signals across 2 identical outputs
- Features reclocking and equalizing input signals
- Rebuilds signal integrity for transmission over longer distances
- Data transfer rate - 2.25Gbps
- Loss-less transmission on both output ports
- Features I-EDIDPro for EDID processing - Intelligent EDID handling and processing algorithm for plug-n-play operation with HDMI systems
- Supports HDMI v1.4 with Deep Color, x.v.Color, Lip Sync, CEC, and 3D pass-through
- 3 units of the video distribution amplifier can be racked together in 1 RU space (when used with an optional RK-3T rack adaptor)
In the Box Kramer 1:2 HDMI Distribution Amplifier Power Supply Bracket Installation Kit 7-Year Warranty User Manual PDF 709.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 1:2 HDMI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

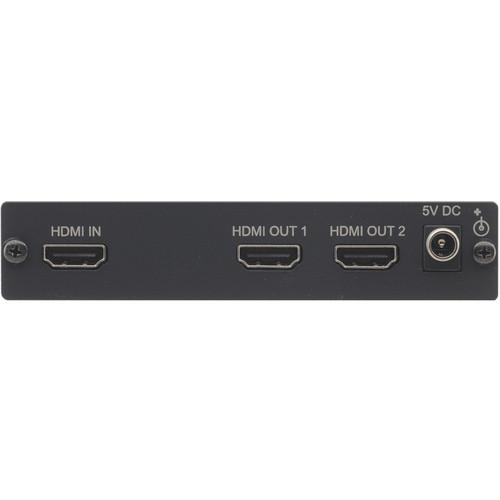

Technical parametersKramer VM-2HXL Specs | Input | 1 HDMI connector | | Output | 2 HDMI connectors | | Bandwidth | Supports up to 2.25Gbps bandwidth per graphic channel | | Controls | EDID SETUP button, input select button | | Indicators | IN 1, IN 2, OUT 1, OUT 2, and ON LEDs | | Power Source | 5V DC, 910mA | | Dimensions (WxDxH) | 4.7 x 2.8 x 1.0" (12 x 7.2 x 2.4 cm) | | Weight | 0.67 lb (0.3 kg) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.1 x 4.9 x 3.4" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
