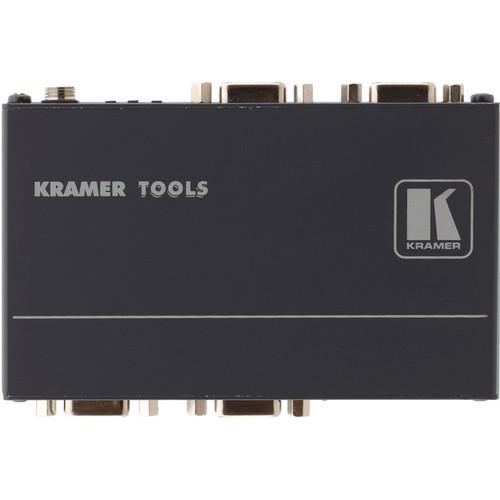

User Manual for Kramer 1:3 Computer Graphics Video Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer 1:3 Computer Graphics Video Distribution
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
 |
User manual for the Kramer 1:3 Computer Graphics Video Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

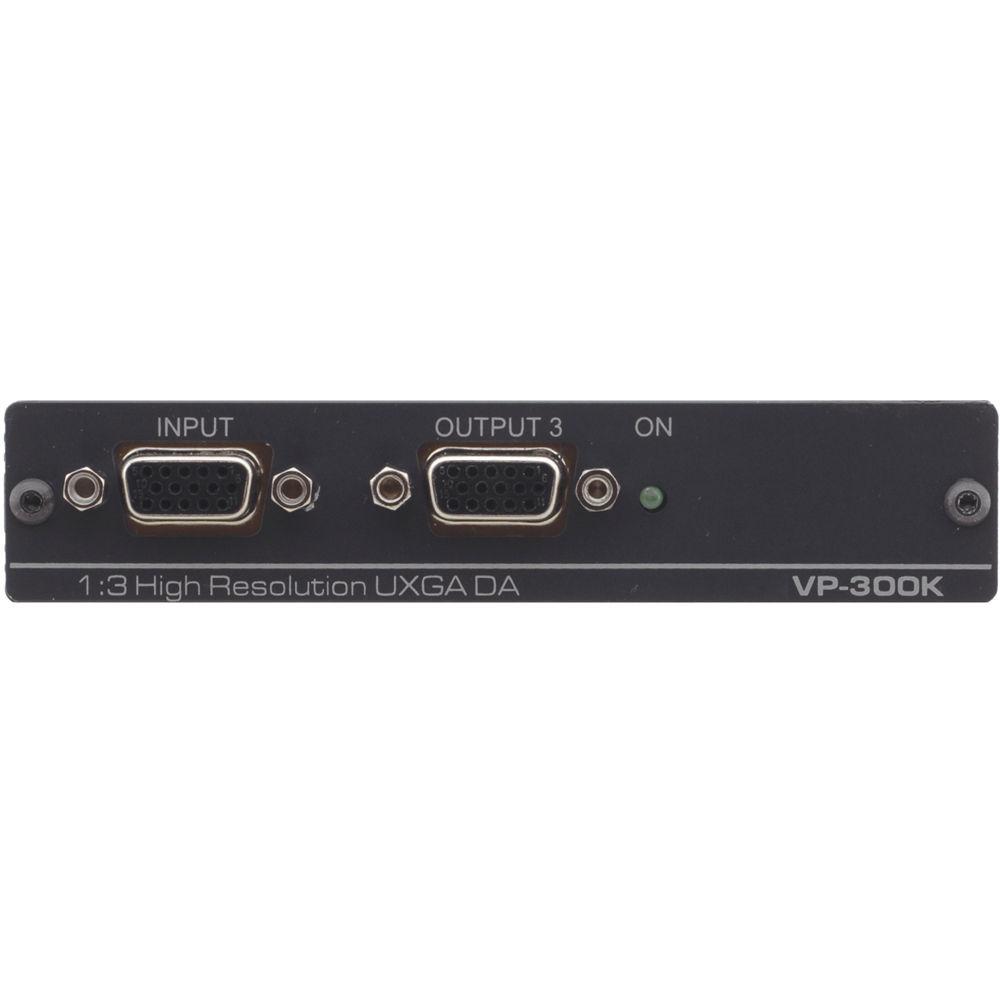

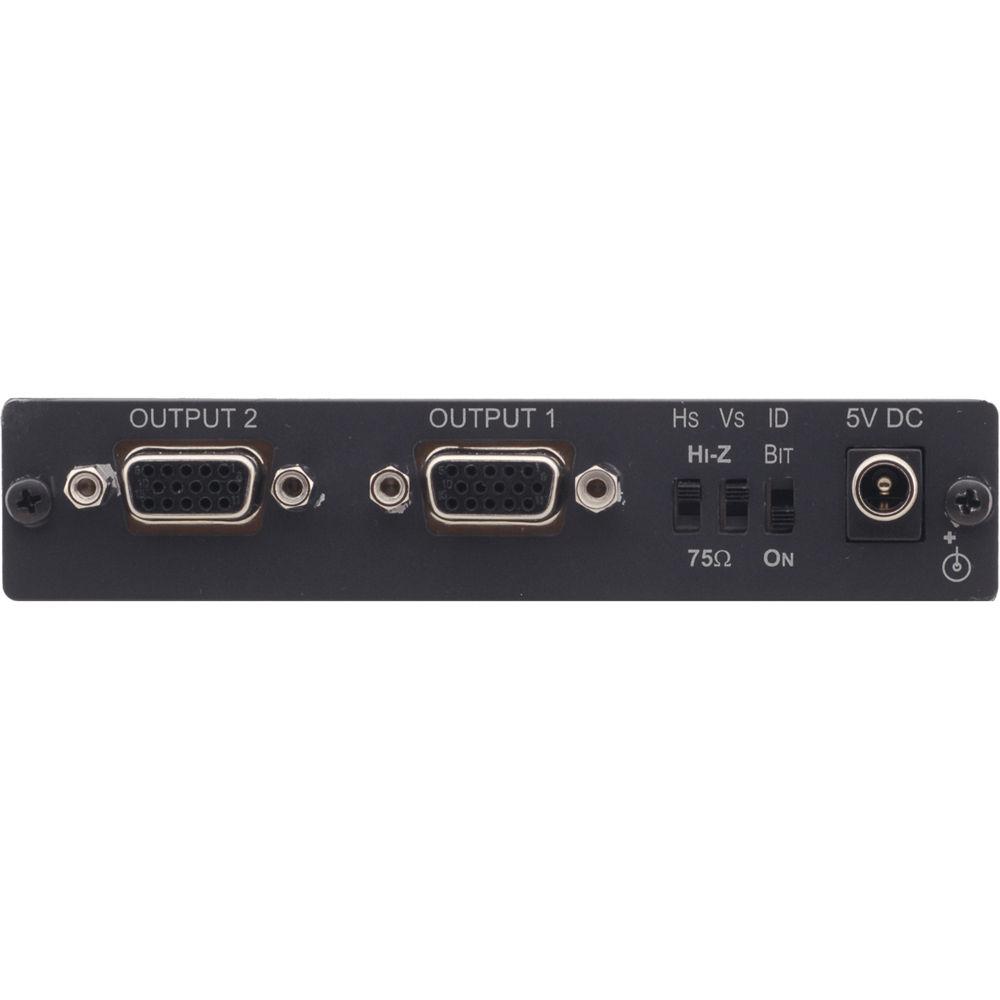

Product description The Kramer 1:3 Computer Graphics Video Distribution Amplifier for computer graphic signals offers a resolution up to or higher than UXGA (Ultra eXtended Graphics Array), and is suitable for dual monitor systems, stores, POS, and presentation systems. The amplifier accepts 1 input, provides correct buffering and isolation, and then distributes the signal to 3 or identical outputs on high-density 15-pin HD connectors. With video bandwidth greater than 400 MHz, the amplifier remains transparent even at high-resolution graphic modes such as UXGA (1600 x 1200). The amplifier supports DDC (Display Data Channel) communication between the input and output 1 high-density 15-pin HD connectors. The distribution amplifier reads the EDID of the acceptor connected to the output and then passes the data to the graphics source. Compatible with HDTV component signals, the unit uses the Kramer CGM/3RVF breakout cable. The Kramer's Kr-isp Advanced Sync Processing technology restores the sync signal waveform, resulting in sharp and stable images even at low sync levels; this makes the unit compatible with most computers. The amplifier includes ID bit control, a polarity switch, a 3' 15-pin HD cable, and supports DC coupling. The optional RK-3T rack adapter allows you to mount 3 units side-by-side in a 1U rack space. - Distribution amplifier for computer graphic signals
- Resolution up to or higher than UXGA
- Accepts 1 input, provides correct buffering and isolation, and distributes the signal to 3 identical outputs
- Ideal for dual monitor systems, stores, presentation systems, and POS
- High video bandwidth greater than 400 MHz ensures that the amplifier remains transparent at high-resolution graphics mode
- EDID Support - EDID data is passed to the source from the display connected to output
- Kramer's Kr-isp Advanced Sync Processing technology
- Provides sharp and stable images
- Restores the sync signal waveform, resulting in sharp and stable images even at low sync levels, making it compatible with most computers
- Compatible with HDTV component signals using the Kramer CGM/3RVF breakout cable
- DDC support - EDID is exchanged, when establishing a VGA connection between a PC or laptop and a display device, which is carried over the DDC channel. In some PC graphic cards and laptops, this information exchange is required for proper VGA OUT operation
- Includes ID bit control and polarity switch
- 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter
In the Box Kramer 1:3 Computer Graphics Video Distribution Amplifier Power Supply Mounting Bracket 3-Year Warranty User Manual PDF 760.4kbbcvzubyw Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 1:3 Computer Graphics Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-300K Specs | Physical | INPUT: 1 UXGA on an 15-pin HD connector OUTPUTS: 3 UXGA on 15-pin HD connectors MAX. OUTPUT LEVEL: 2.2Vpp BANDWIDTH (-3dB): 400MHz DIFF. GAIN: 0.03% DIFF. PHASE: 0.03Deg K-FACTOR: <0.05% S/N RATIO: 72dB @5MHz CONTROLS: Internal ID BIT switch; internal analog/TTL switches for setting the sync COUPLING: DC POWER SOURCE: 5V DC, 130mA | | Option | RK-3T 19" rack adapter | | Dimensions (WxDxH) | 4.8 x 2.8 x 1" (12.1 x 7.2 x 2.4cm) | | Weight | 0.7 lbs (0.3kg) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.0 x 4.9 x 3.5" |
