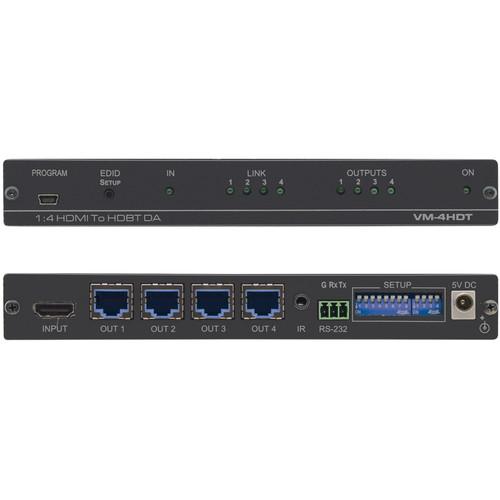

User Manual for Kramer 1:4 UHD 4K HDMI over HDBaseT Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer 1:4 UHD 4K HDMI over
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
|
User manual for the Kramer 1:4 UHD 4K HDMI over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description Provided by third party: The VM-4HDT is a high-quality 1:4 4K UHD HDMI to HDBT distribution amplifier that takes one HDMI input, equalizes and reclocks the signal and distributes it to four identical HDBT outputs. The VM-4HDT distributes signals having resolutions of up to 4K and including WUXGA and 1080p. - Maximum Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- Max. Resolution - Up to 4K UHD and WUXGA, including 4K @60Hz (4:2:0).
- HDMI Support - 3D, Deep Color, x.v.Color™, 3D.
- HDCP Compliance - Sources that support HDCP output HDCP protected content.
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling and processing algorithm that ensures Plug and Play operation for HDMI systems.
- Default EDID - For fast and efficient connection.
- 3D Pass-Through.
- Range - 70m (230ft).
- Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 1:4 UHD 4K HDMI over HDBaseT Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-4HDT Specs | | | Maximum Video Resolution | 4096 x 2160 | | | | HDMI In | Yes | | Network (RJ-45) | Yes | | Serial Port | Yes | | Number of HDMI Inputs | 1 | | Number of Network (RJ-45) Ports | 4 | | | | Maximum Operating Distance | 229.66 ft | | | | Height | 1.2" | | Width | 7.4" | | Depth | 4.5" | | Weight (Approximate) | 1.01 lb | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 13.6 x 6.7 x 2.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
