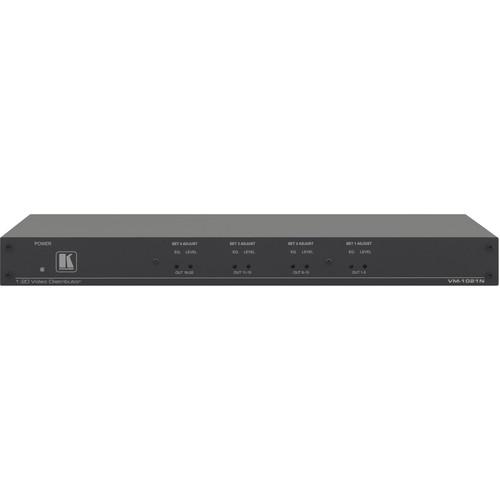

Product description The 1RU 1 x 20 Composite/SDI Video Distribution Amplifier from Kramer is a high-performance, one BNC input/twenty BNC output, distribution amplifier for composite or SDI video signals. It provides controls to compensate for signal losses inherent to long cable runs.
The VM-1021N is suitable for broadcast, production, and editing facilities, and any professional system requiring high-quality signal distribution. You can also have computer RGB or component video distribution by using multiple VM-1021N units in parallel. - Grouped Level & EQ controls
- Looping input, high bandwidth
- Selectable input signal termination
- Clamping − Black or Sync Tip
In the Box Kramer 1 x 20 Composite/SDI Video Distribution Amplifier Rack Ears Power Cord Limited 7-Year Warranty Manual PDF 1.2mbbbrbbsrbfdddewxdxrftcsdczrdwaqwyyt Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 1 x 20 Composite SDI Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-1021N Specs | Connectors | 1 x BNC, composite/SDI video input
1 x BNC, composite/SDI input looping video output
20 x BNC, composite/SDI video output | | Impedance | Input: 75 ohms
Output: 75 ohms | | Voltage | Input: 1 Vp-p
Output: 1 Vp-p | | Controls | Switch, input termination
Level: -1.1 dB to +2.7 dB
EQ: 0 to 2.9 dB @ 4.4 MHz | | Bandwidth | 350 MHz (-3 dB) | | Differential Gain | 0.1% | | Differential Phase | 0.07° | | K-Factor | <0.05% | | Video S/N Ratio | 74 dB | | Nonlinearity | 0.1% | | Temperature & Humidity | Operating: 32 to 104°F (0 to 40°C)
Storage: -40 to 158°F (-40 to 70°C)
Humidity: 10% to 90%, RHL non-condensing | | Coupling | DC | | Power Consumption | 230 VAC, 50-60Hz (115 V USA), 6.7 VA | | Dimensions | 19.00 x 7.00 x 1.75" (48.3 x 17.8 x 4.4 cm) | | Weight | 5.7 lb (2.6 kg) approx | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 21.6 x 11.0 x 4.3" |
