User Manual for Kramer 100' CAT6a HDBaseT Cable Click to enlarge the picture
Contents of the user manual for the Kramer 100' CAT6a HDBaseT Cable
- Product category: Ethernet Cables Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Ethernet Cables
|
User manual for the Kramer 100' CAT6a HDBaseT Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

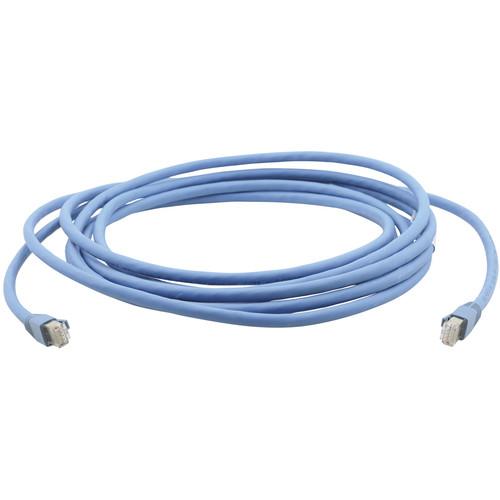

Product description Connect your HDBaseT-compatible equipment with the blue 100' Kramer CAT6a HDBaseT Cable. It features gold-plated RJ-45 connectors to help resist corrosion and enhance data transfer speeds. - Construction Features
-
- Conductors: 4 x 2 x 23 AWG, annealed copper
- Conductor Outer Diameter: 0.56 ± 0.01mm
- Insulation Material: Skin/foam/skin HDPE
- Insulation Outer Diameter: 1.33 ± 0.1mm
- Color: Per TIA/EIA 568-B
- Screening: Alu/PET per pair (Alu side out)
- Drain Wire: 90% tinned copper
- Drain Wire Outer Diameter: 0.4 ± 0.01mm
- Jacket: LSHF, blue RAL5012
- Physical Features
-
- Maximum Pulling Tension: 100 N
- Bending Radius: Installation 2.36", Installed 1.97"
- Operation Temperature: -4 to 140°F
- Storage/Transport/Installation Temperature: 32 to 122°F
- Electrical Features
-
- Impedance at 1 to 100 MHz: 100
|
Upload User Manual
Have you got an user manual for the Kramer 100' CAT6a HDBaseT Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer C-UNIKAT-100 Specs | | | Cable Length | 100' / 30.48 m | | Ethernet Standards | Cat 6a | | Connector 1 | RJ45 Male | | Connector 2 | RJ45 Male | | Compatibility | 10/100/1000 Base-T | | | | Bandwidth Rating | 500 MHz | | Conductor DC Resistance | 0.0243 Ohms/ft (Up to 3280' / 1000 m) | | Capacitance | 0.4572 pF/ft | | Impedance | 100 Ohms | | | | Shielding | None | | Cable Configuration | Solid | | Outer Diameter | 0.052" / 1.33 mm | | Wire Gauge | 23 AWG | | Contact Plating | Gold | | Insulation | HDPE | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 9.3 x 9.2 x 3.0" |
