User Manual for Kramer 101L 1:1 Composite Video Line Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer 101L 1:1 Composite Video Line
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
 |
User manual for the Kramer 101L 1:1 Composite Video Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

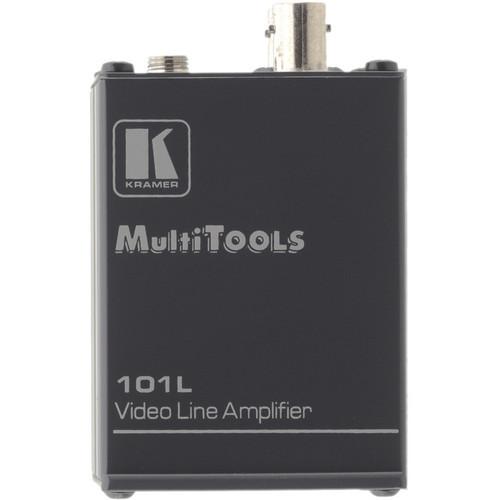

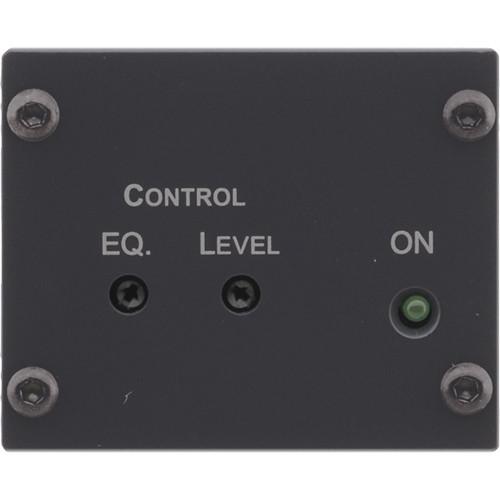

Product description The 101L 1:1 Composite Video Line Amplifier from Comprehensive/Kramer is designed for use with composite and other video signals. This unit provides controls that allow you to improve video level and image details by compensating for the signal loss inherent in long cable runs. It offers bandwidth of -500MHz, ensuring optimum picture quality. Also included are recessed level (gain) and EQ (peaking) controls. This amplifier belongs to the Kramer MultiTOOLS family of products and up to (8) of these units can be mounted side by side in 1U of a standard equipment rack. - Line Amplifier
- Use this unit to maintain the signal integrity of your video signals, even with extended cable runs.
- Signal Quality
- This device includes a number of features that allow you to adjust and maintain signal quality, including high throughput and gain & EQ controls.
- MultiTOOLS
- This amplifier belongs to the Kramer MultiTOOLS family of products and up to (8) of these units can be mounted in 1U of rack space.
In the Box Kramer 101L 1:1 Composite Video Line Amplifier Line Amplifier Power Supply Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 101L 1:1 Composite Video Line Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

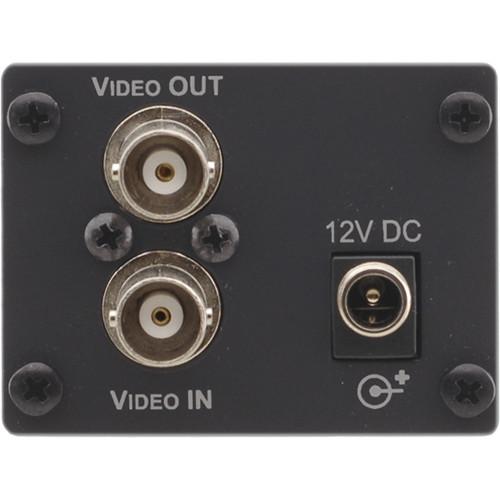

Technical parametersKramer 101L Specs | Construction | Metal | | Finish | Black | | Input | (1) composite video on a BNC connector, 1Vpp/75 Ohms | | Output | (1) composite video on a BNC connector, 1Vpp/75 Ohms | | Output Level | 2.5Vpp (maximum) | | Bandwidth | 500MHz | | Differential Gain | 0.03% | | Differential Phase | 0.03° | | Signal-to-Noise Ratio | 75dB | | Controls | Level: -0.8dB to 6.5dB
Equalization: 0dB to 8dB @ 5MHz | | Coupling | DC | | Power | 12VDC, 60mA | | Dimensions (HxWxD) | 2.85 x 2.09 x 1.72" (7.25 x 5.32 x 4.36cm) | | Weight | 0.55 lbs (0.15kg) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 9.2 x 5.6 x 3.9" |
