User Manual for Kramer 104LN 1x4 Composite Video Line Amplifier, Differential Input Click to enlarge the picture
Contents of the user manual for the Kramer 104LN 1x4 Composite Video Line
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
 |
User manual for the Kramer 104LN 1x4 Composite Video Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

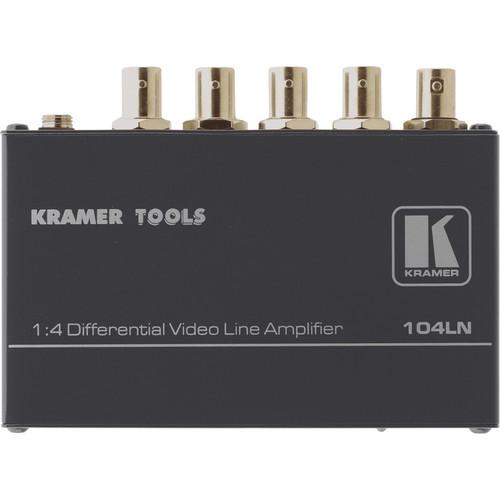

Product description The 104LN is a unique piece of equipment that combines the functions of a distribution amplifier and a line driver. It accepts one composite video input and distributes a signal to four buffered outputs; gain and EQ controls are used to adjust the output level and equalization. The controls are used to compensate for signal losses in such situations as long cable runs. This model offers a differential input for noise elimination. - Controls

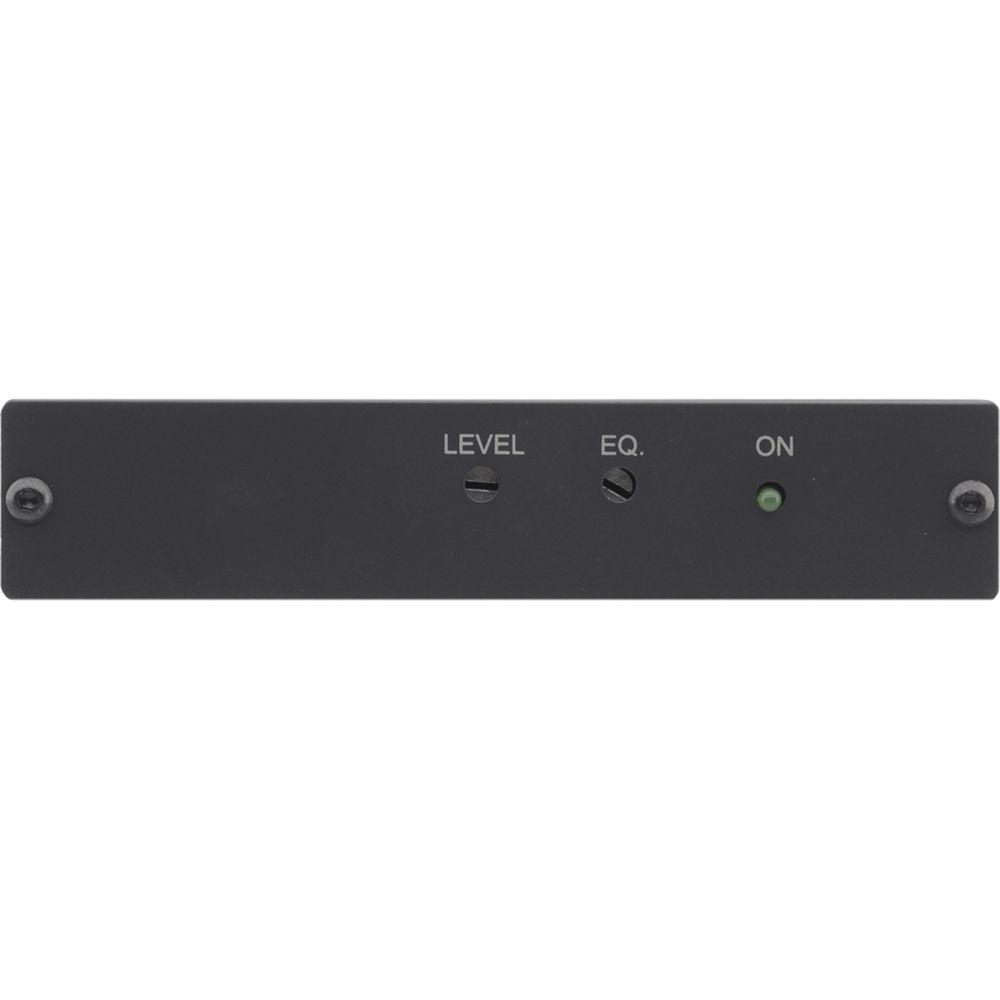

- The gain control adjusts the level of the overall signal; the EQ control boosts the upper frequencies that are inherently most susceptible to loss.
- High Bandwidth
- At 400 MHz the bandwidth of this unit exceeds all standards for passing a composite video signal.
- Compact Size
- It is able to be mounted in small areas and it is compact enough to fit into a travel bag for portable applications.
- AC or DC Operation
- This unit comes with an AC power supply as standard equipment but, can also be powered from 12 VDC portable supplies for applications where AC power isn't easily accessed.
- Differential Input
- The step up feature of this model is the "differential input" offering noise elimination features.
In the Box Kramer 104LN 1x4 Composite Video Line Amplifier, Differential Input AC Power Supply Mounting Bracket 3 Year Warranty User Manual PDF 825.6kbyqdtxxyxvuxwrsvzcxzeywwwwfsad Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 104LN 1x4 Composite Video Line Amplifier, Differential Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

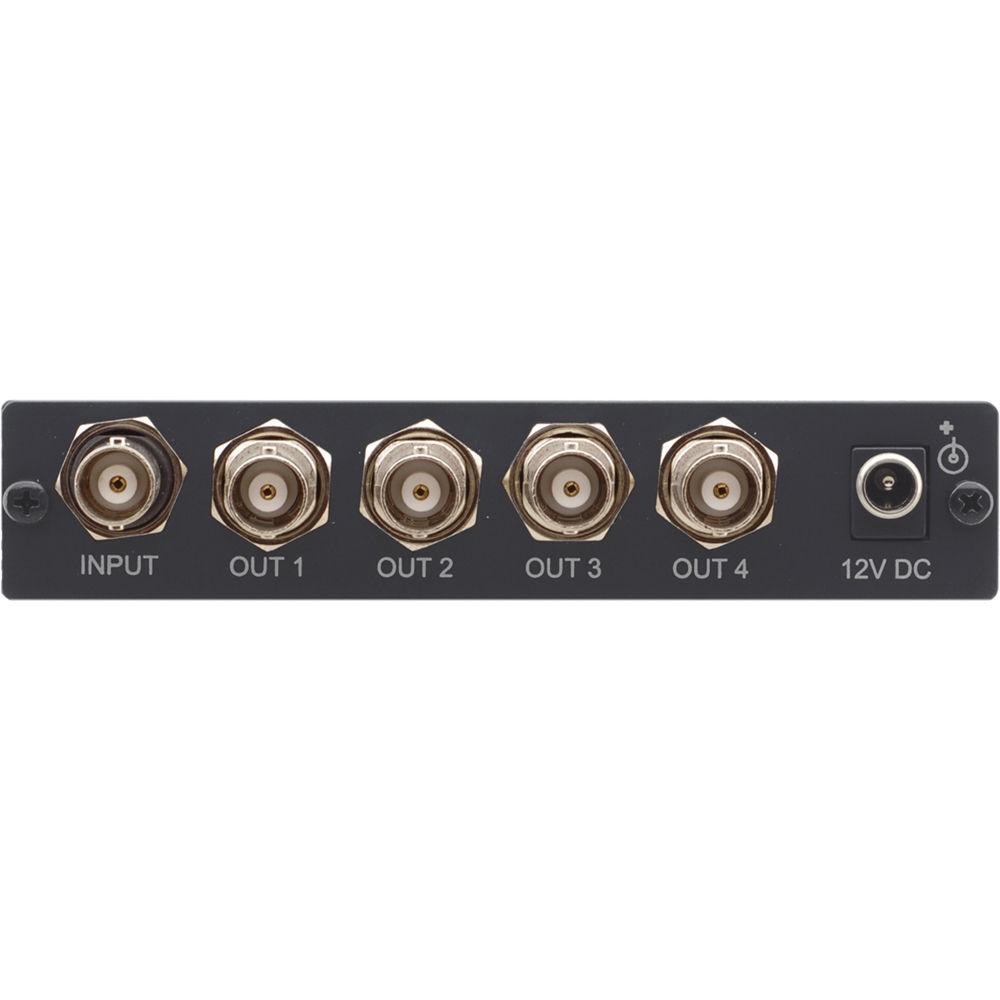

Technical parametersKramer 104LN Specs | Input | One composite video, 1 Vpp @ 75 ohms
On one BNC connector | | Output | Four composite video, 1 Vpp @ 75 ohms
On four BNC connectors | | Video Bandwidth | 400 MHz | | Video Signal-to-Noise Ratio | 73.3 dB | | Differential Phase | 0.1° | | Differential Gain | 0.22% | | Video Control | Level: -1.3 to 6 dB
EQ: 0 to 10.2dB | | Coupling | Not Specified by Manufacturer | | Dimensions (WxDxH) | 4.7 x 2.95 x 0.98"
12 x 7.5 x 2.5cm | | Weight | 0.71 lbs
0.32 kg | | Power Source | 12 VDC @ 30 mA
On a Supplied AC Adapter | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 9.2 x 4.9 x 3.3" |
