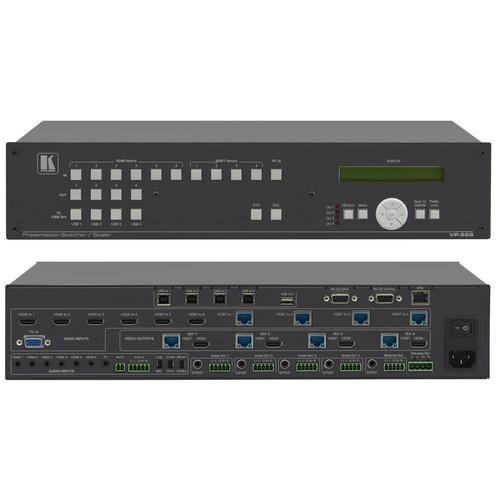

User Manual for Kramer 11x4:2 Presentation Matrix Switcher & Scaler System Click to enlarge the picture
Contents of the user manual for the Kramer 11x4:2 Presentation Matrix Switcher &
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer 11x4:2 Presentation Matrix Switcher & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The 11x4:2 Presentation Matrix Switcher and Scaler System from Kramer can output four independently scaled images with support for analog, digital, and embedded audio. Each output includes an HDMI and HDBaseT connector. The scaler features six HDMI inputs, four HDBaseT inputs, an analog VGA input, and a 4x1 USB switcher. It also includes a microphone input, independent stereo audio outputs, a monitor output, an amplified speaker output, and an audio digital signal processor (DSP). - Pix-Perfect scaling technology allows for precise pixel mapping and high-quality full upscaling and downscaling
- Built-in ProcAmp allows you to adjust color, hue, sharpness, noise, contrast, and brightness
- Supports up to 1080p/UXGA output resolution
- Multiple aspect ratio selections
- Supports up to 230' for the HDBT inputs and outputs
- Input/output audio level adjustment
- Selectable microphone talkover or mix modes
- Analog and embedded audio support
- Can be set to follow the switching of the video layer, or can act as an independent switcher
- Built-in web pages for easy setup and remote control
- OSD (On Screen Display) for easy setup and adjustment, accessible via the front panel buttons
- Firmware upgrade via Ethernet
- HDTV compatible and HDCP compliant
In the Box Kramer 11x4:2 Presentation Matrix Switcher & Scaler System Power Cord Rack Ears Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 11x4:2 Presentation Matrix Switcher & Scaler System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-558 Specs | Inputs | 6 x HDMI connector
1 x 15−Pin VGA
4 x HDBT RJ−45 connectors
4 x USB port
6 x Unbalanced analog audio 3.5 mm mini jacks, for HDMI
1 x Unbalanced analog audio 3.5 mm mini jack for PC
1 x Aux in/mic balanced stereo audio on a 5−pin terminal block connector | | Outputs | 4 x HDBT on RJ−45 connectors
4 x HDMI
1 x USB port
4 x Audio, balanced stereo on 5−pin terminal block connectors
4 x Audio, S/PDIF on RCA connectors
1 x Monitor, balanced stereo on a 5−pin terminal block connector
1 x Monitor, S/PDIF on an RCA connector
1 x Stereo speaker (2 x 10 W into 4 Ohms), on a 4−pin terminal block connector | | Output Resolutions | Native:
1920 x 1200 @ 60
1920 x 1080p @ 60
1920 x 1080i @ 60
1920 x 1080p @ 50
1920 x 1080i @ 50
1680 x 1050 @ 60
1600 x 1200 @ 60
1400 x 1050 @ 60
1440 x 900 @ 60
1360 x 768 @ 60
1280 x 1024 @ 60
1280 x 768 @ 60
1280 x 800 @ 60
1280 x 720p @ 60
1280 x 720p @ 50
1024 x 768 @ 60
800 x 600 @ 60
720 x 576p @ 60
720 x 480p @ 60
640 x 480 @ 60 | | Controls | HDMI 1/2/3/4/5/6
HDBT 1/2/3/4
PC
USB 1/2/3/4 input selector buttons
Menu
Enter
Menu arrows
Reset to XGA / 720p
OSD select
2 x RS−232
Ethernet
Line/Mic selector switch
Cond/Dyn (48 V) selector switch
Mono/Stereo selector switch
REM for muting audio | | Power Consumption | 100 to 240 VAC, 70 VA maximum | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | −40 to 158°F (−40 to 70°C) | | Relative Humidity | 10 to 90%, Non-condensing | | Dimensions | 19 x 14.4" (48.3 x 36.6 cm)
2 RU | | Weight | 11 lb (5 kg) Approximately |
