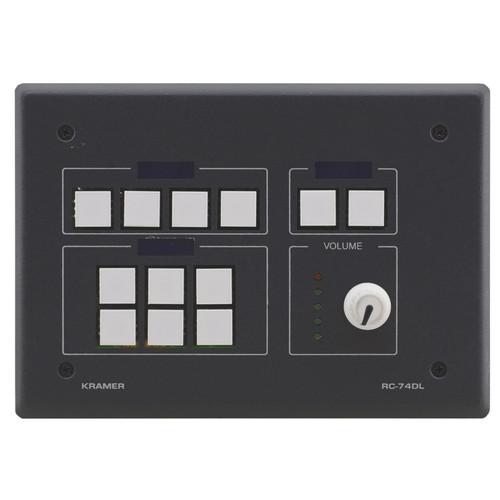

Product description The black Kramer RC-74DL is a 12-button master room controller with a digital volume knob for multimedia rooms. It can function either as a standalone controller or as part of a more complex room control system to control audio components, video components, and other room facilities such as lights and screens. - Key Features
-
- 12 programmable buttons (3 groups; color, back−lit, label capable)
- Configurable digital volume control knob
- Programmable back-lit LCD group labels
- Macro capability -- carries out multiple commands with a single press of a button
- Command banks -- each button offers multiple layers of functions for alternate behavior, toggle functionality, and more
- One USB port for programming
- Three bidirectional RS-232 ports -- control AV equipment such as projectors, LCD and PDP displays, power amplifiers, switchers, and scalers
- Two IR outputs -- additional control port for AV equipment
- IR learning function -- learns commands from IR remotes
- Four contact closure ports -- conveniently control other room items related to the AV system, such as raising and lowering drapes, the screen, or the projector
- Two GPI/O ports -- general purpose I/O ports that can be configured by K−Config as digital inputs, digital outputs, or analog inputs for interfacing with a variety of devices such as sensors, switches, LEDs, or relays
- Two K-NET connectors -- connect to other control panels or a central control processor
- K-NET control channel -- provides power and control data to the wall plate controllers over a single cable
- Kramer Site-CTRL compatible -- for network remote control and management using Kramer Site−CTRL software over the Ethernet port
- Configured with Kramer K-Config software
- Mud ring supplied for easy installation
- Size: 3-gang wall plate (U.S.)
In the Box Kramer 12-Button Master Room Controller with Digital Volume Knob (Black) Power Supply Mud Ring Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 12-Button Master Room Controller with Digital Volume Knob in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer RC-74DL(B) Specs | Ports | 3 x RS−232
1 x RS−485
2 x GPI/O
2 x K−NET on-terminal block connectors
1 x RJ−45 Ethernet connector
1 x Infrared sensor
1 x USB port for programming | | Outputs | 2 x IR
4 x relays (36 VAC or DC, 2 A, 60 VAC maximum on non−inductive load) | | Default IP Settings | IP Number: 192.168.1.39
Mask: 255.255.0.0
Gateway: 0.0.0.0 | | Power Consumption | 12 VDC, 570 mA | | Dimensions | 6.4 x 1 x 4.5" (16.3 x 2.5 x 11.4 cm) | | Weight | Approx. 1.4 lb (0.6 kg) | | | | Box Dimensions (LxWxH) | 35.1 x 21.2 x 7.2" |
