User Manual for Kramer 15-Pin VGA Male to 45° Male Plenum Cable with 3.5mm Audio Click to enlarge the picture
Contents of the user manual for the Kramer 15-Pin VGA Male to 45°
- Product category: VGA to VGA Cables Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer VGA to VGA Cables
|
User manual for the Kramer 15-Pin VGA Male to 45° contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

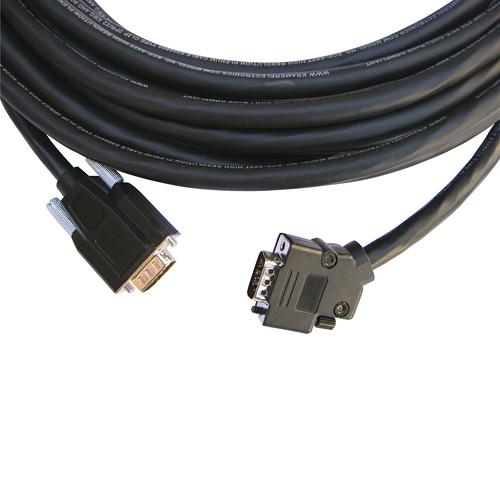

Product description The 15-Pin VGA Male to 45º Male Plenum Cable with 3.5mm Audio from Kramer enables you to connect VGA devices in installations that require plenum rated cables. It features slim connectors with a shallow depth profile, simplifying installations while minimizing cable clutter. One end has a standard VGA connector, and on the other end is an extra shallow 45º VGA connector with removable metal shells to provide you with additional options for installation in tight quarters.Note: For best results, keep plenum cable at room temperature for 24 hours before use. - Plenum Rating
- Constructed from CL2P and CMP rated cables
- Quality Construction
- Molded and back shell connectors
- Flexible Applications
- RGBHV signals are all assigned to coaxial so it's easy to cut and convert one end to five BNCs in the field if needed, since audio travels on an independent shielded pair
- Companion Wall Plates
- Compatible with Kramer wall plates
In the Box Kramer 15-Pin VGA Male to 45° Male Plenum Cable with 3.5mm Audio (35') Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 15-Pin VGA Male to 45° Male Plenum Cable with 3.5mm Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer CP-GMA/GMA/XL-35 Specs | Attenuation | dB/100':
−3.6 dB @ 50 MHz
−4.3 dB @ 75 MHz
−5.1 dB @ 100 MHz
−7.4 dB @ 200 MHz
−11.8 dB @ 400 MHz
−21.4 dB @ 1000 MHz | | Wire Gauge | Coaxial: 26 AWG
Shielded Pair: 22 AWG | | Conductor | Coaxial: 7/34 Tinned copper
Shielded Pair: 7/30 Tinned copper | | Dielectric | Foam FEP | | Shielding | Coaxial: 38 AWG Tinned copper 95% spiral / 100% aluminum Mylar foil
Shielded Pair: 100% Aluminum/poly foil | | Jacket Material | Outer: Lead-free plenum rated PVC | | Diameter | Center Conductor: 0.01" (0.48 mm)
Dielectric: 0.07" (1.83 mm)
Individual Coaxial: 0.1" (2.59 mm)
Jacketed Pair: 0.1" (2.59 mm)
Overall: 0.37" (9.4 mm) | | Impedance | 75 Ohms | | DC Resistance | Coaxial: 41 Ohms/1,000 ft (134 Ohm/km)
Shielded Pair: 15.3 Ohms/1,000 ft (50.2 Ohm/km) | | Capacitance | 16 pF/ft | | Velocity of Propagation | 83% | | Voltage | 150 V RMS | | Temperature | 21 to 167°F (-6 to 75°C) | | Regulatory | UL: CL2P
CSA: CMP, FT6
NEC: In accordance with article 725
RoHS: In compliance with European directive 2002/95/IEC, issue 13.2.2003 | | Connector 1 | 15-Pin VGA, male
3.5 mm Mini, male | | Connector 2 | 45° 15-Pin VGA, male
3.5 mm Mini, male | | Length | 35' (10.66 m) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 10.9 x 2.2 x 0.2" |
